User manual for the Fujinon HA16x6.3BERM-M6 ENG Style Lens HA16X6.3BERM-M6

The user manual for the Fujinon HA16x6.3BERM-M6 ENG Style Lens HA16X6.3BERM-M6 provides necessary instructions for the proper use of the product Professional Video - Lenses & Lens Accessories - Professional Lenses.

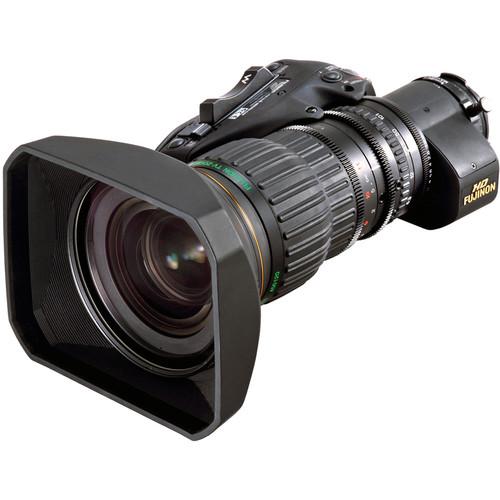

The Fujinon HA16x6.3BERM-M6 ENG Style Lens with Servo Zoom is a 6.3-101mm lens, designed to provide 2/3" cameras with a wide to telephone angle-of-view. The lens has a zoom ratio of 16x, and a 2x extender effectively doubles the focal range. The maximum aperture is a fast f/1.8 at 6.3-63mm and stops down to f/2.9 at 101mm. A servo for zoom control is also included.

Internal focusing minimizes the effects of lens breathing, which ensures a more consistent angle-of-view when making focus adjustments. With the push of a button, QuickZoom facilitates a rapid shift to the telephoto end of the lens to check focus. Releasing the button automatically returns the lens to the previously selected focal length. Zoom Limit purposefully constrains the focal range to only desirable focal lengths. Finally, the Focused Intelligent Network Diagnosis (FIND) system aids in preventive maintenance and troubleshooting by evaluating various electronic and mechanical parameters.
If you own a Fujinon professional lenses and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Fujinon HA16x6.3BERM-M6 ENG Style Lens HA16X6.3BERM-M6 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Fujinon HA16x6.3BERM-M6 ENG Style Lens HA16X6.3BERM-M6:
Format 2/3" sensors
Focal Length 6.3 - 101 mm
Zoom Ratio 16x
Extender 2x
Maximum Aperture 6.3 - 63 mm: f/1.8 (T1.9)
101 mm: f/2.9 (T3.1)
M.O.D. From Image Plane 2.26' (0.69 m)
M.O.D. from Front of Lens 1.31' (0.4 m)
Object Dimensions at M.O.D. (16:9) 6.3 mm: 712 x 400 mm
101 mm: 45 x 25 mm
Angular Field of View (16:9) 6.3 mm: 74°33' x 46°19'
101 mm: 5°26' x 3°03'
Filter Thread M107 x 1
Note: filter attaches to the lens hood
Dimensions 3.74 x 9.39" (95 x 238.5 mm)
Note: without lens hood
Weight approx. 4.36 lb (1.98 kg)
Note: without lens hood
The user manual for the Fujinon HA16x6.3BERM-M6 ENG Style Lens HA16X6.3BERM-M6 can be downloaded in .pdf format if it did not come with your new professional lenses, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Fujinon users keep a unique electronic library for Fujinon professional lensess, where you can use our link to download the user manual for the Fujinon HA16x6.3BERM-M6 ENG Style Lens HA16X6.3BERM-M6.

The user manual lists all of the functions of the Fujinon HA16x6.3BERM-M6 ENG Style Lens HA16X6.3BERM-M6, all the basic and advanced features and tells you how to use the professional lenses. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Fujinon service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Fujinon HA16x6.3BERM-M6 ENG Style Lens HA16X6.3BERM-M6. User manuals are also available on the Fujinon website under Professional Video - Lenses & Lens Accessories - Professional Lenses.
