User manual Fujinon HA42X13.5BERD-U48 13.5-570mm HA42X13.5BERD-U48 SUPP

Operating instructions and pdf manual for use - Fujinon HA42X13.5BERD-U48 13.5-570mm HA42X13.5BERD-U48 SUPP User manual, User manual Fujinon HA42X13.5BERD-U48 13.5-570mm HA42X13.5BERD-U48 SUPP, Fujinon, HA42X13.5BERD-U48, 13.5-570mm, HA42X13.5BERD-


User manual for Fujinon HA42X13.5BERD-U48 13.5-570mm HA42X13.5BERD-U48 SUPP

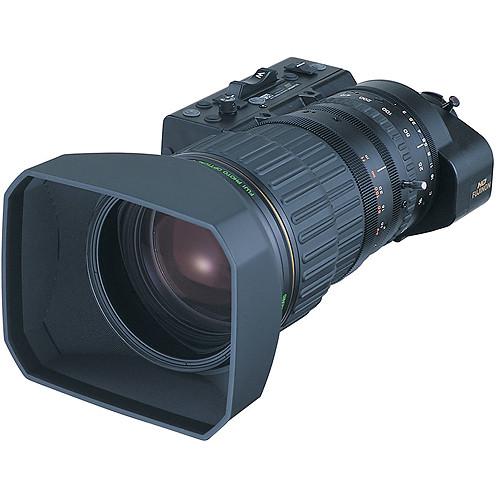

Fujinon HA42X13.5BERD-U48 13.5-570mm HA42X13.5BERD-U48 SUPP
  • Manufacturer: Fujinon
  • Basic description and contents of package
  • Product classification: Professional Video - Lenses & Lens Accessories - Professional Lenses
  • Safety instructions
  • Startup and operation of the professional lenses
  • Tips for setting up your Fujinon
  • Settings and expert assistance
  • Contact Fujinon service
  • Troubleshooting
  • Warranty information
  • Price: 80 USD
We recommend checking out our discussion threads on the Fujinon HA42X13.5BERD-U48 13.5-570mm HA42X13.5BERD-U48 SUPP, which address similar problems with connecting and setting up Professional Lenses Fujinon.



User manual for the Fujinon HA42X13.5BERD-U48 13.5-570mm HA42X13.5BERD-U48 SUPP

The user manual for the Fujinon HA42X13.5BERD-U48 13.5-570mm HA42X13.5BERD-U48 SUPP provides necessary instructions for the proper use of the product Professional Video - Lenses & Lens Accessories - Professional Lenses.

The 13.5-570mm f/2.8-5.2 Premier 2/3" ENG/EFP Bayonet Lens is a telephoto lens for ENG and EFP applications. The large 42x zoom range lets you to cover your subject over longer distances, such as from the back of a large theater or from the mezzanine in an arena. The 2x Extender doubles your focal length so you can achieve tighter framing on your subject.
If you own a Fujinon professional lenses and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Fujinon HA42X13.5BERD-U48 13.5-570mm HA42X13.5BERD-U48 SUPP in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Fujinon HA42X13.5BERD-U48 13.5-570mm HA42X13.5BERD-U48 SUPP:
Lens
Focal Length Without 2x Extender
13.5 - 570 mm

With 2x Extender
27 - 1440 mm
Maximum Aperture f/2.8 (T3.0) @ 13.5-307 mm
f/5.2 (T5.6) @ 570 mm
Zoom Range 42x
Filter Size M127 x 0.75
Minimum Object Distance (M.O.D.) 10.5' / 3.2 m from image plane
9.2' / 2.8 m from front of lens
Object Dimensions at M.O.D. (16:9) Without 2x Extender
6.2 x 3.5' / 1888 x 1061 mm @ 13.5 mm
1.8 x 1" / 45 x 25 mm @ 570 mm

With 2x Extender
3.1 x 1.7' / 944 x 530 mm @ 27 mm
0.9 x 0.5" / 22 x 13mm @ 1440 mm
Angular Field of View (16:9) Without 2x Extender
39°07' x 22°35' @ 13.5 mm
0°58' x 0°33' @ 570 mm

With 2x Extender
20°08' x 11°24' @ 27 mm
0°29' x 0°16' @ 1140 mm
General Attributes
Environmental RoHS Compliant
Diameter x Length (w/o lens hood) 5.1 x 14.1" / 130 x 359 mm
Weight 11.9 lb / 5.4 kg
The user manual for the Fujinon HA42X13.5BERD-U48 13.5-570mm HA42X13.5BERD-U48 SUPP can be downloaded in .pdf format if it did not come with your new professional lenses, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Fujinon users keep a unique electronic library for Fujinon professional lensess, where you can use our link to download the user manual for the Fujinon HA42X13.5BERD-U48 13.5-570mm HA42X13.5BERD-U48 SUPP.

The user manual lists all of the functions of the Fujinon HA42X13.5BERD-U48 13.5-570mm HA42X13.5BERD-U48 SUPP, all the basic and advanced features and tells you how to use the professional lenses. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Fujinon service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Fujinon HA42X13.5BERD-U48 13.5-570mm HA42X13.5BERD-U48 SUPP. User manuals are also available on the Fujinon website under Professional Video - Lenses & Lens Accessories - Professional Lenses.



Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Fujinon HA42X13.5BERD-U48 13.5-570mm HA42X13.5BERD-U48 SUPP

Post new comment to Fujinon HA42X13.5BERD-U48 13.5-570mm HA42X13.5BERD-U48 SUPP

Subject: User Manual for HA42x13.5
Date: 28.11.2020 20:23:36Author: Jean Curtes
Hello, Is it possible to get the user manual for Fujinon HA42x13.5 BERD-U48
Thank you
Reply

Subject: Support User
Date: 12.10.2017 07:48:00Author: Marc Nguyen
Please send me manual of fujinon HA42X13.5BERD-U48
Reply
