User manual Fujinon XA20sx8.5BERM-K3 ENG Lens XA20SX8.5BERM-K3

Operating instructions and pdf manual for use - Fujinon XA20sx8.5BERM-K3 ENG Lens XA20SX8.5BERM-K3 User manual, User manual Fujinon XA20sx8.5BERM-K3 ENG Lens XA20SX8.5BERM-K3, Fujinon, XA20sx8.5BERM-K3, ENG, Lens, XA20SX8.5BERM-K3,


User manual for Fujinon XA20sx8.5BERM-K3 ENG Lens XA20SX8.5BERM-K3

Fujinon XA20sx8.5BERM-K3 ENG Lens XA20SX8.5BERM-K3
  • Manufacturer: Fujinon
  • Basic description and contents of package
  • Product classification: Professional Video - Lenses & Lens Accessories - Professional Lenses
  • Safety instructions
  • Startup and operation of the professional lenses
  • Tips for setting up your Fujinon
  • Settings and expert assistance
  • Contact Fujinon service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Fujinon XA20sx8.5BERM-K3 ENG Lens XA20SX8.5BERM-K3, which address similar problems with connecting and setting up Professional Lenses Fujinon.



User manual for the Fujinon XA20sx8.5BERM-K3 ENG Lens XA20SX8.5BERM-K3

The user manual for the Fujinon XA20sx8.5BERM-K3 ENG Lens XA20SX8.5BERM-K3 provides necessary instructions for the proper use of the product Professional Video - Lenses & Lens Accessories - Professional Lenses.

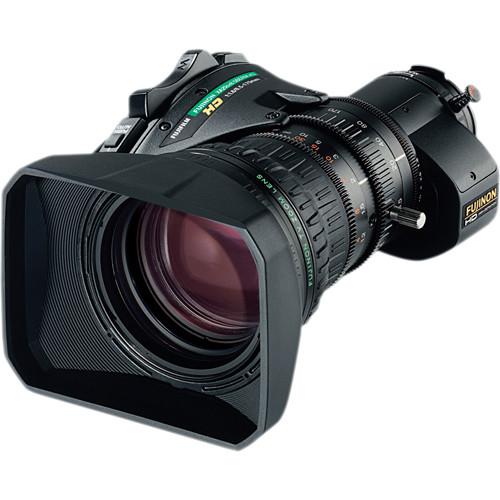

The Fujinon XA20sx8.5BERM-K3 ENG Lens is a 8.5-170mm lens, designed to provide 2/3" format cameras with a wide to super telephoto angle-of-view. The lens has a 20x zoom ratio, and a 2x extender effectively doubles the focal range. An ergonomic, digital servo zoom control is also included.

Internal focusing minimizes the effects of lens breathing, which ensures a more consistent focal length when adjusting focus. Fujinon's QuickZoom technology improves zoom speed to 0.7 seconds end to end. With the push of a button, QuickZoom facilitates a rapid shift to the telephoto end to check focus. Releasing the button automatically returns the lens to the previously selected focal length.
If you own a Fujinon professional lenses and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Fujinon XA20sx8.5BERM-K3 ENG Lens XA20SX8.5BERM-K3 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Fujinon XA20sx8.5BERM-K3 ENG Lens XA20SX8.5BERM-K3:
Format 2/3"
Focal Length 8.5 - 170 mm
Zoom Range 20x
Extender x2
Maximum Aperture 8.5 - 113 mm: f/1.8
170 mm: f/2.7
M.O.D. From Image Plane 3.61' (1.1 m)
M.O.D. from Front of Lens 2.95' (0.9 m)
Object Dimensions at M.O.D. (16:9) 8.5 mm: 35.82 x 20.12" (910 x 511 mm)
170 mm: 1.85 x 1.02" (47 x 26 mm)
Angular Field of View (16:9) 8.5 mm: 58°51' x 35°11'
170 mm: 3°14' x 1°49'
Filter Thread M82 x 0.75
Dimensions 3.34 x 7.08" (85 x 180.8 mm)
Note: without lens hood
Weight 3.48 lb (1.58 kg))
Note: without lens hood
Packaging Info
Package Weight 5.35 lb
Box Dimensions (LxWxH) 12.9 x 9.4 x 7.8"
The user manual for the Fujinon XA20sx8.5BERM-K3 ENG Lens XA20SX8.5BERM-K3 can be downloaded in .pdf format if it did not come with your new professional lenses, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Fujinon users keep a unique electronic library for Fujinon professional lensess, where you can use our link to download the user manual for the Fujinon XA20sx8.5BERM-K3 ENG Lens XA20SX8.5BERM-K3.

The user manual lists all of the functions of the Fujinon XA20sx8.5BERM-K3 ENG Lens XA20SX8.5BERM-K3, all the basic and advanced features and tells you how to use the professional lenses. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Fujinon service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Fujinon XA20sx8.5BERM-K3 ENG Lens XA20SX8.5BERM-K3. User manuals are also available on the Fujinon website under Professional Video - Lenses & Lens Accessories - Professional Lenses.
