User manual Fujitsu fi-7160 Document Scanner PA03670-B055

Operating instructions and pdf manual for use - Fujitsu fi-7160 Document Scanner PA03670-B055 User manual, User manual Fujitsu fi-7160 Document Scanner PA03670-B055, Fujitsu, fi-7160, Document, Scanner, PA03670-B055, Video


User manual for Fujitsu fi-7160 Document Scanner PA03670-B055

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Fujitsu  fi-7160 Document Scanner PA03670-B055
  • Manufacturer: Fujitsu
  • Basic description and contents of package
  • Product classification: Photography - Scanners - Flatbed & Document Scanners
  • Safety instructions
  • Startup and operation of the flatbed & document scanners
  • Tips for setting up your Fujitsu
  • Settings and expert assistance
  • Contact Fujitsu service
  • Troubleshooting
  • Warranty information
  • Price: 870 USD
We recommend checking out our discussion threads on the Fujitsu fi-7160 Document Scanner PA03670-B055, which address similar problems with connecting and setting up Flatbed & Document Scanners Fujitsu.



User manual for the Fujitsu fi-7160 Document Scanner PA03670-B055

The user manual for the Fujitsu fi-7160 Document Scanner PA03670-B055 provides necessary instructions for the proper use of the product Photography - Scanners - Flatbed & Document Scanners.

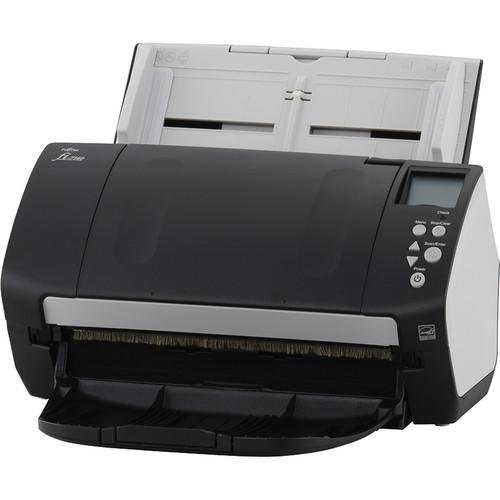

The Fujitsu fi-7160 Document Scanner provides color scanning at speeds of up to 60 pages per minute or 120 images per minute with A4-sized documents. It is designed to be placed on a desktop for convenient placement in a home or small office setting. Also, its 80-page automatic document feeder allows you to leave the scanner unattended for periods of time.

With dual CCD sensors, the fi-7160 features an optical resolution of 600 dpi. This results in high quality color, black and white, or monochrome images to be produced. Additionally, this scanner can output images at up to 1200 dpi with a 24-bit color depth.

The fi-7160 has the ability to handle documents from 2.0 x 2.1" all the way up to 8.5 x 220" with the long document feature. There is also a double feed detection sensor to ensure that no documents are missed. Along with the scanner, PaperStream IP and PaperStream Capture are included for quick and easy integration of the fi-7160 into your workflow.
If you own a Fujitsu flatbed & document scanners and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Fujitsu fi-7160 Document Scanner PA03670-B055 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Fujitsu  fi-7160 Document Scanner PA03670-B055Download user manual for Fujitsu fi-7160 Document Scanner PA03670-B055
(PDF file, 16.86 MB)
Additional parameters of the Fujitsu fi-7160 Document Scanner PA03670-B055:
Specifications
    Scan Quality
    Scanner Type Automatic document feeder
    Sensor Type 2 x Color CCD
    Optical Resolution 600 dpi
    Output Resolution 50-600 dpi, 1200 dpi
    Color Depth Color: 24-bit
    Grayscale: 8-bit
    Monochrome: 1-bit
    Light Source 2 x White LED array
    Internal Video Processing 65,536 levels (16-bit)
    Performance
    Scanning Mode Duplex or Simplex
    Color, Grayscale or Monochrome
    Scan Speed Simplex: 60 ppm in color, grayscale, or monochrome at 200 or 300 dpi
    Duplex: 120 ipm in color, grayscale, or monochrome at 200 or 300 dpi
    Batch Scanning 80 sheet ADF (Letter/A4-sized, 20 lb or 80 gsm)
    Document Size Minimum Size: 2.0 x 2.1" (5.1 x 5.4 cm)
    Maximum Size: 8.5 x 14.0" (21.6 x 35.6 cm)
    Long Document: 8.5 x 220.0" (21.6 x 558.8 cm)
    Normal Weight: 7.2-112.0 lb (27-413 gsm)
    A8 Sheets: 34-56 lb (127-209 gsm) Plastic Card: 1.4 mm or less
    Duplex Mode Yes
    Daily Duty Scan (Sheets) 4,000
    Other Features Dropout color (R, G, B), Deskew cropping, Multi-image, Auto color, Black page skip, i-DTC, Advanced-DTC, Simplified-DTC, Error diffusion, Dither, Moire removal, Image emphasis, Color cleanup, Dropout color (None, Specified, Color saturation), sRGB, Punch hole removal, Tab cropping, Upper lower separation
    Connectivity
    Interface USB 3.0/2.0 (B-type connector)
    Software Driver PaperStream IP (TWAIN/ISIS) driver, Software Operation Panel, Error Recovery Guide, PaperStream Capture, ScanSnap Manager for fi Series, Scan to Microsoft SharePoint, ABBYY FineReader for ScanSnap, Scanner Central Admin Agent
    System & Software Requirements Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), Server 2012 (64-bit), Server 2008 (32/64-bit), or Windows XP (32/64-bit)
    Physical
    Operating Conditions Temperature: 42 to 95°F (5 to 35°C)
    Relative Humidity: 20-80%, non-condensing
    Environmental Compliance ENERGY STAR and RoHS
    Power Requirements 100-240 V AC ±10%
    Power Consumption Operating: 38 W
    Sleep: 1.8 W
    Off: 0.4 W
    Dimensions (WxDxH) 11.8 x 6.7 x 6.4" (30.0 x 17.0 x 16.3 cm)
    Installation Space: 15.8 x 27.6 x 15.0 cm)
    Weight 9.3 lb (4.2 kg)
    Packaging Info
    Package Weight 13.3 lb
    Box Dimensions (LxWxH) 18.0 x 12.1 x 9.9"
    The user manual for the Fujitsu fi-7160 Document Scanner PA03670-B055 can be downloaded in .pdf format if it did not come with your new flatbed & document scanners, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Fujitsu users keep a unique electronic library for Fujitsu flatbed & document scannerss, where you can use our link to download the user manual for the Fujitsu fi-7160 Document Scanner PA03670-B055.

    The user manual lists all of the functions of the Fujitsu fi-7160 Document Scanner PA03670-B055, all the basic and advanced features and tells you how to use the flatbed & document scanners. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Fujitsu service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Fujitsu fi-7160 Document Scanner PA03670-B055. User manuals are also available on the Fujitsu website under Photography - Scanners - Flatbed & Document Scanners.
