User manual Hikvision 16-Channel 1080p Triple Hybrid DS-7316HQHI-SH-9TB

Operating instructions and pdf manual for use - Hikvision 16-Channel 1080p Triple Hybrid DS-7316HQHI-SH-9TB User manual, User manual Hikvision 16-Channel 1080p Triple Hybrid DS-7316HQHI-SH-9TB, Hikvision, 16-Channel, 1080p, Triple, Hybrid, DS-7316H


User manual for Hikvision 16-Channel 1080p Triple Hybrid DS-7316HQHI-SH-9TB

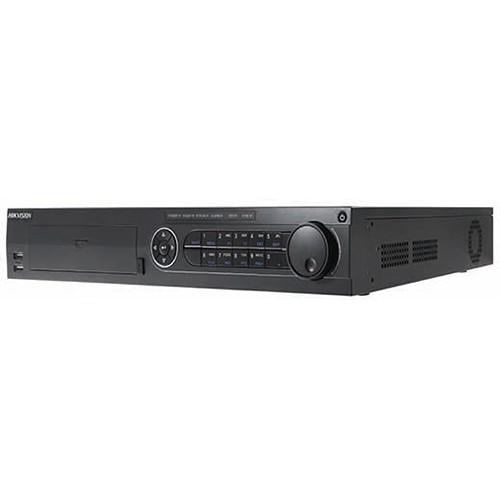

Hikvision 16-Channel 1080p Triple Hybrid DS-7316HQHI-SH-9TB
  • Manufacturer: Hikvision
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Digital Video Recorders (DVRs)
  • Safety instructions
  • Startup and operation of the digital video recorders (dvrs)
  • Tips for setting up your Hikvision
  • Settings and expert assistance
  • Contact Hikvision service
  • Troubleshooting
  • Warranty information
Hikvision 16-Channel 1080p Triple Hybrid DS-7316HQHI-SH-9TB Hikvision 16-Channel 1080p Triple Hybrid DS-7316HQHI-SH-9TB Hikvision 16-Channel 1080p Triple Hybrid DS-7316HQHI-SH-9TB Hikvision 16-Channel 1080p Triple Hybrid DS-7316HQHI-SH-9TB Hikvision 16-Channel 1080p Triple Hybrid DS-7316HQHI-SH-9TB Hikvision 16-Channel 1080p Triple Hybrid DS-7316HQHI-SH-9TB Hikvision 16-Channel 1080p Triple Hybrid DS-7316HQHI-SH-9TB Hikvision 16-Channel 1080p Triple Hybrid DS-7316HQHI-SH-9TB Hikvision 16-Channel 1080p Triple Hybrid DS-7316HQHI-SH-9TB
Click to enlarge image

We recommend checking out our discussion threads on the Hikvision 16-Channel 1080p Triple Hybrid DS-7316HQHI-SH-9TB, which address similar problems with connecting and setting up Digital Video Recorders (DVRs) Hikvision.



User manual for the Hikvision 16-Channel 1080p Triple Hybrid DS-7316HQHI-SH-9TB

The user manual for the Hikvision 16-Channel 1080p Triple Hybrid DS-7316HQHI-SH-9TB provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Digital Video Recorders (DVRs).

Featuring HD-TVI BNC inputs, which allow sending uncompressed, high-resolution video over coaxial cable, Hikvision's 16-Channel 1080p Triple Hybrid Turbo HD DVR bridges the gap between analog and IP camera signals by allowing users to run IP-quality images over existing coaxial infrastructure. The HD-TVI inputs also support standard analog cameras, so keep your infrastructure and record from standard definition up to 1080p signals in real-time on all 16 channels.

Turbo HD supports up to four SATA interface HDDs, each at up to 4TB. Export data via SATA, eSATA, or USB. Output via HDMI and VGA (in up to 1080p), and CVBS. Turbo HD is also capable of dual-streaming and up to 16-channel synchronous playback at 1080p.
If you own a Hikvision digital video recorders (dvrs) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Hikvision 16-Channel 1080p Triple Hybrid DS-7316HQHI-SH-9TB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Hikvision 16-Channel 1080p Triple Hybrid DS-7316HQHI-SH-9TB:
Specifications
Video Compression H.264
Analog & HD-TVI Video Input 8x BNC interface (1.0 Vp-p, 75 ohm)
Supported Camera Types 720p25, 720p30, 720p50, 720p60, 1080p25, 1080p30, CVBS
Audio Compression G.711u
Audio Input 4 x RCA (2.0 Vp-p, 1 Kohm)
Two-Way Audio Input 1 x RCA (2.0 Vp-p, 1 Kohm)
HDMI / VGA Output 1920 × 1080 at 60 Hz, 1280 × 1024 at 60 Hz, 1280 × 720 at 60 Hz, 1024 × 768 at 60 Hz
CVBS Output 1 x BNC (1.0 Vp-p, 75 ohm)
NTSC Resolution: 704 × 480, PAL Resolution: 704 × 576
Encoding Resolution Main Stream: 1080p, 720p, VGA, 4CIF, CIF
Sub-Stream: WD1 (non-real-time), 4CIF (non-real-time), CIF, QCIF, QVGA
Frame Rate Main Stream: 1/16 fps ~ real-time frame rate
Sub-Stream: 1/16 fps ~ real-time frame rate
Video Bit Rate 32 Kbps to 10 Mbps
Audio Bit Rate 64 Kbps
Dual Streaming Yes
Stream Type Video, Video & Audio
Synchronous Playback 16 channels
Playback Resolution 1080p, 720p, VGA, WD1, 4CIF, CIF, QVGA, QCIF
Remote Network Connections 128
Network Protocols TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
Storage 4 SATA interfaces for 4 HDDs (up to 4 TB each)
1 eSATA interface
9 TB HDD pre-installed
Network Interface 1x 10M / 100M / 1000M self-adaptive Ethernet interface
Serial Interface RS-232, RS-485, Keyboard
USB Ports 3 x USB 2.0
Alarm Input / Output 16 / 4
Power Supply 100 - 240 VAC, 47 - 63 Hz
Power Consumption ≤55 W (without hard disks)
Operating Temperature 14 to 131°F (-10 to 55°C)
Operating Humidity 10 to 90%
Chassis 19" rack-mounted 1.5U chassis
Dimensions 17.5 × 15.3 × 2.7" (45 x 39 x 7 cm)
Weight 11 lb (5 kg)
The user manual for the Hikvision 16-Channel 1080p Triple Hybrid DS-7316HQHI-SH-9TB can be downloaded in .pdf format if it did not come with your new digital video recorders (dvrs), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Hikvision users keep a unique electronic library for Hikvision digital video recorders (dvrs)s, where you can use our link to download the user manual for the Hikvision 16-Channel 1080p Triple Hybrid DS-7316HQHI-SH-9TB.

The user manual lists all of the functions of the Hikvision 16-Channel 1080p Triple Hybrid DS-7316HQHI-SH-9TB, all the basic and advanced features and tells you how to use the digital video recorders (dvrs). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Hikvision service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Hikvision 16-Channel 1080p Triple Hybrid DS-7316HQHI-SH-9TB. User manuals are also available on the Hikvision website under Surveillance - Surveillance Video - Digital Video Recorders (DVRs).
