User manual Galaxy Audio DS-SP36 3 x 6 Speaker Processor DS-SP36

Operating instructions and pdf manual for use - Galaxy Audio DS-SP36 3 x 6 Speaker Processor DS-SP36 User manual, User manual Galaxy Audio DS-SP36 3 x 6 Speaker Processor DS-SP36, Galaxy, Audio, DS-SP36, 3, x, 6, Speaker, Processor, DS-SP36,


User manual for Galaxy Audio DS-SP36 3 x 6 Speaker Processor DS-SP36

Galaxy Audio DS-SP36 3 x 6 Speaker Processor DS-SP36
  • Manufacturer: Galaxy Audio
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - System Processors
  • Safety instructions
  • Startup and operation of the system processors
  • Tips for setting up your Galaxy Audio
  • Settings and expert assistance
  • Contact Galaxy Audio service
  • Troubleshooting
  • Warranty information
  • Price: 600 USD
We recommend checking out our discussion threads on the Galaxy Audio DS-SP36 3 x 6 Speaker Processor DS-SP36, which address similar problems with connecting and setting up System Processors Galaxy Audio.



User manual for the Galaxy Audio DS-SP36 3 x 6 Speaker Processor DS-SP36

The user manual for the Galaxy Audio DS-SP36 3 x 6 Speaker Processor DS-SP36 provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - System Processors.

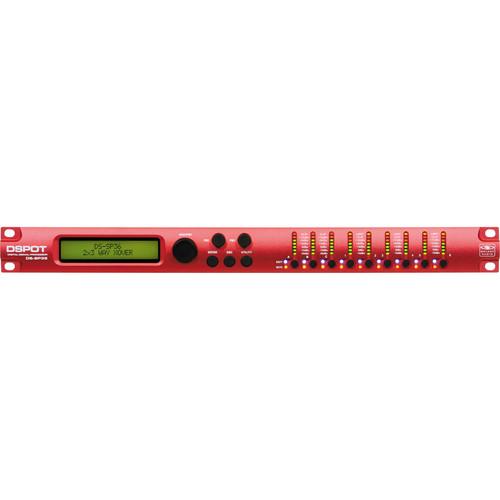

The Galaxy Audio DSPOT DS-SP36 3 x 6 Speaker Processor is designed for setting crossover frequencies and distributing an audio signal across the parts of a speaker system for installed and portable live sound reinforcement applications. The 1RU rackmountable digital signal processor features three balanced XLR analog inputs, a stereo digital SPDIF input, and six balanced XLR analog outputs.

Each input can be processed with five assignable parametric or shelving filters. Each output has five assignable parametric or shelving filters. The unit also offers high pass and low pass filtering with a slope of up to 24 dB per octave for crossovers as well as an RMS limiter on each output and polarity reversal. Each input and output offers an adjustable delay of up to 850 ms with steps of 22 microseconds which makes it possible to time align and configure a loudspeaker system within a space. Additionally, each input and output can have a custom name assigned to it.

The unit can be controlled via the front panel LCD display control interface, via RS-485 serial control, or via USB connection to an external PC. Control software is available via an included CD or via download from the manufacturer's website.
If you own a Galaxy Audio system processors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Galaxy Audio DS-SP36 3 x 6 Speaker Processor DS-SP36 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Galaxy Audio DS-SP36 3 x 6 Speaker Processor DS-SP36:
Specifications
    Inputs 3x XLR-3F balanced analog
    1x stereo digital SPDIF
    1x RS485
    1x USB type A port
    Input Level +20 dBu max
    Outputs 6x XLR-3M balanced analog
    1x RS485
    Output Level +20 dBu max
    DSP SAM3716, 24-bits (data) x 96-bits (coefficient)
    A/D Converters AKM5392, 24-bits
    D/A Converters AKM4396, 24-bits
    Sampling Frequency 48 kHz
    SPDIF 32 kHz, 44.1 to 48 kHz sources accepted
    Delay 850 ms
    22 us
    S/N Ratio 110 dBA
    THD + N 0.005%
    Frequency Response 20 to 20,000 Hz ±1 dB
    Power Supply Switching power supply
    Remote Control USB, RS485
    Dimensions (DxWxH) 9.25 x 19.0 x 1.75" (235 x 483 x 44.5 mm)
    Weight 6.3 lb (2.9 kg)
    Packaging Info
    Package Weight 7.0 lb
    Box Dimensions (LxWxH) 24.0 x 14.0 x 6.0"
    The user manual for the Galaxy Audio DS-SP36 3 x 6 Speaker Processor DS-SP36 can be downloaded in .pdf format if it did not come with your new system processors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Galaxy Audio users keep a unique electronic library for Galaxy Audio system processorss, where you can use our link to download the user manual for the Galaxy Audio DS-SP36 3 x 6 Speaker Processor DS-SP36.

    The user manual lists all of the functions of the Galaxy Audio DS-SP36 3 x 6 Speaker Processor DS-SP36, all the basic and advanced features and tells you how to use the system processors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Galaxy Audio service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Galaxy Audio DS-SP36 3 x 6 Speaker Processor DS-SP36. User manuals are also available on the Galaxy Audio website under Pro Audio - Installation Sound - System Processors.
