User manual Galaxy Audio Galaxy Audio ALS-RMBPR-4 Assistive ALS-RMBPR-4-EC2

Operating instructions and pdf manual for use - Galaxy Audio Galaxy Audio ALS-RMBPR-4 Assistive ALS-RMBPR-4-EC2 User manual, User manual Galaxy Audio Galaxy Audio ALS-RMBPR-4 Assistive ALS-RMBPR-4-EC2, Galaxy, Audio, Galaxy, Audio, ALS-RMBPR-4, Ass


User manual for Galaxy Audio Galaxy Audio ALS-RMBPR-4 Assistive ALS-RMBPR-4-EC2

Galaxy Audio Galaxy Audio ALS-RMBPR-4 Assistive ALS-RMBPR-4-EC2
  • Basic description and contents of package
  • Product classification: A/V Presentation - Assistive Listening - Assistive Listening Systems
  • Safety instructions
  • Startup and operation of the assistive listening systems
  • Tips for setting up your
  • Settings and expert assistance
  • Contact service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Galaxy Audio Galaxy Audio ALS-RMBPR-4 Assistive ALS-RMBPR-4-EC2, which address similar problems with connecting and setting up Assistive Listening Systems .



User manual for the Galaxy Audio Galaxy Audio ALS-RMBPR-4 Assistive ALS-RMBPR-4-EC2

The user manual for the Galaxy Audio Galaxy Audio ALS-RMBPR-4 Assistive ALS-RMBPR-4-EC2 provides necessary instructions for the proper use of the product A/V Presentation - Assistive Listening - Assistive Listening Systems.

The ALS-RMBPR-4 Assistive Listening System with AS-EC2 earcups from Galaxy Audio is designed to aid with hearing in loud or noisy environments, as well as help facilitate the translation of a speech or presentation into another language that is to be broadcasted to listeners. It is intended for use in conference rooms, hotels, museums, houses of worship, rental houses, manufacturing facilities, guided tours, and more.

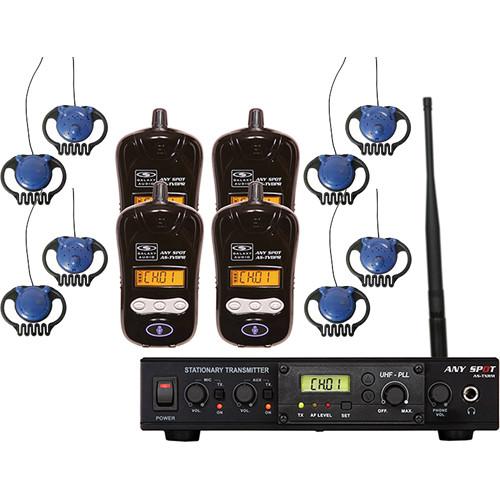

The ALS-RMBPR-4 Assistive Listening Table Top Kit consists of an AS-TXRM table top transmitter which includes 96 switchable channels, easily identified along with other system functions on its LCD display. The transmitter includes an RF and AF indicator and a volume control.

The AS-TVBPR body pack receiver is designed to be lightweight and compact for easier portability. It features soft touch buttons, an LCD display, and a rechargeable lithium battery. The receiver includes contacts for an optional cradle charger and a removable belt clip, and also has both line and headphone outputs. The system comes complete with four AS-EC2 ear cups, which are blue, and are fitted with rubber to wrap around the ear for a more comfortable fit, with 1/8" (3.5mm) angled plugs. Other ear cups in the AS-EC series may be used in this system as well, and are available for purchase.

The TG Series ALS-RMBPR-4 can be used with an optional AS-TVH2 handheld microphone or AS-TVBPT Pendant Style Body Pack transmitter, and additional AS-TVBPR receivers can be purchased either individually or in a 5-pack.
If you own a assistive listening systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Galaxy Audio Galaxy Audio ALS-RMBPR-4 Assistive ALS-RMBPR-4-EC2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Galaxy Audio Galaxy Audio ALS-RMBPR-4 Assistive ALS-RMBPR-4-EC2:
Specifications
    Bodypack Transmitter
    Model Number AS-TVBPR
    Frequency Range UHF 640 to 664 MHz
    Number of Selectable Frequencies Pre-programmed 96 switchable
    Case Plastic
    Oscillator PLL synthesized
    Receiving Mode PLL single channel
    Sensitivity Sinad > 20 dB @ Ear.out:500 mV
    RF = - 105 dBm
    f = 1 kHz
    Mod = 14 kHz
    Aux Output Level @1k Ohm
    300 mV 2RF = - 60 dBm
    f = 1 kHz
    Mod = 14 kHz
    Earphone Output 1.4V @ VR max.
    RF = - 60 dBm
    f = 1 kHz
    Mod = 14 kHz
    THD <1% @ Ear. out: 500 mV
    Signal / Noise >60 dB @ with AS-TVBPR
    f = 1 kHz
    MIC IN = - 30 dBv
    Frequency Response Aux. 70 Hz to 12 kHz
    Ear. 100Hz to 12 kHz
    Tone Squelch Frequency 38 kHz
    Operating Range High: > 50 M
    Low: > 30 M
    Earphone Out 3.5 mm TRS
    AUX Outputs 1, 3.5 mm TRS
    Built-in Speaker 8 Ohm / 1 W
    Battery Li-ion 3.7 V 1200 mAh
    Battery Life (approx.) 3 to 4 hours
    LCD Display Channel
    Frequency
    Battery
    Dimensions (W x D x H) 2.0 x 1.4 x 3.9" (52 x 36 x 99 mm)
    Weight 3.5 oz (100 g)
    Tabletop Transmitter
    Model AS-TXRM
    RF Output 10 mW
    Display Capability LCD indicates channel and frequency
    Channel Selectivity SET
    UP
    DOWN
    Dimensions (W x D x H) 8.3 x 8.5 x 2.0" (21.0 x 21.5 x 5.1 cm)
    Weight 2.8 lb (1.3 kg)
    Packaging Info
    Package Weight 2.0 lb
    Box Dimensions (LxWxH) 17.0 x 13.0 x 6.0"
    The user manual for the Galaxy Audio Galaxy Audio ALS-RMBPR-4 Assistive ALS-RMBPR-4-EC2 can be downloaded in .pdf format if it did not come with your new assistive listening systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other users keep a unique electronic library for assistive listening systemss, where you can use our link to download the user manual for the Galaxy Audio Galaxy Audio ALS-RMBPR-4 Assistive ALS-RMBPR-4-EC2.

    The user manual lists all of the functions of the Galaxy Audio Galaxy Audio ALS-RMBPR-4 Assistive ALS-RMBPR-4-EC2, all the basic and advanced features and tells you how to use the assistive listening systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Galaxy Audio Galaxy Audio ALS-RMBPR-4 Assistive ALS-RMBPR-4-EC2. User manuals are also available on the website under A/V Presentation - Assistive Listening - Assistive Listening Systems.
