User manual for the Garner PD-5 Multiple Hard Drive Destroyer Package DDR-25SSD

The user manual for the Garner PD-5 Multiple Hard Drive Destroyer Package DDR-25SSD provides necessary instructions for the proper use of the product Professional Video - Tapes & Digital Media - Degaussers & Erasers.

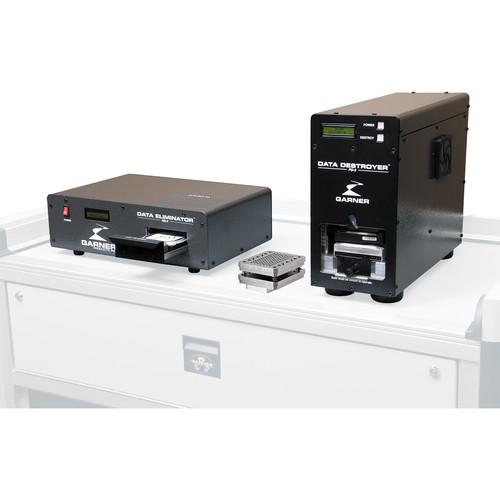

The PD-5 Multiple Hard Drive Destroyer Package with HD-2 Hard Drive & Tape Degausser from Garner provides a secure way to ensure sensitive data is properly handled according to NSA standards. The package includes the PD-5 Multiple Hard Drive Destroyer with the SSD-1 Solid State/Flash Destroyer Accessory, the HD-2 Hard Drive & Tape Degausser, the SW-2 Secure Workstation, two color-coded bins, and a recycling container.

The PD-5 Multiple Hard Drive Destroyer has an LCD display, a 9 second cycle for two standard hard drives and the included SSD-1 adds an SSD/Flash Media destruction insert. The PD-5's chassis, motor, and all main components are aluminum and completely recyclable. It has a very unique operation with its automatic High-Torque Sensor that allows the crushing wedge to move at high speed to the media and then optimize speed for maximum crushing power. The PD-5 automatically destroys all formats and sizes of hard drives including Network SCSI and IDE Drives up to 1.66" in height. Since the PD-5 doesn't rely on software, all working and non-working hard drives put in the chamber will be destroyed in just 9 seconds. A simple push of a button will ensure complete hard drive destruction. The included SSD-1 Solid State Destroyer sanitizes solid state media such as SSD, Flash, Compact Flash, USB drives, and controller boards for hybrid HDD's. Over 90 pins pierce the solid state media from top and bottom causing both perforation and waffling, which destroys the individual memory chips.

The HD-2 Hard Drive & Tape Degausser erases hard drives (laptop, desktop and network up to 1.5" high) and high coercivity tape media, including all formats of LTO (1,2,3, and 4), SuperDLT I & II, DLT, AIT, 8mm, and more, all without any adapters. With a continuous duty rating (no cooling necessary), quiet operation, and a 60 second cycle time, the HD-2 can fit right on a desktop. The degausser is user-friendly: simply place your media into the drawer on the right side of the HD-2, push the "Erase" button, and within 60 seconds your media is erased. The HD-2 has been independently tested and certified to meet both ANSI and CE standards. Built-in safeguards check the stored power before each erase cycle ensuring complete erasure every time. Audible tones and lighted push buttons report the status of the HD-2 to the operator. The HD-2 produces an erasing field many times stronger than the erasing fields produced by the read/write heads in hard drives and tape drives. The field strength along with the encompassing magnetic field ensures the data is no longer recoverable by computer or laboratory attacks. Since the HD-2 does not rely on software, it will completely and permanently erase failed and damaged hard drives regardless of the operating system or interface.
If you own a Garner degaussers & erasers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Garner PD-5 Multiple Hard Drive Destroyer Package DDR-25SSD in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Garner PD-5 Multiple Hard Drive Destroyer Package DDR-25SSD:
General
Power Supply 100-240 V ±5%, 50 or 60 Hz
Power Consumption 1.5 A Operating, 7 A Max @ 120 VAC
Operating Time Crushing: 9 seconds
Operating Temperature 41 to 104 °F (5 to 40 °C)
Operating Humidity 10 to 80% (non-condensing)
Dimensions 18.0 x 7.0 x 14.5" (45.0 x 17.8 x 36.8 cm)
Weight 72 lb (32.7 kg)
Accessories
Dimensions Destruction Chamber: 0.5 x 3.0 x 5.0" (1.3 x 7.6 x 12.7 cm)
Overall Dimensions: 2.75 x 5.00 x 6.35" (6.99 x 12.70 x 16.13 cm)
Weight 8.5 lb (3.9 kg)
General
System Capacitive discharge
Erasure Time: 60 second repetitive cycle
Magnetic Field Strength 8,300 Oe, 0.83 Tesla
Media Type Hard drives up to 1.5" high including full height, standard, and laptop drives; tape cartridges including DLT, LTO, 8mm, and more
Duty Cycle Continuous
Certifications CE, ANSI
Power Requirements 120 VAC ±5%, 50/60 Hz
Power Consumption Standby: 0.2 A
Charging: 4.0 A < 1 second
Erasing: 0.5 A
Operating Temperature 41 to 104°F (5 to 40°C)
Operating Humidity 10 to 40% (without condensation)
Dimensions Overall: 12.25 x 17.50 x 5.25" (31.12 x 44.45 x 13.34 cm)
Erasing Area: 1.50 x 4.50 x 6.75" (3.81 x 11.43 x 17.15 cm)
Weight 34 lb (15.5 kg)
