User manual for the GeChic 1502I 15.6" IPS LCD Touch Monitor 1502I

The user manual for the GeChic 1502I 15.6" IPS LCD Touch Monitor 1502I provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

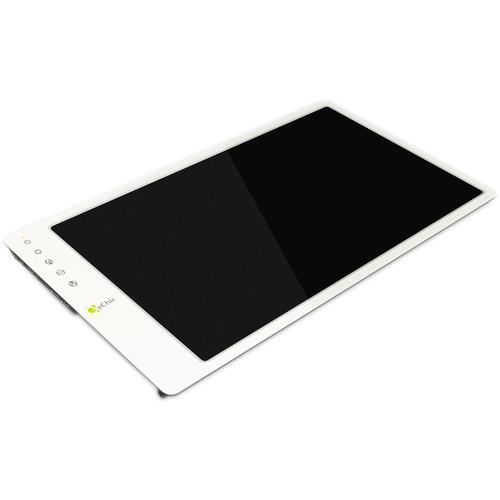

The 1502I 15.6" IPS LCD Touch Monitor from GeChic is a compact, full high definition 1920 x 1080 resolution display with a capacitive touch screen that is compatible with Windows 8, 7, and select Android devices. It offers 10-point multi-touch input for elaborate touch capabilities as well as a 220 cd/m² brightness and 160° horizontal and vertical viewing angles on each side due to in-plane switching technology. The monitor itself is designed for mobile use with an extremely thin 0.4" thick design. Also, it has two 1W speakers for audio.

Connectivity with this monitor is done through multiple ports available on the side. There are inputs for a VGA connection for use with an optional cable, an HDMI cable, USB input for power and touch, and a 3.5mm headphone jack. Also, this model includes a charger for connecting the monitor to a wall as well as the Stand 4 for 4 different viewing positions. The monitor is compatible with 100 x 100mm VESA mounts.
If you own a GeChic computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the GeChic 1502I 15.6" IPS LCD Touch Monitor 1502I in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for GeChic 1502I 15.6Download user manual for GeChic 1502I 15.6" IPS LCD Touch Monitor 1502I
(PDF file, 3.21 MB)
Additional parameters of the GeChic 1502I 15.6" IPS LCD Touch Monitor 1502I:
Panel/Display
Type TFT IPS LED
Viewable Size 15.6" (39.6 cm)
Brightness 220 cd/m²
Contrast Ratio 400:1
Viewing Angle 80°/80°/80°/80°
Pixel Dot Pitch 0.179 mm
Response Time 17.5 ms
Colors Supported 262,000
Surface Treatment Touch Screen Hardness: ≥7H
Anti-Glare Film: 3H
Signal
Frequency Horizontal: 30-83 kHz
Vertical: 56-76 Hz
Resolution 1920 x 1080 at 60 Hz
Video Format 480p, 576p, 720p, 1080p, 480i, 576i, 1080i
Input/Output Connectors
Analog VGA with optional adapter
Digital Micro HDMI
microUSB for touch and power
Headphone Jack Yes, 3.5 mm
Speakers 2 x 1W (Impedance: 8 Ω at 2 kHz)
Mount 100 x 100 mm VESA mount compatible
Physical
Touch Screen Projected capacitive touch screen with 10-point multi-touch
Touch Point Diameter: ≥6.5 mm
Compliant Standards HDCP
System Requirements Windows 7, 8
Android 2.0, 2.1, 2.2, 2.3, 4.0 (Kernel 26.32 or later) with required driver
Power Requirements 5 VDC, 1.8 A
Charger: 5 VDC, 2.0 A
Dimensions (WxHxD) 16.9 x 9.8 x 0.4" (43.0 x 24.8 x 1.0 cm)
Weight 3.0 lb (1.35 kg)
Packaging Info
Package Weight 6.15 lb
Box Dimensions (LxWxH) 20.63 x 12.992 x 2.756"
