User manual Gefen DVI KVM over IP Receiver with Four USB EXT-DVIKVM-LAN-LRX

Operating instructions and pdf manual for use - Gefen DVI KVM over IP Receiver with Four USB EXT-DVIKVM-LAN-LRX User manual, User manual Gefen DVI KVM over IP Receiver with Four USB EXT-DVIKVM-LAN-LRX, Gefen, DVI, KVM, over, IP, Receiver, with, Fou


User manual for Gefen DVI KVM over IP Receiver with Four USB EXT-DVIKVM-LAN-LRX

Gefen DVI KVM over IP Receiver with Four USB EXT-DVIKVM-LAN-LRX
  • Manufacturer: Gefen
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Computer Peripherals - DVI/VGA KVM Extenders
  • Safety instructions
  • Startup and operation of the dvi/vga kvm extenders
  • Tips for setting up your Gefen
  • Settings and expert assistance
  • Contact Gefen service
  • Troubleshooting
  • Warranty information
  • Price: 388 USD
We recommend checking out our discussion threads on the Gefen DVI KVM over IP Receiver with Four USB EXT-DVIKVM-LAN-LRX, which address similar problems with connecting and setting up DVI/VGA KVM Extenders Gefen.



User manual for the Gefen DVI KVM over IP Receiver with Four USB EXT-DVIKVM-LAN-LRX

The user manual for the Gefen DVI KVM over IP Receiver with Four USB EXT-DVIKVM-LAN-LRX provides necessary instructions for the proper use of the product Computers & Solutions - Computer Peripherals - DVI/VGA KVM Extenders.

The Gefen DVI KVM over IP Receiver with Four USB Ports connects to any Gefen KVM Transmitter (sold separately) and extends a DVI signal, along with USB, RS-232, and audio, 328 ft over CAT5/6. It supports input/output resolutions up to 1080p and 1920 x 1200 WUXGA. Using an optional Gigabit switch, you can configure a multipoint matrix of up to 65,000 transmitter/receiver units in total. The Gigabit switch must support 8k jumbo frame packets in order to support multipoint mode. A free web server interface is available on the Gefen website for quick system set-ups and firmware upgrades.

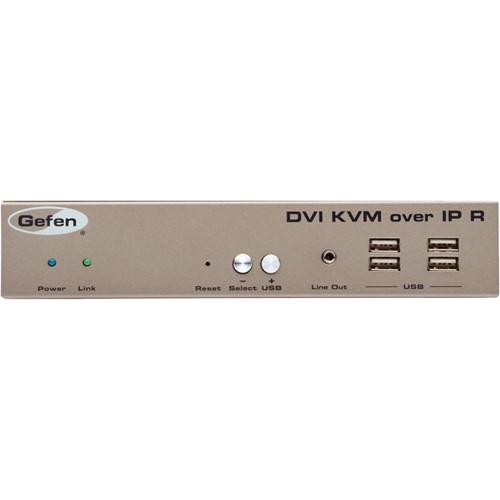

A total of three RJ-45 ports are available, one for the signals transmitted and two offering network connectivity. Four USB 2.0 ports are located on the front panel for connecting computer peripherals. An audio line out outputs independent audio from the transmitter. An L-shaped mounting bracket is included.
If you own a Gefen dvi/vga kvm extenders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Gefen DVI KVM over IP Receiver with Four USB EXT-DVIKVM-LAN-LRX in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Gefen DVI KVM over IP Receiver with Four USB EXT-DVIKVM-LAN-LRX:
Specifications
    Maximum Pixel Clock 165 MHz
    Input 3x RJ-45, shielded
    1x RS-232 DB-9, male
    USB Device Support 4x USB 2.0 Type A, female, 500 mA
    Output 1x DVI, 29-pin, female
    1x 3.5 mm mini-stereo line out
    Resolutions Supported Up to 1080p and 1920 x 1200
    Transmission Distance 328 ft (100 m) by CAT5/6
    Power Supply 5 VDC, locking (included)
    Power Consumption 10 W (max)
    Dimensions 8.4 x 1.7 x 4.5" (21.3 x 4.3 x 11.3 cm)
    Weight Approx. 2 lb (.9 kg)
    Packaging Info
    Package Weight 3.85 lb
    Box Dimensions (LxWxH) 13.4 x 8.3 x 3.7"
    The user manual for the Gefen DVI KVM over IP Receiver with Four USB EXT-DVIKVM-LAN-LRX can be downloaded in .pdf format if it did not come with your new dvi/vga kvm extenders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Gefen users keep a unique electronic library for Gefen dvi/vga kvm extenderss, where you can use our link to download the user manual for the Gefen DVI KVM over IP Receiver with Four USB EXT-DVIKVM-LAN-LRX.

    The user manual lists all of the functions of the Gefen DVI KVM over IP Receiver with Four USB EXT-DVIKVM-LAN-LRX, all the basic and advanced features and tells you how to use the dvi/vga kvm extenders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Gefen service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Gefen DVI KVM over IP Receiver with Four USB EXT-DVIKVM-LAN-LRX. User manuals are also available on the Gefen website under Computers & Solutions - Computer Peripherals - DVI/VGA KVM Extenders.
