User manual Gefen Long-Range 5GHz Wireless Extender EXT-WHD-1080P-LR-EU
Operating instructions and pdf manual for use - Gefen Long-Range 5GHz Wireless Extender EXT-WHD-1080P-LR-EU User manual, User manual Gefen Long-Range 5GHz Wireless Extender EXT-WHD-1080P-LR-EU, Gefen, Long-Range, 5GHz, Wireless, Extender, EXT-WHD-1
User manual for Gefen Long-Range 5GHz Wireless Extender EXT-WHD-1080P-LR-EU
Manufacturer: Gefen
Basic description and contents of package
Product classification: TVs & Entertainment - Switchers, Extenders & Wireless - HDMI Signal Extenders
Safety instructions
Startup and operation of the hdmi signal extenders
Tips for setting up your Gefen
Settings and expert assistance
Contact Gefen service
Troubleshooting
Warranty information
Price: 449 USD
Click to enlarge image
We recommend checking out our discussion threads on the Gefen Long-Range 5GHz Wireless Extender EXT-WHD-1080P-LR-EU,
which address similar problems with connecting and setting up HDMI Signal Extenders Gefen.
User manual for the Gefen Long-Range 5GHz Wireless Extender EXT-WHD-1080P-LR-EU
The user manual for the Gefen Long-Range 5GHz Wireless Extender EXT-WHD-1080P-LR-EU provides
necessary instructions for the proper use of the product TVs & Entertainment - Switchers, Extenders & Wireless - HDMI Signal Extenders.

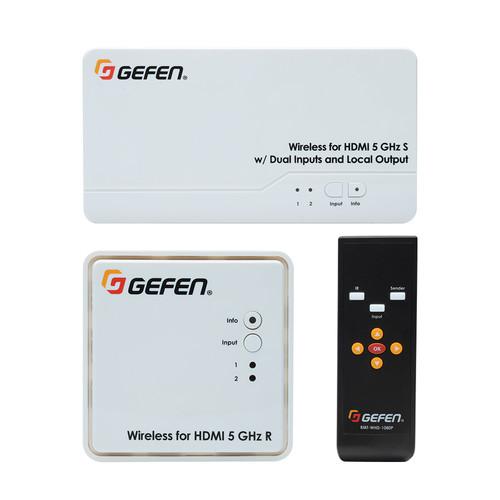

The Long-Range 5GHz Wireless Extender System for HDMI from Gefen is a long-range extender system comprised of a sender (transmitter) and a receiver, sending high-definition audio and video to any HDTV display up to 100' away. It extends HDCP-compliant HDMI A/V content from computers, game consoles, set-top boxes, Blu-ray players, and other A/V sources to a remotely located display. HD resolutions up to 1080p Full HD, 7.1-channels of LPCM digital audio, and 5.1 channels of Dolby or DTS formats are supported.

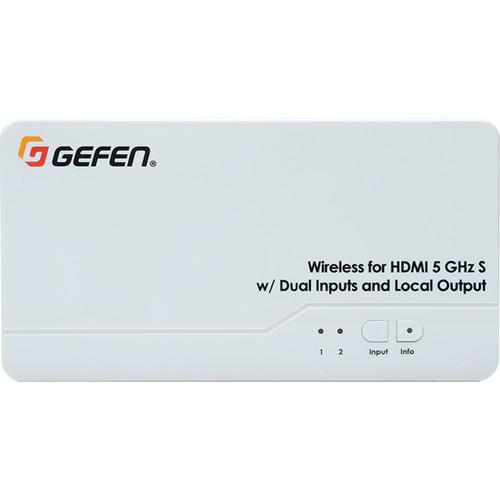

The small and low-profile receiver unit includes a wired IR extender module, and can be hidden away behind the display or inside an equipment cabinet if needed. The sender features two HDMI inputs and an HDMI output for connection to a local display. The end-user can select between the two HDMI sources by using the included handheld IR remote or by pressing the input button on the sender or the receiver unit. The included IR emitter array can be connected to the sender unit and attached to the IR sensor windows of the two HD sources, allowing full control of the source unit from another room simply by pointing the IR remote of the source at the receiver unit. Both units can be attached to a standard 1/4"-20 camera tripod mount, wall mounted, or be placed on a shelf.
The long-range extender system can transmit through walls and does not require line-of-sight placement of its transceivers, making it suitable for high-definition A/V extension in a conference room, classroom, auditorium, home theater, and multi-room A/V installations that feature multiple sources and two displays. This model is configured for Europe with channels 5.19 GHz and 5.230 GHz. This product features firmware update using the Gefen Syner-G Software Suite, available for download from the manufacturer's website.
If you own a Gefen hdmi signal extenders and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Gefen Long-Range 5GHz Wireless Extender EXT-WHD-1080P-LR-EU in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Gefen Long-Range 5GHz Wireless Extender EXT-WHD-1080P-LR-EU:
Specifications
Transmission Range
Up to 100' (30 m)
Channels
5.19 GHz and 5.230 GHz
Supported Transmitters
Maximum: 8
Supported Resolution
Up to 1080p Full HD
Connectors
Transmitter: 2 x 19-pin Type-A HDMI female, video input 1 x 19-pin Type-A HDMI female, video output 1 x 3.5 mm DC power jack, power input Receiver: 1 x 19-pin Type-A HDMI female, video output 1 x Mini-USB Type-B, power input
Transmitter: 7.2 x 1.3 x 3.9" (18.2 x 3.3 x 9.8 cm) Receiver: 3.8 x 1.4 x 3.8" (9.5 x 3.5 x 9.5 cm)
Weight
Transmitter: 0.5 lb (227 g) Receiver: 4.8 oz (136.1 g)
Wireless Extender for HDMI 5GHz Short Range
The user manual for the Gefen Long-Range 5GHz Wireless Extender EXT-WHD-1080P-LR-EU can be downloaded in .pdf
format if it did not come with your new hdmi signal extenders, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Gefen users keep a unique electronic library
for Gefen hdmi signal extenderss,
where you can use our link to download the user manual for the Gefen Long-Range 5GHz Wireless Extender EXT-WHD-1080P-LR-EU.
The user manual lists all of the functions of the Gefen Long-Range 5GHz Wireless Extender EXT-WHD-1080P-LR-EU,
all the basic and advanced features and tells you how to use the hdmi signal extenders.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Gefen service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Gefen Long-Range 5GHz Wireless Extender EXT-WHD-1080P-LR-EU. User manuals are also
available on the Gefen website under TVs & Entertainment - Switchers, Extenders & Wireless - HDMI Signal Extenders.
