User manual for the Gefen Long-Range 5GHz Wireless Extender System EXT-WHD-1080P-LR
The user manual for the Gefen Long-Range 5GHz Wireless Extender System EXT-WHD-1080P-LR provides
necessary instructions for the proper use of the product TVs & Entertainment - Switchers, Extenders & Wireless - HDMI Signal Extenders.

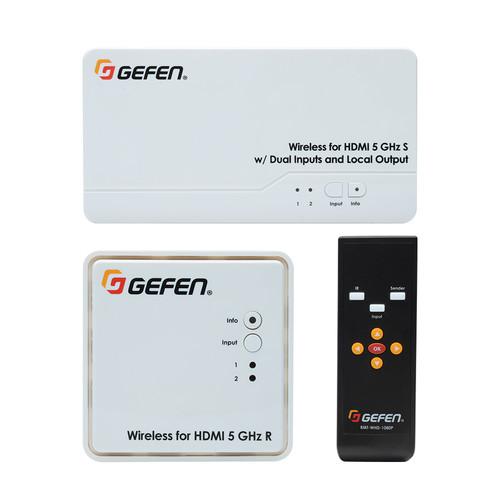

The Long-Range 5GHz Wireless Extender System for HDMI from Gefen is a long-range extender system comprised of a sender (transmitter) and a receiver, sending high-definition audio and video to any HDTV display up to 100' away. It extends HDCP-compliant HDMI A/V content from computers, game consoles, set-top boxes, Blu-ray players, and other A/V sources to a remotely located display. HD resolutions up to 1080p Full HD, 7.1-channels of LPCM digital audio, and 5.1 channels of Dolby or DTS formats are supported.

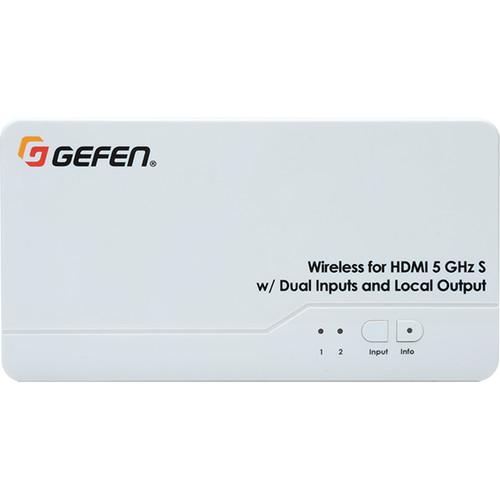

The small and low-profile receiver unit includes a wired IR extender module, and can be hidden away behind the display or inside an equipment cabinet if needed. The sender features two HDMI inputs and an HDMI output for connection to a local display. The end-user can select between the two HDMI sources by using the included handheld IR remote or by pressing the input button on the sender or the receiver unit. The included IR emitter array can be connected to the sender unit and attached to the IR sensor windows of the two HD sources, allowing full control of the source unit from another room simply by pointing the IR remote of the source at the receiver unit. Both units can be attached to a standard 1/4"-20 camera tripod mount, wall mounted, or be placed on a shelf.
The long-range extender system can transmit through walls and does not require line-of-sight placement of its transceivers, making it suitable for high-definition A/V extension in a conference room, classroom, auditorium, home theater, and multi-room A/V installations that feature multiple sources and two displays. This model is configured for the United States with channels 5.19 GHz, 5.230 GHz, 5.755 GHz, and 5.795 GHz. This product features firmware update using the Gefen Syner-G Software Suite, available for download from the manufacturer's website.
If you own a Gefen hdmi signal extenders and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Gefen Long-Range 5GHz Wireless Extender System EXT-WHD-1080P-LR in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Gefen Long-Range 5GHz Wireless Extender System EXT-WHD-1080P-LR:
Specifications
Transmission Range
Up to 100' (30 m)
Channels
5.19 GHz, 5.230 GHz, 5.755 GHz, and 5.795 GHz
Supported Transmitters
Maximum: 8
Supported Resolution
Up to 1080p Full HD
Connectors
Transmitter: 2 x 19-pin Type-A HDMI female, video input 1 x 19-pin Type-A HDMI female, video output 1 x 3.5 mm DC power jack, power input Receiver: 1 x 19-pin Type-A HDMI female, video output 1 x Mini-USB Type-B, power input
