User manual for Gefen Short-Range 5GHz Wireless Extender EXT-WHD-1080P-SR-EU

Gefen Short-Range 5GHz Wireless Extender EXT-WHD-1080P-SR-EU
  • Manufacturer: Gefen
  • Basic description and contents of package
  • Product classification: TVs & Entertainment - Switchers, Extenders & Wireless - HDMI Signal Extenders
  • Safety instructions
  • Startup and operation of the hdmi signal extenders
  • Tips for setting up your Gefen
  • Settings and expert assistance
  • Contact Gefen service
  • Troubleshooting
  • Warranty information
  • Price: 399 USD
Gefen Short-Range 5GHz Wireless Extender EXT-WHD-1080P-SR-EU Gefen Short-Range 5GHz Wireless Extender EXT-WHD-1080P-SR-EU Gefen Short-Range 5GHz Wireless Extender EXT-WHD-1080P-SR-EU Gefen Short-Range 5GHz Wireless Extender EXT-WHD-1080P-SR-EU
Click to enlarge image

We recommend checking out our discussion threads on the Gefen Short-Range 5GHz Wireless Extender EXT-WHD-1080P-SR-EU, which address similar problems with connecting and setting up HDMI Signal Extenders Gefen.



User manual for the Gefen Short-Range 5GHz Wireless Extender EXT-WHD-1080P-SR-EU

The user manual for the Gefen Short-Range 5GHz Wireless Extender EXT-WHD-1080P-SR-EU provides necessary instructions for the proper use of the product TVs & Entertainment - Switchers, Extenders & Wireless - HDMI Signal Extenders.

The Short-Range 5GHz Wireless Extender System for HDMI from Gefen is a short-range extender system comprised of a sender (transmitter) and a receiver, sending high-definition audio and video to any HDTV display up to 33' away. It extends HDCP-compliant HDMI A/V content from computers, game consoles, set-top boxes, Blu-ray players, and other A/V sources to a remotely located display. HD resolutions up to 1080p Full HD, 7.1-channels of LPCM digital audio, and 5.1 channels of Dolby or DTS formats are supported.

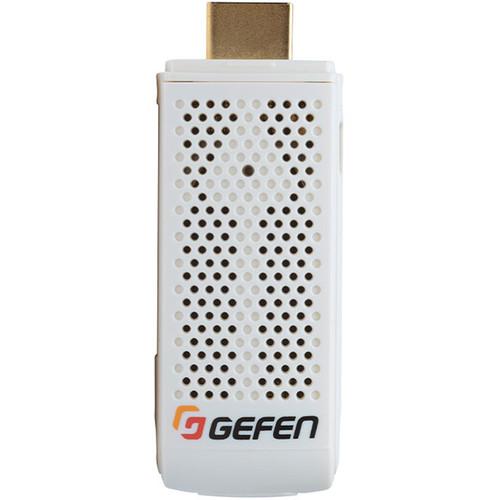

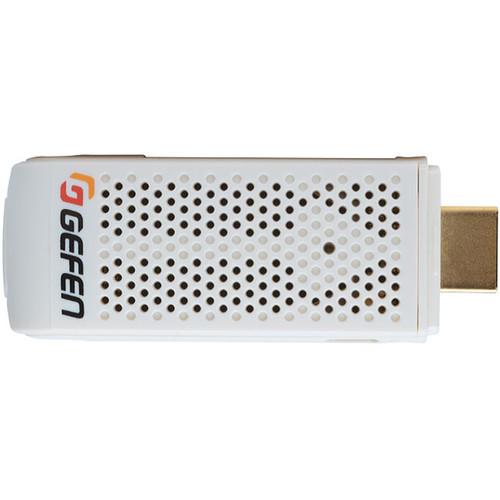

The receiver unit connects to a display with an HDMI input, using the supplied HDMI cable. It can be attached to a standard 1/4"-20 camera tripod mount, wall mounted using two keyhole slots, or be placed on a shelf. Thanks to its small size, low profile, and the included wired IR extender module, it can be hidden away behind the display or inside an equipment cabinet if needed. The small "stick" sender connects directly to an HDMI port, and can be powered either from a powered USB port or from the included power supply. It is suitable for high-definition A/V extension in a conference room or home theater installation that requires occasional connection of portable devices such as a presentation laptop computer or a video camera.
While the short-range extender system can transmit through obstacles and does not require line-of-sight placement of its transceivers, it is optimized for shorter distances that are typical of in-room use. This model is configured for Europe with channels 5.19 GHz and 5.230 GHz. This product features firmware update using the Gefen Syner-G Software Suite, available for download from the manufacturer's website.
If you own a Gefen hdmi signal extenders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Gefen Short-Range 5GHz Wireless Extender EXT-WHD-1080P-SR-EU in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Gefen Short-Range 5GHz Wireless Extender EXT-WHD-1080P-SR-EU:
Specifications
Transmission Range Up to 33' (10 m)
Channels 5.19 GHz and 5.230 GHz
Supported Transmitters Maximum: 8
Supported Resolution Up to 1080p Full HD
Connectors Transmitter:
1 x 19-pin Type-A HDMI male, video input
1 x Mini-USB Type-B, power input
Receiver:
1 x 19-pin Type-A HDMI male, video output
1 x Mini-USB Type-B, power input
Encryption AES 128
Latency Less than 1 frame
Compliance HDCP, WHDI 1.0, FCC Part 15, IC, and ETSI
Power Consumption Transmitter: 3 W, maximum
Receiver: 6 W, maximum
Power Supplies 2 x 5 VDC 2A, with USB Type-A connector
Temperature Operating: 32 - 104°F (0 - 40°C)
Storage: 14 - 140°F (-10 - 60°C)
Relative Humidity Operating: 10 - 85%, non-condensing
Storage: 5 - 90%, non-condensing
Dimensions Transmitter: 1.2 x 0.7 x 3.2" (3.0 x 1.6 x 8.0 cm)
Receiver: 3.8 x 1.4 x 3.8" (9.5 x 3.5 x 9.5 cm)
Weight Transmitter: 1.0 oz (27.2 g)
Receiver: 4.8 oz (136.1 g)
Wireless Extender for HDMI 5GHz Long Range
The user manual for the Gefen Short-Range 5GHz Wireless Extender EXT-WHD-1080P-SR-EU can be downloaded in .pdf format if it did not come with your new hdmi signal extenders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Gefen users keep a unique electronic library for Gefen hdmi signal extenderss, where you can use our link to download the user manual for the Gefen Short-Range 5GHz Wireless Extender EXT-WHD-1080P-SR-EU.

The user manual lists all of the functions of the Gefen Short-Range 5GHz Wireless Extender EXT-WHD-1080P-SR-EU, all the basic and advanced features and tells you how to use the hdmi signal extenders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Gefen service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Gefen Short-Range 5GHz Wireless Extender EXT-WHD-1080P-SR-EU. User manuals are also available on the Gefen website under TVs & Entertainment - Switchers, Extenders & Wireless - HDMI Signal Extenders.
