User manual Gefen ToolBox 4x1 Switcher for HDMI 4K x 2K GTB-HD4K2K-441-BLK

Operating instructions and pdf manual for use - Gefen ToolBox 4x1 Switcher for HDMI 4K x 2K GTB-HD4K2K-441-BLK User manual, User manual Gefen ToolBox 4x1 Switcher for HDMI 4K x 2K GTB-HD4K2K-441-BLK, Gefen, ToolBox, 4x1, Switcher, HDMI, 4K, x, 2K,


User manual for Gefen ToolBox 4x1 Switcher for HDMI 4K x 2K GTB-HD4K2K-441-BLK

Gefen ToolBox 4x1 Switcher for HDMI 4K x 2K GTB-HD4K2K-441-BLK
  • Manufacturer: Gefen
  • Basic description and contents of package
  • Product classification: Professional Video - Signal Processing & Distribution - Routers & Switchers
  • Safety instructions
  • Startup and operation of the routers & switchers
  • Tips for setting up your Gefen
  • Settings and expert assistance
  • Contact Gefen service
  • Troubleshooting
  • Warranty information
  • Price: 404 USD
We recommend checking out our discussion threads on the Gefen ToolBox 4x1 Switcher for HDMI 4K x 2K GTB-HD4K2K-441-BLK, which address similar problems with connecting and setting up Routers & Switchers Gefen.



User manual for the Gefen ToolBox 4x1 Switcher for HDMI 4K x 2K GTB-HD4K2K-441-BLK

The user manual for the Gefen ToolBox 4x1 Switcher for HDMI 4K x 2K GTB-HD4K2K-441-BLK provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Routers & Switchers.

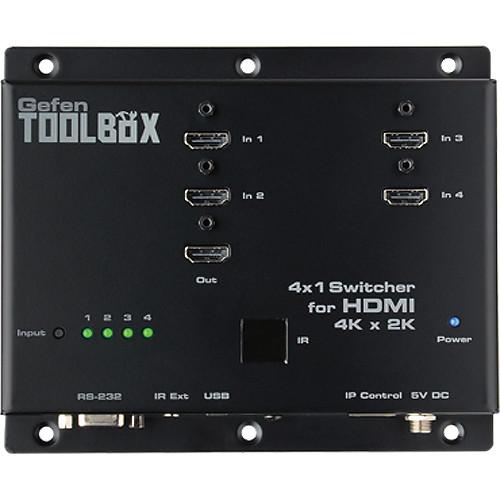

The black Gefen ToolBox 4x1 Switcher for HDMI 4K x 2K is a compact and lightweight surface-mountable HDMI switcher that allows up to four Ultra HD or 1080p sources to be routed to one Ultra HD display. The matrix supports resolutions up to 3840x2160 at 30p. Deep Color, 3DTV pass-through, and lossless audio formats such as LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio are also supported. The switcher is ideal for home theater systems, multi-room installations, retail establishments, sports bars, schools, hospitals, lobbies, or any installation where multi-source Ultra HD HDCP-compliant content needs to be routed a display.

Connect up to four Ultra HD or HD sources to the HDMI inputs on the switcher using HDMI cables. Each HD source can be routed to the display using the front panel push-button, IR remote control, RS-232, Telnet, UDP, or web server interface. LED indicators on the top panel display the current switching status. A power supply with locking cable comes included.
If you own a Gefen routers & switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Gefen ToolBox 4x1 Switcher for HDMI 4K x 2K GTB-HD4K2K-441-BLK in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Gefen ToolBox 4x1 Switcher for HDMI 4K x 2K GTB-HD4K2K-441-BLK:
Maximum Pixel Clock 300 MHz
Maximum Resolution 3840 x 2160 / 30p
HDMI Input Connectors 4 x Type A 19-pin female, locking
HDMI Output Connectors 1 x Type A 19-pin female, locking
USB Port 1 x Mini-B
RS-232 Serial Port 1 x DB-9, female
Ethernet Port 1 x RJ-45
LED Indicators Power: 1 x LED, blue
Switching: 4 x LED, green
Buttons 1 x switching selector, tact-type push-button
IR Sensor On front panel
IR Extender Port 1 x 3.5 mm mini-stereo jack
Power Connector Locking
Power Supply 5 VDC
Power Consumption 13 W, maximum
Operating Temperature 32 to 104°F (0 to 40°C)
Dimensions (W x H x D) 6.9 x 5.8 x 1.0" (17.5 x 14.7 x 2.6 cm)
Packaging Info
Package Weight 2.2 lb
Box Dimensions (LxWxH) 13.386 x 8.425 x 3.701"
The user manual for the Gefen ToolBox 4x1 Switcher for HDMI 4K x 2K GTB-HD4K2K-441-BLK can be downloaded in .pdf format if it did not come with your new routers & switchers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Gefen users keep a unique electronic library for Gefen routers & switcherss, where you can use our link to download the user manual for the Gefen ToolBox 4x1 Switcher for HDMI 4K x 2K GTB-HD4K2K-441-BLK.

The user manual lists all of the functions of the Gefen ToolBox 4x1 Switcher for HDMI 4K x 2K GTB-HD4K2K-441-BLK, all the basic and advanced features and tells you how to use the routers & switchers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Gefen service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Gefen ToolBox 4x1 Switcher for HDMI 4K x 2K GTB-HD4K2K-441-BLK. User manuals are also available on the Gefen website under Professional Video - Signal Processing & Distribution - Routers & Switchers.
