User manual for the Genelec 8330 2.1 Surround Sound System 8330.LSE TRIPLE SAM

The user manual for the Genelec 8330 2.1 Surround Sound System 8330.LSE TRIPLE SAM provides necessary instructions for the proper use of the product Pro Audio - Recording - Studio Monitors.

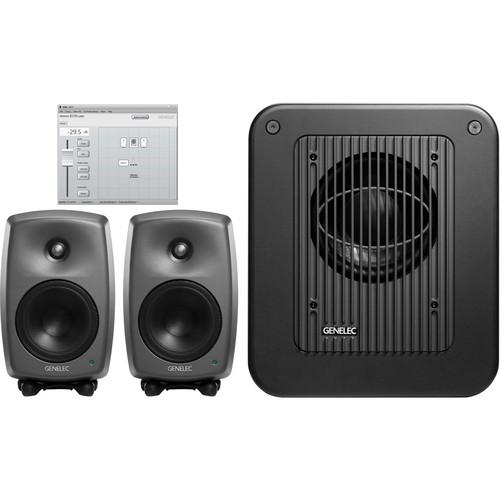

The 8330 2.1 Surround Sound System from Genelec is a 2.1-channel Smart Active Monitor speaker system designed for professional studio applications. It consists of two 8330A monitors, a 7350A subwoofer, a GLM 2.0 user kit, and a 9310A volume controller.

The 8330A SAM Studio Monitor is a compact high-resolution two-way monitor designed for professional applications. It features Genelec Smart Active Monitor (SAM) technology, as well as Genelec Directivity Control Waveguide (DCW) and Minimum Diffraction Enclosure (MDE) technologies, a flow-optimized reflex port, high SPL, and wide uncolored response. The monitor uses floating point DSP engines for signal processing and Genelec-designed class-D amplifiers within its die-cast aluminum body.

The 7350A SAM Studio Subwoofer is a compact Smart Active Monitoring subwoofer for use in professional studio and broadcasting environments. The 7350A uses floating point DSP engines for signal processing within its die-cast aluminum body. The subwoofer features an integrated class-D power amplifier that outputs 150W with low THD and IM distortion. Driver overload, amplifier thermal overload, and driver short circuit protections are integrated into the amplifier electronics. It also features an 8" low-frequency driver housed in a Laminar Spiral Enclosure (LSE) bass reflex cabinet, providing low cut-off and clean, articulated bass reproduction.

The GLM 2.0 User Kit is an accessories kit designed for Genelec's GLM 2.0 networking system. It includes a GLM network adapter, a microphone with a holder, a USB cable, and a GLM network cable. The GLM 2.0 Loudspeaker Manager Software is available for download with the purchase of a GLM 2.0 User Kit. GLM 2.0 is a monitor control networking system that manages connectivity with up to 30 SAM studio monitors and subwoofers. The GLM software is compatible with Windows and Mac and features level adjustment, distance delays, and flexible room response compensation equalization with the AutoCal automated calibration system.

The 9310A Volume Controller provides wired volume control for all SAM studio monitors and subwoofers linked to the GLM 2.0 Network Adapter via the software volume fader. The controller connects to the GLM 2.0 interface using a built-in 3.5mm stereo male connector.
If you own a Genelec studio monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Genelec 8330 2.1 Surround Sound System 8330.LSE TRIPLE SAM in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Genelec 8330 2.1 Surround Sound System 8330.LSE TRIPLE SAM:
Specifications
    • 2 x
      8330A SAM Studio Monitor
      Maximum Sound Pressure Level (SPL) 104 dB
      Frequency Response 45 Hz to 23 kHz @ -6 dB
      Frequency Response Accuracy ±1.5 dB (58 Hz to 20 kHz)
      Crossover Frequency 3.0 kHz
      Drivers 1 x 5.0" / 13.0 cm magnetically-shielded cone woofer
      1 x 0.75" / 1.9 cm magnetically-shielded metal dome tweeter
      Amplifier Power Woofer: 50 W
      Tweeter: 50 W
      Connectors 1 x XLR analog input
      1 x XLR AES/EBU input
      1 x XLR AES/EBU output
      2 x RJ-45 control network
      Dimensions With Stand: 11.8 x 7.4 x 7.0" / 29.9 x 18.9 x 17.8 cm
      Weight 12.1 lb / 5.5 kg
    • 7350A SAM Studio Subwoofer
      Drivers 1 x 8" / 20.5 cm magnetically-shielded front-firing woofer
      Amplifier Output Power 150 W
      Maximum Sound Pressure Level (SPL) ≥104 dB
      Frequency Response 22 to 120 Hz (-6 dB)
      Frequency Response Accuracy ±3 dB (25 to 120 Hz)
      Crossover Frequency 50 to 100 Hz (in 5 Hz steps)
      Connectors 6 x XLR analog inputs
      5 x XLR analog outputs
      1 x XLR AES/EBU digital input
      1 x XLR AES/EBU digital output
      2 x RJ-45 control network jacks
      Dimensions (H x W x D) 16.1 x 13.8 x 12.6" / 41.0 x 35.0 x 31.9 cm
      Weight 42 lb / 19 kg
    • GLM 2.0 User Kit
      Windows System Requirements
      Operating System Windows 8 or 8.1 (32- or 64-bit), Windows 7 SP1 or newer (32- or 64-bit), Vista, XP
      Processor Intel Pentium or compatible (1.6 GHz minimum)
      GPU DirectX 11.0 class or better
      Minimum RAM 2 GB
      Minimum Disk Capacity 1 GB
      Display 1024 x 768 or higher resolution
      Additional Requirements Internet connection
      Mac System Requirements
      Operating System OS X 10.10 Yosemite, OS X 10.9 Mavericks
      Processor Any processor compatible with the above operating systems
      GPU Any GPU compatible with the above operating systems
      Minimum RAM 2 GB
      Minimum Disk Capacity 1 GB
      Display 1024 x 768 or higher resolution
      Additional Requirements Internet connection
      Packaging Info
      Box Dimensions (LxWxH) 9.9 x 4.8 x 2.3"
    • 9310A Volume Controller for GLM 2.0
      Packaging Info
      Box Dimensions (LxWxH) 4.4 x 4.4 x 2.0"
    The user manual for the Genelec 8330 2.1 Surround Sound System 8330.LSE TRIPLE SAM can be downloaded in .pdf format if it did not come with your new studio monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Genelec users keep a unique electronic library for Genelec studio monitorss, where you can use our link to download the user manual for the Genelec 8330 2.1 Surround Sound System 8330.LSE TRIPLE SAM.

    The user manual lists all of the functions of the Genelec 8330 2.1 Surround Sound System 8330.LSE TRIPLE SAM, all the basic and advanced features and tells you how to use the studio monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Genelec service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Genelec 8330 2.1 Surround Sound System 8330.LSE TRIPLE SAM. User manuals are also available on the Genelec website under Pro Audio - Recording - Studio Monitors.
