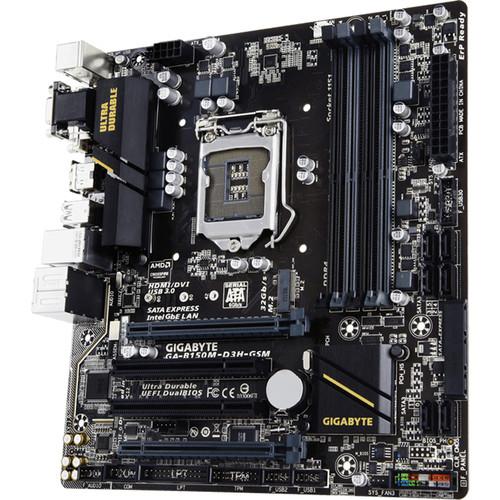

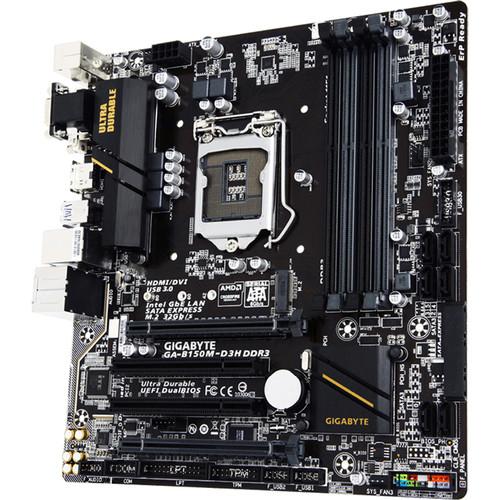

The Gigabyte GA-B150M-D3H GSM Micro-ATX Motherboard comes with an LGA 1511 socket along with Intel's Small Business Advantage technologies so you can build a reliable PC system for productivity. The LGA 1511 socket is compatible with Intel's 6th-generation series of processors, and the four DIMM slots support up to 64GB of DDR4 RAM. For storage, this motherboard lets you install a PCIe-based SSD to the M.2 connector, which utilizes multiple PCIe lanes to offer bandwidths up to 32 Gb/s. Furthermore, it features a dualBIOS design that offers a secondary backup BIOS if the main BIOS becomes corrupt.
Gigabyte has built this motherboard to deliver visuals via integrated Intel graphics along with the VGA, HDMI, and DVI ports or with dedicated graphics cards utilizing the two PCIe 3.0 slots. To complete the multimedia experience, it comes with Realtek ALC892 audio and six audio jacks. You can further expand the potential of your system by connecting external peripherals to its six USB ports. Moreover, an Ethernet LAN jack allows the system to reliably access the network and Internet at Gigabit speeds. Other notable features include six SATA connectors and a single SATA Express connector along with two PCI slots.
If you own a Gigabyte motherboards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Gigabyte GA-B150M-D3H GSM Micro-ATX Motherboard GA-B150M-D3H GSM in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Gigabyte GA-B150M-D3H GSM Micro-ATX Motherboard GA-B150M-D3H GSM:
Specifications
Processor Supported
Supports Intel Core i7, Core i5, Core i3, Pentium, and Celeron processors in the LGA1151 package
Chipset
Intel B150 Express chipset
Memory
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 2133 MHz memory modules Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
Onboard Graphics
Integrated Intel HD Graphics supported 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @ 60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @ 60 Hz 1 x HDMI 1.4 port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz Support for up to 3 displays at the same time Maximum shared memory of 512 MB
Audio
Realtek ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN
Intel GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express 3.0 x16 slot, running at x16 (PCIEX16) 1 x PCI Express 3.0 x16 slot, running at x4 (PCIEX4) 2 x PCI slots
Multi-Graphics Technology
Support for 2-Way AMD CrossFire Technology
Storage Interface
1 x M.2 Socket 3 connector 1 x SATA Express connector 6 x SATA 6 Gb/s connectors
USB
6 x USB 3.0/2.0 (4 ports on the back panel, 2 ports available through the internal USB headers) 6 x USB 2.0/1.1 (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12 V power connector 1 x M.2 Socket 3 connector 1 x SATA Express connector 6 x SATA 6 Gb/s connectors 1 x CPU fan header 3 x System fan headers 1 x Front panel header 1 x Front panel audio header 1 x S/PDIF Out header 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x Thunderbolt add-in card connector 1 x Serial port header 1 x Parallel port header 1 x Clear CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x Audio jacks (center/subwoofer speaker out, rear speaker out, side speaker out, line in, line out, mic in)
I/O Controller
iTE I/O controller chip
H/W Monitoring
System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System overheating warning CPU/System fan fail warning CPU/System fan speed control
BIOS
2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
