User manual for the Gigabyte GA-H81M-S2H Motherboard (rev. 1.0) GA-H81M-S2H GSM
The user manual for the Gigabyte GA-H81M-S2H Motherboard (rev. 1.0) GA-H81M-S2H GSM provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Motherboards.

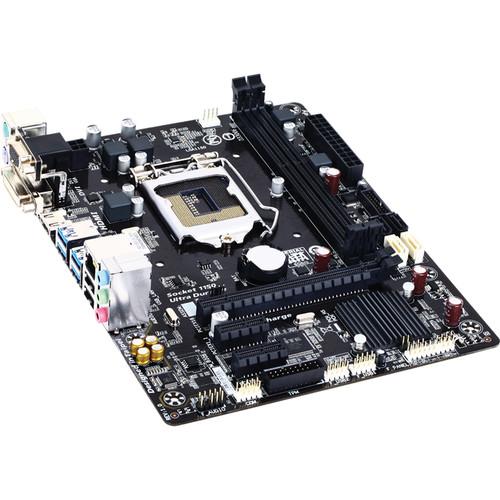

The GA-H81M-S2H Motherboard (rev. 1.0) from Gigabyte is designed to fit in cases that support the Micro ATX form factor. It supports 4th Generation (Haswell) Intel Core i7, i5, i3, Pentium, and Celeron processors in the LGA1150 socket, as well as the Intel H81 Express chipset. This motherboard supports Windows 8.1, 8, and 7, as well as Linux and Win9X/ME/2000/XP with available drivers.
The Micro ATX form factor of the GA-H81M-S2H has 2 x DIMM slots that can support up to 32GB of non-ECC DDR3 RAM, as well as dual memory architecture and Extreme Memory Profile (XMP) memory modules. The supported memory speeds are 1600 and 1333 MHz. This motherboard has a total of 2 x SATA III 6 Gb/s ports, 2 x SATA II 3 Gb/s ports, 1 x PCIe 2.0 x16 slot (running at x16) and 2 x PCIe x1 slots, 2 x USB 3.0/2.0 ports (available through the internal USB header), 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers), and 2 x PS/2 ports. Using the Realtek ALC887 coded, it can support 2, 4, 5.1, and 7.1-channel HD audio.
The GA-H81M-S2H has integrated Intel HD graphics support with 1 x HDMI 1.4a port, 1 x DVI-D port, 1 x VGA port, and can use up to 1GB of shared memory. The HDMI port of this motherboard can support a maximum resolution of 4096 x 2160, its DVI-D port can support a maximum resolution of 1920 x 1200, and its VGA port also supports a maximum resolution of 1920 x 1200.
The GA-H81M-S2H has also been designed with solid caps, audio capacitors, a dedicated audio hardware zone, humidity protection, power failure protection, electrostatic protection, and more. It is protected by a limited 3-year warranty.
If you own a Gigabyte motherboards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Gigabyte GA-H81M-S2H Motherboard (rev. 1.0) GA-H81M-S2H GSM in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Gigabyte GA-H81M-S2H Motherboard (rev. 1.0) GA-H81M-S2H GSM:
Specifications
CPU
- Support for 4th Generation Intel Core i7, i5, i3, Pentium, and Celeron processors in the LGA1150 package - L3 cache varies with the CPU
Chipset
Intel H81 Express Chipset
Memory
- 2 x DDR3 DIMM sockets supporting up to 16 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed - Dual channel memory architecture - Support for DDR3 1600/1333 MHz memory modules - Support for non-ECC memory modules - Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor - Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 - 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 * The DVI-D port does not support D-Sub connection by adapter - 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 * Support for HDMI 1.4a - Maximum shared memory of 1 GB
Audio
- Realtek ALC887 codec - High Definition Audio - 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver
LAN
Realtek GbE LAN chip (10/100/1000 Mb/s)
Expansion Slots
- 1 x PCI Express 2.0 x16 slot, running at x16 - 2 x PCI Express 2.0 x1 slots
Storage Interface
Chipset: 2 x SATA III 6 Gb/s connectors (SATA3 0/1) 2 x SATA II 3 Gb/s connectors (SATA2 2/3)
USB
Chipset: - 2 x USB 3.0/2.0 ports (available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB header)
VIA VL805 Chip: - 4 x USB 3.0/2.0 ports on the back panel
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 4-pin ATX 12 V power connector 2 x SATA 6 Gb/s connectors 2 x SATA 3 Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x serial port header 1 x Clear CMOS jumper
Back Panel Connectors
1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System overheating warning CPU/System fan fail warning CPU/System fan speed control * Whether the fan speed control function is supported will depend on the installed cooler
BIOS
- 1 x 32 Mbit flash - Use of licensed AMI UEFI BIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Features
- Support for Q-Flash - Support for Xpress Install - Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications @BIOS EasyTune EZ Setup USB Blocker - Support for ON/OFF Charge
Operating System
Support for Windows 8.1, 8, and 7
Form Factor
Micro ATX Form Factor; 8.90 x 6.85" / 22.60 x 17.40 cm
The user manual for the Gigabyte GA-H81M-S2H Motherboard (rev. 1.0) GA-H81M-S2H GSM can be downloaded in .pdf
format if it did not come with your new motherboards, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Gigabyte users keep a unique electronic library
for Gigabyte motherboardss,
where you can use our link to download the user manual for the Gigabyte GA-H81M-S2H Motherboard (rev. 1.0) GA-H81M-S2H GSM.
The user manual lists all of the functions of the Gigabyte GA-H81M-S2H Motherboard (rev. 1.0) GA-H81M-S2H GSM,
all the basic and advanced features and tells you how to use the motherboards.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Gigabyte service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Gigabyte GA-H81M-S2H Motherboard (rev. 1.0) GA-H81M-S2H GSM. User manuals are also
available on the Gigabyte website under Computers & Solutions - Computer Components - Motherboards.
