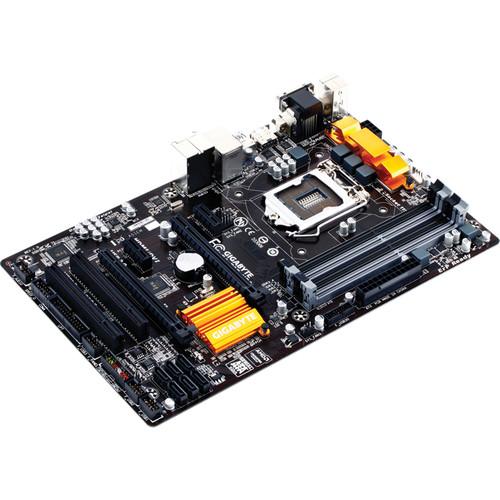

Gigabyte GA-Z97-HD3 ATX Motherboard GA-Z97-HD3
  • Manufacturer: Gigabyte
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Computer Components - Motherboards
  • Safety instructions
  • Startup and operation of the motherboards
  • Tips for setting up your Gigabyte
  • Settings and expert assistance
  • Contact Gigabyte service
  • Troubleshooting
  • Warranty information
  • Price: 103 USD
We recommend checking out our discussion threads on the Gigabyte GA-Z97-HD3 ATX Motherboard GA-Z97-HD3, which address similar problems with connecting and setting up Motherboards Gigabyte.


User manual for the Gigabyte GA-Z97-HD3 ATX Motherboard GA-Z97-HD3

The user manual for the Gigabyte GA-Z97-HD3 ATX Motherboard GA-Z97-HD3 provides necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Motherboards.

The GA-Z97-HD3 ATX Motherboard from Gigabyte supports advanced PC components for creating a high-performance Windows system. This motherboard supports 4th and 5th generation Intel Core i7/i5/i3, Pentium, and Celeron processors in the LGA1150 socket. These CPUs also use an integrated Intel graphics processor that supports 4K video via HDMI. This motherboard supports multiple graphic cards configured for 2-Way CrossFire to allow higher frame rates without compromising resolution when running advanced 3D games. GIGABYTE has included the App Center, which allows you to tweak settings within the BIOS for increasing the performance of the CPU and GPU. Another feature of the App Center allows you to remotely share files and control your computer via smartphone and tablet.

You may add up to 32GB of RAM across 4 memory slots to run multiple applications at the same time. For connecting to optical and storage drives, six SATA III connectors are available and allow for data transfers up to 6 Gb/s. It also offers six USB ports for connecting to other peripherals. For audio and networking needs, the motherboard is built with the Realtek Audio ALC887 and the Realtek LAN chip. Included with the Z97 motherboard are driver disks, SATA cables, and an I/O shield.
If you own a Gigabyte motherboards and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Gigabyte GA-Z97-HD3 ATX Motherboard GA-Z97-HD3 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Gigabyte GA-Z97-HD3 ATX Motherboard GA-Z97-HD3:
Specifications
    Form Factor ATX
    CPU Support Intel Core i7 / i5 / i3 / Pentium / Celeron processors
    Chipset Intel Z97
    Socket Type LGA1150
    Main Memory RAM Slots: 4
    Type: 1333 / 1600 MHz DIMM DDR3
    O.C. Support: 1800 / 1866 / 2000 / 2133 / 2200 / 2400 / 2500 / 2600 / 2666 / 2800 / 2933 / 3000 / 3100 MHz DDR3
    Max Size: 32 GB
    Dual channel memory architecture
    Supports non-ECC memory
    Supports Extreme Memory Profile (XMP)
    Graphics Processor (GPU) Resolutions up to 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz via HDMI 1.4a
    Resolutions up to 1920 x 1200 @ 60 Hz via DVI-D
    Resolutions up to 1920 x 1200 @ 60 Hz via VGA
    Supports up to 3 displays at the same time
    Maximum shared memory of 512 MB
    I/O Control iTE I/O Controller Chip
    BIOS 2 x 64 Mbit flash
    Use of licensed AMI UEFI BIOS
    Support for DualBIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Monitoring and Management Support System voltage detection
    CPU/System temperature detection
    CPU/System fan speed detection
    CPU/System overheating warning
    CPU/System fan fail warning
    CPU/System fan speed control
    Whether the fan speed control function is supported will depend on the cooler you install.
    Slots 1 x PCI Express 3.0 x16, running at x16 (PCIEX16)
    For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    1 x PCI Express 2.0 x16, running at x4 (PCIEX4)
    The PCIEX4 slot shares bandwidth with the PCI Express x1 slots. The PCI Express x1 slots will become unavailable when a PCIe x4 expansion card is installed.
    When installing an x8 or above card in the PCIEX4 slot, make sure to set PCIE Slot Configuration (PCH) in BIOS Setup to x4.

    2 x PCI Express 2.0 x1

    2 x PCI
    Storage Interface Chipset
    SATA III 6 Gb/s
    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    Audio Realtek ALC887 codec
    High Definition Audio
    2/4/5.1/7.1-channel
    Support for S/PDIF Out
    LAN Realtek GbE LAN chip (10/100/1000 Mbit)
    Internal I/O Connectors 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    6 x SATA 6 Gb/s connectors
    1 x CPU fan header
    3 x System fan headers
    1 x Front panel header
    1 x Front panel audio header
    1 x S/PDIF Out header
    1 x USB 3.0/2.0 header
    3 x USB 2.0/1.1 headers
    1 x Serial port header
    1 x Parallel port header
    1 x Clear CMOS jumper
    Back Panel I/O Ports 1 x PS/2 keyboard/mouse port
    1 x D-Sub port
    1 x DVI-D port
    1 x HDMI port
    4 x USB 3.0/2.0 ports
    2 x USB 2.0/1.1 ports
    1 x RJ-45 port
    6 x Audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
    Supports APP Center
    Q-Flash
    Smart Switch
    Xpress Install
    Operating System Support Windows 8.1 / 8 / 7
    Dimensions 12.0 x 7.5" / 30.5 x 19.0 cm
    Packaging Info
    Package Weight 2.2 lb
    Box Dimensions (LxWxH) 12.9 x 10.2 x 2.4"
