User manual for the Gigabyte GA-Z97X-SLI ATX Motherboard GA-Z97X-SLI
The user manual for the Gigabyte GA-Z97X-SLI ATX Motherboard GA-Z97X-SLI provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Motherboards.

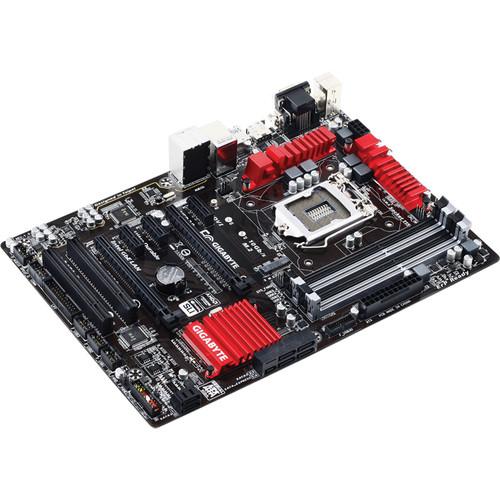

The GA-Z97X-SLI Motherboard from Gigabyte supports advanced PC components for creating a Windows desktop computer. This motherboard supports 4th and 5th generation Intel Core i7/i5/i3, Pentium, and Celeron processors in the LGA1150 socket. These CPUs also use an integrated Intel graphics processor that allows native 4K support via HDMI. To optimize system-loading times and faster access to programs and files, it is recommended to use an SSD connected to the SATA express or M.2 connectors. Gigabyte has also included the App Center, which allows you to tweak settings within the BIOS for increasing the performance of the CPU and GPU. Another feature of the App Center allows you to remotely share files and control your computer via smartphone and tablet.
Running advanced 3D games requires multiple graphic cards connected together to allow higher frame rates without compromising resolution, which is why this motherboard offers 2-Way CrossFire or SLI multi-graphics technology. You may add up to 32GB of RAM across 4 memory slots. For connecting to optical and storage drives, six SATA III connectors are available and allow for data transfers up to 6 Gb/s. It also offers six USB ports for connecting to other peripherals. For audio and networking needs, the motherboard is built with the Realtek Audio ALC1150 and Intel LAN chip. Included with the Z97X motherboard are a driver disk, SATA cables, and an I/O shield.
If you own a Gigabyte motherboards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Gigabyte GA-Z97X-SLI ATX Motherboard GA-Z97X-SLI in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Gigabyte GA-Z97X-SLI ATX Motherboard GA-Z97X-SLI:
Resolutions up to 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz via HDMI 1.4a Resolutions up to 1920 x 1200 @ 60 Hz via DVI-D Resolutions up to 1920 x 1200 @ 60 Hz via VGA Support for up to 3 displays at the same time Maximum shared memory of 512 MB
I/O Control
iTE I/O Controller Chip
BIOS
2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Monitoring and Management Support
System voltage detection CPU/System temperature detection CPU/CPU OPT/System fan speed detection CPU/System overheating warning CPU/CPU OPT/System fan fail warning CPU/CPU OPT/System fan speed control
Slots
1 x PCI Express 3.0 x16, running at x16 (PCIEX16) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express 3.0 x16, running at x8 (PCIEX8) Shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
3 x PCI Express 2.0 x1
2 x PCI
Storage Interface
Chipset M.2 PCIe connector SATA Express connector SATA III 6 Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 M.2, SATA Express, and SATA3 4/5 connectors can only be used one at a time.
Audio
Realtek ALC1150 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN
Intel GbE LAN chip (10/100/1000 Mbit)
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 PCIe connector 1 x SATA Express connector 6 x SATA 6Gb/s connectors 1 x CPU fan header 1 x Water cooling fan header (CPU_OPT) 3 x System fan headers 1 x Front panel header 1 x Front panel audio header 1 x S/PDIF Out header 1 x USB 3.0/2.0 header 3 x USB 2.0/1.1 headers 1 x Serial port header 1 x Parallel port header 1 x Clear CMOS jumper
Back Panel I/O Ports
1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x Audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
