User manual for the Golden Age Project PRE-73 MKII - Vintage-Style PRE73 MK2
The user manual for the Golden Age Project PRE-73 MKII - Vintage-Style PRE73 MK2 provides
necessary instructions for the proper use of the product Pro Audio - Recording - Microphone Preamps.

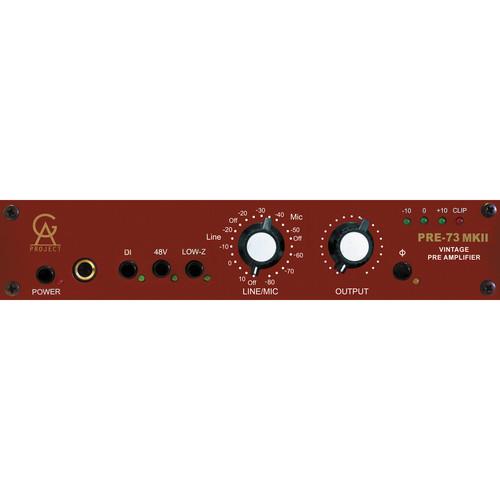

The Golden Age Project PRE-73 MKII is a vintage-style, solid-state preamplifier that uses only discrete components and provides a variety of input and output options. The unit has a warm and punchy sound, and has similar circuitry to the classic 1073 module.
The PRE-73 MKII has a transformer-balanced mic input that can be switched between impedances of 1200 and 300Ω, resulting in a different sound at each setting on most mics. The rear panel has two combo XLR/1/4-inch jacks: one for mic-level sources and one for line-level sources. You can even plug-in mic and line sources simultaneously. A 1/4-inch instrument input is located on the front panel.
The unit also offers selectable output termination (requires removing a jumper), separate 1/4-inch TRS and XLR output jacks, absolute phase and phantom power switches, and input and output volume knobs.
|
If you own a Golden Age Project microphone preamps and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Golden Age Project PRE-73 MKII - Vintage-Style PRE73 MK2 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Golden Age Project PRE-73 MKII - Vintage-Style PRE73 MK2:
| Number of Channels | Single | | Inputs | 1 x XLR/1/4" Combo Mic/Line (balanced)
1 x XLR/1/4" Line (balanced)
1 x 1/4" TRS Instrument (balanced) | | Outputs | 1 x XLR Mic-Level (balanced)
1 x 1/4" Line-Level (balanced) | | Insert | 1 x 1/4" (unbalanced), -18 dBU Operating Level (approximate) | | Gain Range | 80 dB Maximum (mic input)
-20 dB to 10 dB (line input) | | Input Impedance | 1200 or 300Ω Mic (switchable) 100 kΩ Instrument | | Controls | 1 x DI switch
1 x 48V Phantom Power switch
1 x Low-Z (input impedance) switch
1 x Input Gain knob
1 x Phase switch
1 x Output Gain knob | | Meter | 4-Step LED Output | | Power Supply | External (included) | | Dimensions | 9.5" (241 mm) x 1 RU | | Weight | Not Specified by Manufacturer | | Package Weight | 7.95 lb | | Box Dimensions (LxWxH) | 14.3 x 12.7 x 3.8" | |
The user manual for the Golden Age Project PRE-73 MKII - Vintage-Style PRE73 MK2 can be downloaded in .pdf
format if it did not come with your new microphone preamps, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Golden Age Project users keep a unique electronic library
for Golden Age Project microphone preampss,
where you can use our link to download the user manual for the Golden Age Project PRE-73 MKII - Vintage-Style PRE73 MK2.
The user manual lists all of the functions of the Golden Age Project PRE-73 MKII - Vintage-Style PRE73 MK2,
all the basic and advanced features and tells you how to use the microphone preamps.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Golden Age Project service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Golden Age Project PRE-73 MKII - Vintage-Style PRE73 MK2. User manuals are also
available on the Golden Age Project website under Pro Audio - Recording - Microphone Preamps.
Question and answer discussion forum concerning user instructions and resolving problems with the Golden Age Project PRE-73 MKII - Vintage-Style PRE73 MK2
Post new comment to Golden Age Project PRE-73 MKII - Vintage-Style PRE73 MK2
| Subject: GAP Pre 73 MK1 | | Date: 28.03.2022 16:27:35 | Author: Gabriel | Hi,
I have owned this pre for many years but recently one of the capacitors blew out.
I replaced it but I have now a humming noise in the background. I have checked voltage and it seems the LM317 rectifier now outputs its max voltage of 37v instead of the 24v that it should. I have the feeling the resistors at the input side are faulty but I cannot find any schematics online of the GAP power rectifier section of my pre. Is there anybody who has them and could post so that I can try to fix it?
Many thanks | | Reply |
