User manual for the Gra-Vue MVIO HDDEM-4AUD-FS 4-Channel Balanced MVIO HDDEM-4AUD-FS

The user manual for the Gra-Vue MVIO HDDEM-4AUD-FS 4-Channel Balanced MVIO HDDEM-4AUD-FS provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Embedders & De-Embedders.

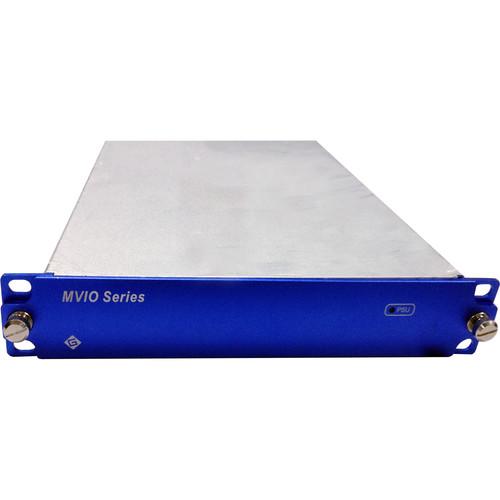

The MVIO HDDEM-4AUD-FS 4-Channel Balanced Audio De-Embedder with Frame Sync Processing from Gra-Vue is a half-rack 1RU standalone audio de-embedder which extracts two user selectable stereo pairs from the SDI stream and outputs four balanced audio signals, and applies frame sync processing to the output signal. DIP switches are used to select the audio group you want to de-embed and the de-embedding mode you want to use (e.g. following input channels, crossing output, mixing output). The unit features automatic input format detection and supports the following formats: 625i50, 525i60, 720p, 1080i, 1080p, and 1080p. It also features two mirrored SDI loop outputs so that video can be delivered to two downstream destinations without requiring a separate distribution amplifier.

The MVIO HDDEM-4AUD will pass SD and HD resolution signals, and supports bandwidths up to 1.5 Gb/sec in HD-SDI. The de-embedder provides automatic signal equalization for long cable applications (up to 328' over Belden 1694A). This improves the signal quality and reduces signal loss caused by long distance transmission of the input source. The LED lights indicate the status of input signal and power supply. This de-embedder also supports SNMP and can be real-time managed and monitored via the XIO NET, an optional network management module, via Ethernet.
If you own a Gra-Vue embedders & de-embedders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Gra-Vue MVIO HDDEM-4AUD-FS 4-Channel Balanced MVIO HDDEM-4AUD-FS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Gra-Vue MVIO HDDEM-4AUD-FS 4-Channel Balanced MVIO HDDEM-4AUD-FS:
Specifications
    SDI Input 1 x BNC female, HD/SD-SDI, 75 ohms
    1 x BNC, input reference (PAL/NTSC)
    Maximum Cable Length 328' (100 m) using Belden 1694A
    Analog Audio Output 4 x 3-pin terminal block, balanced
    Maximum Level: +24 dBu (0 dBFs)
    SDI Output 2 x BNC female, HD/SD-SDI
    Impedance: 75 ohms
    Level: 800 mV ±5%
    Jitter: <0.2 UI (100 kHz)
    Supported Formats SD: 625i50, 525i60
    HD: 1080i50/60, 720p50/60, 1080p24/25/30, 1080psf24
    Supported Standards SMPTE 259M-C (270 Mb/sec), SMPTE 292M (1.485 Gb/sec)
    LED Indicators 1 x green, signal status
    1 x green, power
    Operating Temperature 41 to 77°F (5 to 25°C)
    Power 110 ‐ 240 VAC, 60 W
    Dimensions 8.6 x 17.0 x 1.9" (21.9 x 43.2 x 4.8 cm)
