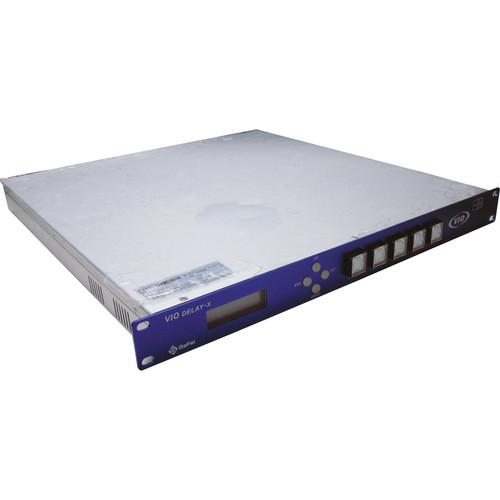

The VIO SUPER-DELAY-HD60SM SDI Video Delay with Multiviewer from Gra-Vue allows you to delay an SD or HD-SDI video signal for up to 60 seconds. It features two inputs, a primary input and an auxiliary input that you can switch to when the program feed is corrupted. The output is split into three "timelines", with each timeline going out over a dedicated connector. One timeline shows the video before it is delayed, one shows the video as it is being delayed, and the third shows the video after it is delayed. In this way, a problem spot can be identified and the aux feed can be engaged in time. A countdown timer displayed on the front-panel LCD indicates time elapsed since the problem was encountered.

The unit can also embed or de-embed up to four channels of AES or balanced analog audio. In addition there are two monitor outputs so that all of the SDI-embedded audio can be locally monitored even if the SDI monitor being used doesn't have an audio output.

In addition to delay, this version of the VIO Delay features a multiviewer video output that allows you to view all three timelines as well as the program output on a single monitor.
If you own a Gra-Vue video & audio delays and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Gra-Vue VIO SUPER-DELAY-HD60SM SDI Video VIO SUPER-DELAY--HD60SM in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Gra-Vue VIO SUPER-DELAY-HD60SM SDI Video VIO SUPER-DELAY--HD60SM:
SDI Input Connectors: 2 x SD/HD-SDI on BNC
Impedance: 75 ohm
Standards: SMPTE 259M-C (270 Mb/s), SMPTE 292M (1.485 Gb/s)
Supported Resolutions: 625i50, 525i59.94; 720p50, 720p59.94, 720p60; 1080i50, 1080i59.94, 1080i60
Maximum Amplitude: > 450 mV Maximum Cable Length: 656.2' (200 m) at SD resolution; 328.1' (100 m) at HD resolution -- requires Beldan 1694A cable
Reference Input Connector: 1 x SD-SDI on BNC
Type: PAL, NTSC, or Tri-Level
SDI Output Connectors: 6 x SD/HD-SDI on BNC
Standards: SMPTE 259M-C (270 Mb/s), SMPTE 292M (1.485 Gb/s)
Supported Resolutions: 625i50, 525i59.94; 720p50, 720p59.94, 720p60; 1080i50, 1080i59.94, 1080i60
Audio Input Connectors: 4 x AES or analog on mini XLR
Impedance: 600 ohm (analog); 110 ohm (AES)
Audio Out Connectors: 6 x AES or analog on mini XLR -- 2 x used for monitoring
Impedance: 600 ohm (analog); 110 ohm (AES)
Power Supply 2 x 275 redundant PSU
Dimensions 17.3 x 15.7 x 1.7" (440 x 400 x 44 mm)
Weight Not specified by manufacturer
Packaging Info
Package Weight 28.66 lb
Box Dimensions (LxWxH) 24.0 x 24.0 x 8.0"
