User manual Gra-Vue XIO 9001VDA Dual 1 x 3 Analog Video XIO 9001VDA-3U

Operating instructions and pdf manual for use - Gra-Vue XIO 9001VDA Dual 1 x 3 Analog Video XIO 9001VDA-3U User manual, User manual Gra-Vue XIO 9001VDA Dual 1 x 3 Analog Video XIO 9001VDA-3U, Gra-Vue, XIO, 9001VDA, Dual, 1, x, 3, Analog, Video, XIO


User manual for Gra-Vue XIO 9001VDA Dual 1 x 3 Analog Video XIO 9001VDA-3U

Gra-Vue XIO 9001VDA Dual 1 x 3 Analog Video XIO 9001VDA-3U
  • Manufacturer: Gra-Vue
  • Basic description and contents of package
  • Product classification: Professional Video - Signal Processing & Distribution - Distribution Amplifiers (DA's)
  • Safety instructions
  • Startup and operation of the distribution amplifiers (da's)
  • Tips for setting up your Gra-Vue
  • Settings and expert assistance
  • Contact Gra-Vue service
  • Troubleshooting
  • Warranty information
  • Price: 198 USD
We recommend checking out our discussion threads on the Gra-Vue XIO 9001VDA Dual 1 x 3 Analog Video XIO 9001VDA-3U, which address similar problems with connecting and setting up Distribution Amplifiers (DA's) Gra-Vue.



User manual for the Gra-Vue XIO 9001VDA Dual 1 x 3 Analog Video XIO 9001VDA-3U

The user manual for the Gra-Vue XIO 9001VDA Dual 1 x 3 Analog Video XIO 9001VDA-3U provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Distribution Amplifiers (DA's).

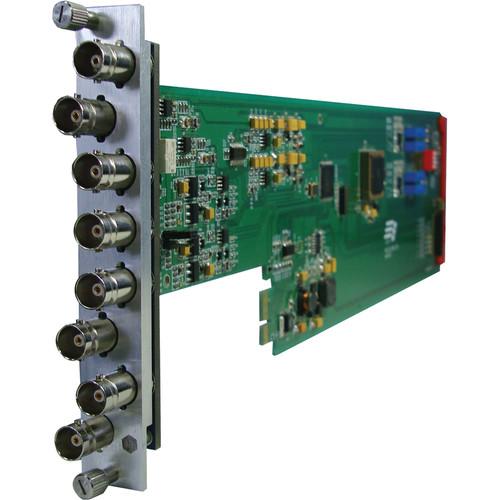

The XIO 9001VDA Dual 1 x 3 Analog Video Distribution Amplifier Card for 3RU Frame from Gra-Vue is a modular distribution amplifier card designed to be used in a XIO 3RU Modular Platform Chassis (sold separately). This card distributes 2 analog composite video signals CVBS-A and CVBS-B, and distributes each of them to 3 video outputs. The unit supports automatic input detection of NTSC and PAL, and the gain of the output signals can be adjusted via an on-board DIP switch. The distribution amplifier provides automatic signal equalization for improving signal quality and reducing signal loss caused by long distance transmission (cable length up to 656' over Belden 8281). The LED lights on the module indicate the status of the input signal and power supply. The distribution amplifier also supports SNMP, and can be real-time managed and monitored by the XIO NET Network Management Module (sold separately) via Ethernet. This unit is designed to be mounted vertically in a 3RU frame.
If you own a Gra-Vue distribution amplifiers (da's) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Gra-Vue XIO 9001VDA Dual 1 x 3 Analog Video XIO 9001VDA-3U in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Gra-Vue XIO 9001VDA Dual 1 x 3 Analog Video XIO 9001VDA-3U:
Connectors 2 x BNC, CVBS input
6 x BNC, CVBS output
Impedance 75 Ω
Format SMPTE 259M-C 270 Mb/s
525i60, 625i50
Maximum Length 656' (200 m) over Belden 8281
Status Indicators 1 x LED, Signal
1 x LED, Power
Signal Level 1 VDC pp
White Level 0.7 VDC
H-sync Level -0.3 VDC
Power Consumption 2 to 3 W
Dimensions 14.4 x 3.9 x 0.4" (36.5 x 10.0 x 1.0 cm) including components' height
Weight 6.5 oz (185.0 g) approximate
The user manual for the Gra-Vue XIO 9001VDA Dual 1 x 3 Analog Video XIO 9001VDA-3U can be downloaded in .pdf format if it did not come with your new distribution amplifiers (da's), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Gra-Vue users keep a unique electronic library for Gra-Vue distribution amplifiers (da's)s, where you can use our link to download the user manual for the Gra-Vue XIO 9001VDA Dual 1 x 3 Analog Video XIO 9001VDA-3U.

The user manual lists all of the functions of the Gra-Vue XIO 9001VDA Dual 1 x 3 Analog Video XIO 9001VDA-3U, all the basic and advanced features and tells you how to use the distribution amplifiers (da's). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Gra-Vue service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Gra-Vue XIO 9001VDA Dual 1 x 3 Analog Video XIO 9001VDA-3U. User manuals are also available on the Gra-Vue website under Professional Video - Signal Processing & Distribution - Distribution Amplifiers (DA's).
