User manual for the Grandstream Networks GXP1620 Small Business IP Phone GXP1620
The user manual for the Grandstream Networks GXP1620 Small Business IP Phone GXP1620 provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Telephones.

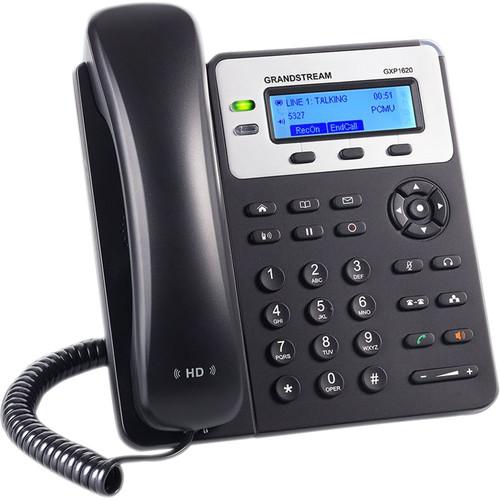

Whether you are looking for an IP phone for home or business use, the GXP1620 Small Business IP Phone from Grandstream is not only easy to use but simple to setup. This IP phone is designed to be used with two SIP accounts and supports up to two call appearances along with 3 XML programmable soft keys.
Dual call appearance support allows for multiple phone functions including call transfer, call waiting, and other features requiring support for two concurrent phone lines. To utilize the three programmable soft keys found below the LCD display you simply need to input a compatible XML file relating to the specific task to be assigned to each key.
On the front of this small business IP phone you will find a 132 x 48 pixel LCD display for easy viewing of features like caller ID, phonebook, soft key commands, and much more. This IP phone can also be customized to suit your specific needs with support for multiple ring tones and integration with advanced Web and enterprise applications. Automated provisioning support using TR-069 or an encrypted XML configuration file will have your IP phone up and running in no time.
|
If you own a Grandstream Networks telephones and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Grandstream Networks GXP1620 Small Business IP Phone GXP1620 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Grandstream Networks GXP1620 Small Business IP Phone GXP1620:
| Protocols and Standards Compliance | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP | | Network Interface | Dual switched auto-sensing 10/100 Mbps Ethernet ports | | Display | 132 x 48 backlit graphical LCD display | | Keys Layout | 2 x line keys with dual-color LED and 1 SIP account
3 x XML programmable context sensitive soft keys
5 x (navigation, menu) keys
13 x dedicated function keys for mute, headset, transfer, conference, send and redial, speakerphone, volume, phonebook, message, hold, page/intercom, record, home | | Voice Codecs | Support for G.711µ/a, G.722 (wide-band), G.723 (pending), G.726-32, G.729 A/B, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC | | Headset Jack | RJ9 headset jack (allowing EHS with Plantronics headsets) | | Base Stand | Yes, 2 angled positions available, wall mountable | | Wall Mountable | Yes | | QoS (Quality of Service) | Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS | | Security | User and administrator level access control, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control | | Multi-Language | English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified and traditional Chinese, Korean, Japanese and more | | Provisioning | Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file | | Power Specifications | Universal Power Supply input 100-240 VAC 50-60 Hz; Output +5 VDC, 60 0mA | | Compliance | FCC: Part 15 (CFR 47) Class B
CE : EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1
RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 60950.1 | | Temperature | Operating: 32 to 104°F / 0 to 40°C
Storage: 14 to 140°F / -10 to 60°C | | Humidity | 10 to 90% non-condensing | | Dimensions | 8.2 x 7.3 x 3.0" / 209.0 x 184.5 x 76.2 mm (with handset) | | Weight | 1.61 lb / 0.73 kg | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 10.4 x 8.4 x 3.2" | |
