User manual Grandstream Networks HT503 HandyTone Analog Telephone HT503

Operating instructions and pdf manual for use - Grandstream Networks HT503 HandyTone Analog Telephone HT503 User manual, User manual Grandstream Networks HT503 HandyTone Analog Telephone HT503, Grandstream, Networks, HT503, HandyTone, Analog, Telep


User manual for Grandstream Networks HT503 HandyTone Analog Telephone HT503

Grandstream Networks HT503 HandyTone Analog Telephone HT503
  • Manufacturer: Grandstream Networks
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - VoIP Accessories
  • Safety instructions
  • Startup and operation of the voip accessories
  • Tips for setting up your Grandstream Networks
  • Settings and expert assistance
  • Contact Grandstream Networks service
  • Troubleshooting
  • Warranty information
  • Price: 59 USD

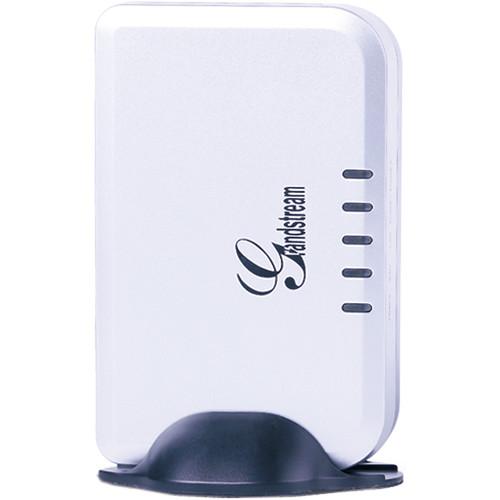

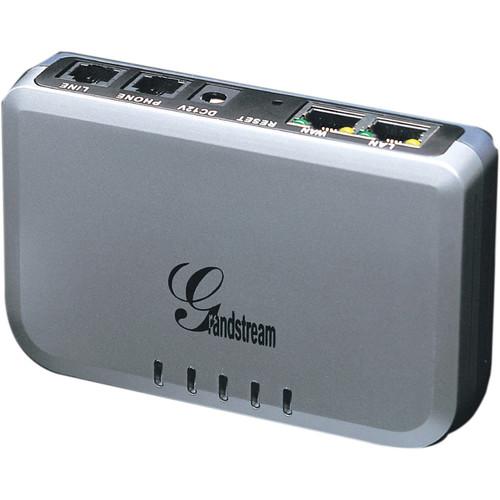

Grandstream Networks HT503 HandyTone Analog Telephone HT503 Grandstream Networks HT503 HandyTone Analog Telephone HT503
Click to enlarge image

We recommend checking out our discussion threads on the Grandstream Networks HT503 HandyTone Analog Telephone HT503, which address similar problems with connecting and setting up VoIP Accessories Grandstream Networks.



User manual for the Grandstream Networks HT503 HandyTone Analog Telephone HT503

The user manual for the Grandstream Networks HT503 HandyTone Analog Telephone HT503 provides necessary instructions for the proper use of the product Computers & Solutions - Networking - VoIP Accessories.

With one FXS port and one FXO port, the HT503 HandyTone Analog Telephone Adapter from Grandstream Networks is capable of handling up to two analog telephones along with support for two separate SIP accounts. The gateway also acts as a NAT router, allowing you to connect an Ethernet-enabled device directly to the gateway to obtain Internet connectivity. Once configured, you benefit from advanced telephony features such as caller ID from both IP and PSTN, 3-way conference calling with IP and/or PSTN, remote call origination and termination from/to PSTN, and much more. You can also keep tabs on the status of your gateway via the integrated LED indicators for power, telephone, network ports, and message waiting indicator.
If you own a Grandstream Networks voip accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Grandstream Networks HT503 HandyTone Analog Telephone HT503 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Grandstream Networks HT503 HandyTone Analog Telephone HT503:
Specifications
Telephone Interface 1 x FXS port (RJ-11)
1 x FXO PSTN line port (RJ-11) with lifeline support
Network Interface 2 x 10/100 Mbps ports (RJ-45) with integrated NAT router and auto-detection and support for straight through or crossover cables
LED Indicators Power, WAN, LAN, Phone, and Line
Reset Button Factory reset button
Voice Codec G.711 Annex I (PLC) and Annex II (VAD/CNG format), G.723.1A, G.729A/B/E, G.728, G.726-40/32/24/16, iLBC
Voice over Packet Capabilities Voice Activity Detection (VAD) with Comfort Noise Generation (CNG) and Packet Loss Concealment (PLC), Dynamic Jitter Buffer, G.168 compliant Line Echo Cancellation
Fax over IP T.38 compliant group 3 fax relay up to 14.4 kbps, fax datapump V.17, V.19, V.27ter, V.29 for T.38 fax relay
DHCP Server Yes, can operate in NAT router or switched mode
Network Protocols TCP/UDP/IP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, PPPoE, STUN
QoS (Quality of Service) Support Layer 2 (802.1Q VLAN, 802.1p), Layer 3 QoS (ToS, DiffServ)
IP Signaling SIP (RFC 3261), SIP over TCP/TLS, SRTP, up to 2 SIP account profiles, symmetric and asymmetric RTP/codec in any call sessions
DTMF Method RFC2833, and/or SIP INFO
Provisioning & Management TFTP, HTTP, HTTPS, Telnet, secure and automated provisioning system for large deployment, syslog
Power Supply Output: 12 VDC, 0.5 A
Input: 100-240 VAC, 50/60 Hz
Environmental Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: 10 to 130°F / 50 to 266°C
Humidity: 10 to 90% (non-condensing)
Short and Long Haul Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
Caller ID REN3: Up to 150 ft / 45.7 m on 24 AWG line
Polarity Reversal / Wink Yes
EMC FCC/CE, EN55022/EN55024 and FCC part 15 Class B
Safety UL
Dimensions 0.98 x 4.53 x 2.95" / 25 x 115 x 75 mm
Weight Not specified by manufacturer
Packaging Info
Package Weight 0.7 lb
Box Dimensions (LxWxH) 6.5 x 4.9 x 2.6"
The user manual for the Grandstream Networks HT503 HandyTone Analog Telephone HT503 can be downloaded in .pdf format if it did not come with your new voip accessories, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Grandstream Networks users keep a unique electronic library for Grandstream Networks voip accessoriess, where you can use our link to download the user manual for the Grandstream Networks HT503 HandyTone Analog Telephone HT503.

The user manual lists all of the functions of the Grandstream Networks HT503 HandyTone Analog Telephone HT503, all the basic and advanced features and tells you how to use the voip accessories. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Grandstream Networks service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Grandstream Networks HT503 HandyTone Analog Telephone HT503. User manuals are also available on the Grandstream Networks website under Computers & Solutions - Networking - VoIP Accessories.
