User manual for the Grass Valley Storm 3G Hardware Card 600889

The user manual for the Grass Valley Storm 3G Hardware Card 600889 provides necessary instructions for the proper use of the product Professional Video - Post Production - Computer Hardware.

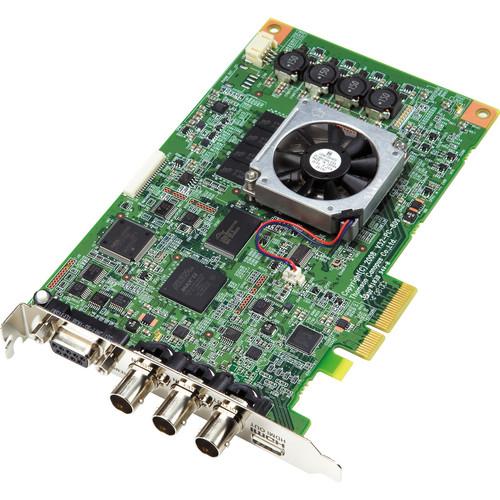

The Grass Valley Storm 3G Hardware Card is a PCI Express card-based hardware that allows you to perform multi-format 3G-SDI (serial digital interface) editing and preview your projects in real-time using HDMI monitors. It also features RS-422 control and reference sync input.

Besides reference input support for blackburst and tri-level sync support, the 3G Storm Card also features machine control-based external VTR ingest. In addition, optional VTR emulation software allows you to control an Edius workstation like a VTR for direct playout from the workstation. Precisely synchronized full resolution preview of effects and content are available from the Edius timeline.

You can use the hardware board for handling a mix of high-definition and standard-definition (HD and SD) video content, video, audio, title, graphics layers, and any combination of real-time effects. In addition, the Storm 3G board also offers live, complete, and high resolution HD/SD video output. Operating systems such as Windows 7 (32/64-bit) and Windows Vista (32/64-bit), and Windows XP (32-bit) are supported by the system.
If you own a Grass Valley computer hardware and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Grass Valley Storm 3G Hardware Card 600889 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Grass Valley  Storm 3G Hardware Card 600889Download user manual for Grass Valley Storm 3G Hardware Card 600889
(PDF file, 2.76 MB)
Additional parameters of the Grass Valley Storm 3G Hardware Card 600889:
Specifications
    Host Bus Interface PCI Express Rev. 1.1 x4 lane
    Video Formats Video Formats (Input/Output) (3G-SDI): 1920x1080p50/59.94
    1920x1080i50/59.94
    1920x1080psF23.98/24/25/29.97
    1280x720p50/59.94
    720x486i59.94
    720x576i50

    Video Formats (Output) (mini HDMI): 1920x1080p50/59.94
    1920x1080i50/59.94
    1280x720p50/59.94
    720x480i59.94
    720x576i50
    720x480p59.94
    720x576p50
    Output Connector Video: SMPTE-292M, SMPTE-259M-C
    Audio: SMPTE-299M, SMPTE-272M-A
    Timecode : LTC/VITC Packet (HD), D-VITC (SD)
    Mini HDMI 1 port (HDCP not supported): Video: YCbCr 4:2:2 or RGB 4:4:4 (8-bit/10-bit), Audio: LPCM 8-channel (24-bit/48 kHz)
    Input Connector 3G-SDI: Video: SMPTE-292M, SMPTE-259M-C
    Audio: SMPTE-299M, SMPTE-272M-A
    Timecode: VITC Packet (HD), D-VITC (SD)
    Audio Formats LPCM 48 kHz/24-bit
    Output Connectors Mini HDMI LPCM 8-channel
    3G-SDI embedded audio
    Reference Input BNC: Black Burst or Tri-Level Sync
    Control Machine Control: 9-pin D-Sub: RS-422A (Master/Slave)
    Power Requirements +12V: 1.6A, +3.3V: 0.5A
    Compliance CE, FCC CLASS B, C-Tick
    System Requirements Any Intel Core 2 or Core iX CPU. Intel or AMD single core CPU with a 3 GHz processor speed or faster (multiple CPUs and/or multi-core CPUs are recommended). SSE2 and SSE3 instruction set supported
    1 GB RAM (2 GB or more recommended)
    One free PCI Express x1 bus slot
    800 MB or more space required for software installation
    Drive with ATA100/7,200 rpm or faster capable of sustaining at least 20 MB/s data transfer: Available hard disk space should be twice the size of the file to be edited, A RAID stripe set of two or more hard disk drives is required for multiple HD stream output
    A graphics card with at least 256 MB of graphics memory (512 MB recommended) with support for Direct3D 9.0c or later, and PixelShader Model 3.0 or later is required (PixelShader Model 4.0 or later recommended)
    Sound card with WDM driver support required
    DVD-ROM drive is required for software installation. For writing onto DVD or Blu-ray disc, a compatible drive is required
    Free USB port (1.1 or higher) is required for security key
    Windows XP (SP3 or later, 32-bit)
    Windows Vista (SP1 or later, 32-bit or 64-bit)
    Windows 7 (32-bit or 64-bit)
    Dimensions 4.38 x 6.60" (111.15 x 167.65 mm)
    Packaging Info
    Package Weight 1.2 lb
    Box Dimensions (LxWxH) 9.1 x 6.8 x 2.8"
