User manual for the Harman Kardon AVR 3700 7.2-Channel Wi-Fi Network AV AVR 3700
The user manual for the Harman Kardon AVR 3700 7.2-Channel Wi-Fi Network AV AVR 3700 provides
necessary instructions for the proper use of the product TVs & Entertainment - Receivers & Amplifiers - Receivers.

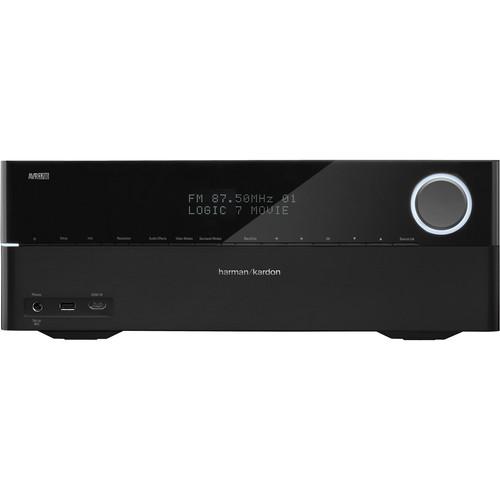

Experience powerful audio and video performance with the Harman Kardon AVR 3700 7.2-Channel Wi-Fi Network AV Receiver. This receiver features 7.2-channel speaker output and delivers up to 125W per channel for robust multi-channel sound. Built-in Wi-Fi allows you to use DLNA technology to wirelessly connect to audio sources such as computers, smartphones and tablets. An Ethernet port is also available for wired high-speed Internet connections. AirPlay technology is also onboard for streaming music from compatible devices like iPods, iPhones and iPads. You can also utilize the receiver's front USB port to connect additional audio sources.
The Harman Kardon AVR 3700 has multiple connection options including eight HDMI inputs and two HDMI outputs for interfacing high-resolution components. In addition to HDMI 3D and 4K video pass-through, you can upscale lower resolution video sources to near-4K quality. The integrated high-definition user interface allows you to intuitively navigate the receiver's menu system. Built-in high-resolution audio support allows you to take advantage of dynamic surround sound formats like DTS-HD Master Audio and DolbyTrueHD.
|
If you own a Harman Kardon receivers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Harman Kardon AVR 3700 7.2-Channel Wi-Fi Network AV AVR 3700 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Harman Kardon AVR 3700 7.2-Channel Wi-Fi Network AV AVR 3700:
| Channels | 7.2 | | Power Output | Stereo Mode Continuous Average Power: 125 W per channel, 20 Hz - 20 kHz, <0.07% THD, both channels driven at 8 ohms, 6 ohm certified
Multichannel Power: 125 W per channel, 20 Hz - 20 kHz, <0.07% THD, two channels driven at 8 ohms, 6 ohm certified | | Audio Decoding | Dolby TrueHD
Dolby Digital Plus
DTS-HD Master Audio | | Bandwidth | 1 W (+0 dB / -3dB): 10 Hz - 130 kHz | | Input Sensitivity and Impedance | Line-In: 200 mV / 47k ohms | | Signal-to-Noise Ratio | IHF-A: 100 dB | | Adjacent Channel Isolation | Dolby Pro Logic I/II: 40 dB
Dolby Digital: 55 dB
DTS: 55 dB | | Other | High Instantaneous Current Capability (HCC): ±45 amps
Transient Intermodulation Distortion (TIM): Unmeasurable
Slew rate: 40 V / μsec | | Frequency Range | 87.5 MHz - 108.0 MHz | | Usable Sensitivity | IHF: 1.3 μV / 13.2 dBf | | Signal-to-Noise Ratio | Mono / Stereo: 70 db / 68 dB | | Distortion | Mono / Stereo: 0.2% / 0.3% | | Stereo Separation | 40 dB at 1 kHz | | Selectivity | ±400 kHz: 70 dB | | Image Rejection | 80 db | | IF Rejection | 90 db | | Frequency Range | 520 kHz - 1,720 kHz | | Signal-to-Noise Ratio | 45 dB | | Usable Sensitivity | Loop: 500 μV | | Distortion | 1 kHz: 50%, mod 0.8% | | Selectivity | ±10 kHz: 30 dB | | Television System | NTSC | | Input Level and Impedance | 1 Vp-p / 75 ohms | | Output Level and Impedance | 1 Vp-p / 75 ohms | | Frequency Response | Composite Video: 10 Hz - 8 MHz (-3 dB) | | 3D Support | Yes | | Audio Return Channel (ARC) | Yes | | HDMI CEC | Yes | | Deep Color | Yes | | Upscaling | Yes | | Pass-Through | Yes | | Wi-Fi | Yes, 802.11 b/g | | DLNA Certified | Yes, 1.5 | | AirPlay | Yes | | Input | 1 x USB
1 x Headphones / Setup Microphone Combo
8 x HDMI
2 x Digital Optical
1 x Digital Coaxial
1 x Component Video
2 x Composite Video
2 x Stereo RCA
1 x IR
1 x Zone 2 IR | | Output | 2 x HDMI
1 x Composite Video
1 x RCA Stereo (Zone 2)
1 x RCA Stereo (Record)
1 x Trigger
1 x Zone 2 IR
1 x Center Pre-Out
1 x Front Left + Right Pre-Out
1 x Surround Left + Right Pre-Out
1 x Surround Back / Zone 2 / Front Height Left + Right Pre-Out
2 x Subwoofer | | Other Connectors | 7 x Left + Right Speaker
1 x Wi-Fi Antenna
1 x Ethernet
1 x AM / Ground
1 x FM
1 x RS-232
1 x AC Power | | Graphical User Interface | Yes | | Power Requirement | 120 VAC, 60 Hz | | Power Consumption | Idle: 120 W
Maximum: 1,405 W (7-channels driven) | | Dimensions | 17.3 x 6.5 x 15" (439 x 165 x 381 mm) | | Weight | 17.6 lb (8 kg) | | Package Weight | 20.5 lb | | Box Dimensions (LxWxH) | 22.0 x 18.5 x 11.0" | |
