User manual Harman Kardon HK 3770 2-Channel Network Receiver HK3770AM

Operating instructions and pdf manual for use - Harman Kardon HK 3770 2-Channel Network Receiver HK3770AM User manual, User manual Harman Kardon HK 3770 2-Channel Network Receiver HK3770AM, Harman, Kardon, HK, 3770, 2-Channel, Network, Receiver, HK


User manual for Harman Kardon HK 3770 2-Channel Network Receiver HK3770AM

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.

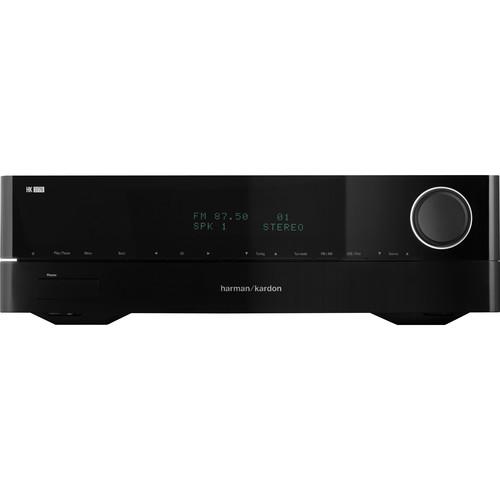

Harman Kardon HK 3770 2-Channel Network Receiver HK3770AM
  • Manufacturer: Harman Kardon
  • Basic description and contents of package
  • Product classification: TVs & Entertainment - Receivers & Amplifiers - Receivers
  • Safety instructions
  • Startup and operation of the receivers
  • Tips for setting up your Harman Kardon
  • Settings and expert assistance
  • Contact Harman Kardon service
  • Troubleshooting
  • Warranty information
  • Price: 450 USD
We recommend checking out our discussion threads on the Harman Kardon HK 3770 2-Channel Network Receiver HK3770AM, which address similar problems with connecting and setting up Receivers Harman Kardon.



User manual for the Harman Kardon HK 3770 2-Channel Network Receiver HK3770AM

The user manual for the Harman Kardon HK 3770 2-Channel Network Receiver HK3770AM provides necessary instructions for the proper use of the product TVs & Entertainment - Receivers & Amplifiers - Receivers.

The Harman Kardon HK 3770 2-Channel Network Receiver delivers powerful stereo performance in a compact design. This receiver features 2-channel speaker output and delivers up to 120W per channel and features a subwoofer output. Integrated Bluetooth technology allows you stream audio from other Bluetooth-enabled devices such as smartphones and tablets. Built-in Ethernet connectivity allows you to use DLNA technology to connect to your home network for sharing content such as music, photos and videos. You can also use this receiver's Internet connectivity to access Internet streaming radio. The built-in digital AM and FM tuner allows you to listen to free over-the-air content; AM and FM antennas are included.

The Harman Kardon HK 3770 is equipped multiple connection options for interfacing audio components. Five stereo RCA inputs are available for connecting a variety of analog audio sources, in addition to a phono input for connecting a turntable. A USB, two digital optical and a digital coaxial input are also available for connecting additional audio sources such as MP3 players and thumb drives. For enhanced system control, the Harman Kardon Remote app is available for controlling your receiver from compatible Android and iOS devices. A standard remote control is also included with the receiver.
If you own a Harman Kardon receivers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Harman Kardon HK 3770 2-Channel Network Receiver HK3770AM in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Harman Kardon HK 3770 2-Channel Network Receiver HK3770AMDownload user manual for Harman Kardon HK 3770 2-Channel Network Receiver HK3770AM
(PDF file, 1.15 MB)
Additional parameters of the Harman Kardon HK 3770 2-Channel Network Receiver HK3770AM:
Specifications
    Audio Section
    Channels 2
    Power Output 120 W x 2 at 8 ohms, 20 Hz - 20 kHz, <0.07% THD, with all channels driven simultaneously
    Signal-to-Noise Ratio IHF-A: 100 dB
    Current ±40 amps
    Frequency Response 10 Hz - 130 kHz (+0 dB / 3 dB) at 1 W
    FM Section
    Frequency Range 87.5 MHz - 108.0 MHz
    Usable Sensitivity IHF: 1.3 μV / 13.2 dBf
    Signal-to-Noise Ratio Mono / Stereo: 70 db / 68 db
    Distortion Mono / Stereo: 0.2% / 0.3%
    Stereo Separation 40 dB at 1 kHz
    Selectivity ±400 kHz: 70 dB
    AM Section
    Frequency Range 520 kHz - 1,710 kHz
    Signal-to-Noise Ratio 38 db
    Usable Sensitivity Loop: 500 μV
    Distortion 1 kHz, 50% Mod: 1.0%
    Selectivity ±10 kHz: 30 dB
    Connectivity
    DLNA Certified Yes, 1.5
    Bluetooth Yes
    Input 1 x USB
    2 x Digital Optical
    1 x Digital Coaxial
    5 x Stereo RCA
    1 x Phono
    1 x IR
    Output 1 x Stereo RCA (record)
    1 x IR
    1 x Trigger
    1 x Subwoofer
    1 x Headphone
    Other Connectors 4 x Left + Right Speaker
    1 x Ethernet
    1 x AM / Ground
    1 x FM
    1 x Signal Ground
    General
    Power Requirement 120 VAC, 60 Hz
    Power Consumption Standby: <0.5 W
    Maximum: 480 W
    Dimensions (WxHxD) 17.3 x 4.8 x 11.8" (439 x 122 x 300 mm)
    Weight 13.2 lb (6 kg)
    Packaging Info
    Package Weight 14.1 lb
    Box Dimensions (LxWxH) 21.5 x 15.7 x 8.7"
    The user manual for the Harman Kardon HK 3770 2-Channel Network Receiver HK3770AM can be downloaded in .pdf format if it did not come with your new receivers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Harman Kardon users keep a unique electronic library for Harman Kardon receiverss, where you can use our link to download the user manual for the Harman Kardon HK 3770 2-Channel Network Receiver HK3770AM.

    The user manual lists all of the functions of the Harman Kardon HK 3770 2-Channel Network Receiver HK3770AM, all the basic and advanced features and tells you how to use the receivers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Harman Kardon service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Harman Kardon HK 3770 2-Channel Network Receiver HK3770AM. User manuals are also available on the Harman Kardon website under TVs & Entertainment - Receivers & Amplifiers - Receivers.
