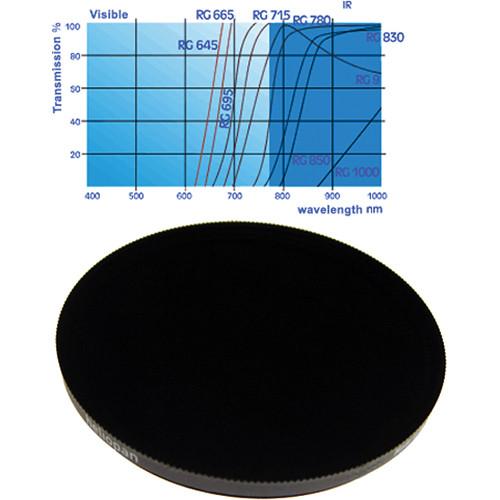

Click to enlarge image
We recommend checking out our discussion threads on the Heliopan 36mm RG 830 (87C) Infrared Filter 703664,
which address similar problems with connecting and setting up Infrared & UV Photography Heliopan.
User manual for the Heliopan 36mm RG 830 (87C) Infrared Filter 703664
The user manual for the Heliopan 36mm RG 830 (87C) Infrared Filter 703664 provides
necessary instructions for the proper use of the product Photography - Filters - Infrared & UV Photography.
The Heliopan 36mm RG 830 (87C) Infrared Filter corresponds to a Wratten 87C filter is designed to help capture images of how a subject reflects or transmits infrared light.
Infrared light waves occupy the space in the electromagnetic spectrum behind visible light due to their longer wavelengths. Many surfaces and materials react to, or emit infrared light waves differently than visible light waves, which provide the potential for photographs of subjects or subject properties that are otherwise invisible to the human eye. Such images require an infrared-sensitive medium such as infrared film or a digital photographic sensor which may be more effective when used without the infrared-blocking filters that are frequently built over them.
Conventional light sources such as the sun, photographic strobes, or incandescent lighting may be used to provide infrared illumination. However, because infrared films or digital photographic sensors can be more sensitive to the relatively higher energy and shorter-wavelength visible light those sources also emit, the effects of infrared light can be otherwise obscured. The Heliopan 36mm RG 830 (87C) Infrared Filter makes it possible to capture images of how subjects are illuminated by infrared light by blocking near-infrared, visible, and ultraviolet light waves while allowing approximately 85% of infrared light waves 830nm or greater into the lens it is mounted onto.
This filter is constructed from Schott glass for increased optical clarity and features a thin brass filter ring to minimize the potential for vignetting while enhancing durability and jamming prevention.
If you own a Heliopan infrared & uv photography and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Heliopan 36mm RG 830 (87C) Infrared Filter 703664 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Heliopan 36mm RG 830 (87C) Infrared Filter 703664:
Specifications
Type
Infrared Filter
Size
36 mm
Density
~2.3
Filter Factor
~200 (~7.6 stops)
Multi-Coated
Yes
Effect
Helps provide the ability to capture images of subjects illuminated only by infrared light by blocking accompanying near-infrared, visible, and ultraviolet light
Construction
Schott glass
Front Filter Thread Size
36 mm
Front Lens Cap Size
36 mm
The user manual for the Heliopan 36mm RG 830 (87C) Infrared Filter 703664 can be downloaded in .pdf
format if it did not come with your new infrared & uv photography, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Heliopan users keep a unique electronic library
for Heliopan infrared & uv photographys,
where you can use our link to download the user manual for the Heliopan 36mm RG 830 (87C) Infrared Filter 703664.
The user manual lists all of the functions of the Heliopan 36mm RG 830 (87C) Infrared Filter 703664,
all the basic and advanced features and tells you how to use the infrared & uv photography.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Heliopan service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Heliopan 36mm RG 830 (87C) Infrared Filter 703664. User manuals are also
available on the Heliopan website under Photography - Filters - Infrared & UV Photography.
