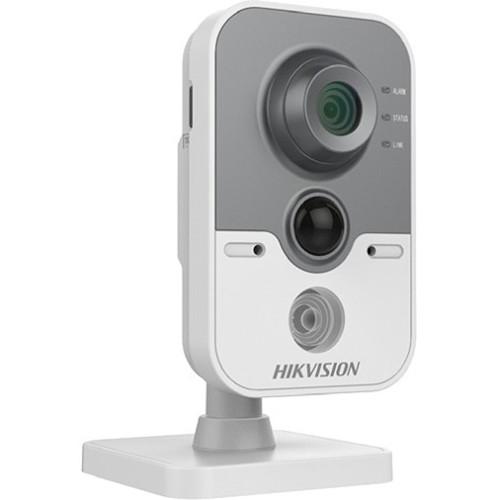

Hikvision DS-2CD2412F-IW 1.3MP Day/Night IR Cube DS-2CD2412F-IW Hikvision DS-2CD2412F-IW 1.3MP Day/Night IR Cube DS-2CD2412F-IW Hikvision DS-2CD2412F-IW 1.3MP Day/Night IR Cube DS-2CD2412F-IW
Click to enlarge image

We recommend checking out our discussion threads on the Hikvision DS-2CD2412F-IW 1.3MP Day/Night IR Cube DS-2CD2412F-IW, which address similar problems with connecting and setting up Wireless Cameras Hikvision.



User manual for the Hikvision DS-2CD2412F-IW 1.3MP Day/Night IR Cube DS-2CD2412F-IW

The user manual for the Hikvision DS-2CD2412F-IW 1.3MP Day/Night IR Cube DS-2CD2412F-IW provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wireless Cameras.

The DS-2CD2412F-IW 1.3MP Day/Night IR Cube Wireless Network Camera from Hikvision uses a 1/3" progressive scan CMOS sensor and 4mm fixed lens to capture images up to a resolution of 1280 x 960. All thanks to the built-in IR LEDs, it can capture images at a minimum illumination of 0 lux up to a distance of 32.8'. This camera's management interface features digital wide dynamic range technology to compensate for issues of extreme backlighting, and 3D digital noise reduction to enhance digital image processing while reducing grain and distortion. The camera also supports storage via SD/SDHC/SDXC card up to 64GB (sold separately).
If you own a Hikvision wireless cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Hikvision DS-2CD2412F-IW 1.3MP Day/Night IR Cube DS-2CD2412F-IW in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Hikvision DS-2CD2412F-IW 1.3MP Day/Night IR Cube DS-2CD2412F-IW:
Camera
Image Sensor 1/3" progressive scan CMOS
Maximum Image Resolution 1280 x 960
Lens 4 mm @ F 2.0
Shutter Time 1/25 to 1/100,000 sec
Lens Mount M12
Frame Rate 50 Hz: 1280 x 960, 1280 × 720, 704 x 576, 640 x 480 @ 25 fps
60 Hz: 1280 x 960, 1280 x 720, 704 x 576, 640 x 480 @ 30 fps
Minimum Illumination 0.01 lux @ F 1.2 (AGC on)
0 lux with IR
Angle of View 73.1°
Day/Night IR cut filter with auto switch
Image Settings Rotate mode, saturation, brightness, contrast, sharpeness adjustable through client software or web browser
Region of Interest Up to 4 configurable areas
DNR 3D DNR
WDR Mode Digital WDR
Backlight Compensation Zone configurable
PIR Detection Area Angle: 80°
PIR Detection Range 32.8' (10 m)
IR Range 32.8' (10 m)
Compression
Video Compression H.264 / MJPEG
H.264 Profile Main
Bit Rate 32 Kb/s to 16 Mb/s
Audio Compression G.711 / G.726 / MP2L2
Audio Bit Rate G.711 - 64 Kb/s
G.726 - 16 Kb/s
MP2L2 - 32 to 128 Kb/s
Image Settings Rotate mode, Saturation, brightness, contrast, sharpeness adjustable through client software, or web browser
ROI Up to 4 configurable areas
Network
Storage Network storage: Built-in microSD / SDHC / SDXC card slot (up to 64 GB), NAS
Onboard storage: Built-in microSD / SDHC / SDXC card slot (up to 64 GB)
Alarm I/O 1 / 1
Alarm Trigger Motion detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict, storage exception
Protocols TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
System Compatibility ONVIF, PSIA, CGI, ISAPI
General Flickerless, dual stream, heartbeat, mirror, user authentication, video mask, watermark
Communication 1 x RJ-45 10/100 Mb/s ethernet interface
Wi-Fi
Standard IEEE 802.11 b/g/n draft
Frequency 2.4 to 2.4835 GHz
Bandwidth Supports 20 / 40 MHz
Protocols 802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM
OFDM 802.11g/n: 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK, WPS
Transmission Rate 802.11b: 11 Mb/s
802.11g: 54 Mb/s
802.11n: 150 Mb/s
Transmission Range Outdoor: 656.2' (200 m)
Indoor: 164' (50 m)

The indoor transmission rate depends on environment

General
Operating Temperature -22 to 140°F (-30 to 60°C)
Humidity 95% or less (non-condensing)
Power Supply 12 VDC, ±10% / 802.3af PoE

Power supply not included

Power Consumption 5 W maximum
Dimensions 2.6 x 3.6 x 5.2" (66.0 x 91.5 x 131.3 cm)
Weight 399.16 g (0.88 lb)
The user manual for the Hikvision DS-2CD2412F-IW 1.3MP Day/Night IR Cube DS-2CD2412F-IW can be downloaded in .pdf format if it did not come with your new wireless cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Hikvision users keep a unique electronic library for Hikvision wireless camerass, where you can use our link to download the user manual for the Hikvision DS-2CD2412F-IW 1.3MP Day/Night IR Cube DS-2CD2412F-IW.

The user manual lists all of the functions of the Hikvision DS-2CD2412F-IW 1.3MP Day/Night IR Cube DS-2CD2412F-IW, all the basic and advanced features and tells you how to use the wireless cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Hikvision service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Hikvision DS-2CD2412F-IW 1.3MP Day/Night IR Cube DS-2CD2412F-IW. User manuals are also available on the Hikvision website under Surveillance - Surveillance Video - Wireless Cameras.
