User manual for the Hikvision TurboHD 1080p Analog Indoor Dome DS-2CE56D5T-AVFIR
The user manual for the Hikvision TurboHD 1080p Analog Indoor Dome DS-2CE56D5T-AVFIR provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired Analog & HD Cameras.

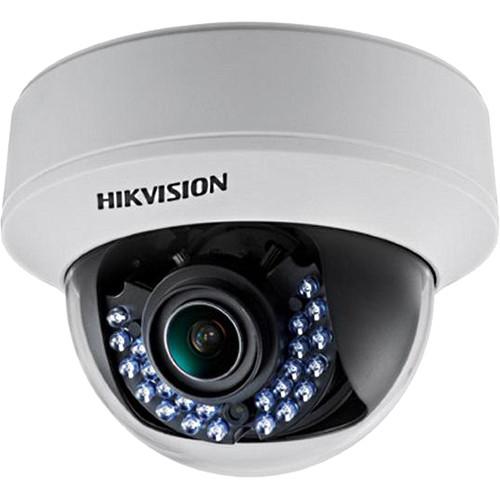

PAL and NTSC compatible, the TurboHD 1080p Analog Indoor Dome Camera from Hikvision offers various features for use in a myriad of environments. Using a 1/3" CMOS image sensor and a 2.8 to 12mm varifocal lens, the camera can be installed and adjusted according to your desires for providing 1080p HD video footage. With integrated IR LEDs, the camera can record footage up to 98' away even in total darkness. The onscreen display menu allows you to make quick changes to the recording and light settings of the camera for increasing image sharpness and brightness. Backlight compensation, digital noise reduction, auto gain composure, and adjustable white balance features assist in providing clear video footage, regardless of changing light levels.
If you own a Hikvision wired analog & hd cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Hikvision TurboHD 1080p Analog Indoor Dome DS-2CE56D5T-AVFIR in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Hikvision TurboHD 1080p Analog Indoor Dome DS-2CE56D5T-AVFIR:
Specifications
Image Sensor
1/3" progressive scan CMOS
Signal System
PAL/NTSC
Effective Pixels (H x V)
1920 x 1080
Lens
2.8 to 12mm @ f/1.4
Frame Rate
25/30 fps
Minimum Illumination
0.01 lux, f/1.2 0.014 lux, f/1.4 0 with IR
Shutter Speed
1/25 to 1/50,000 sec (NTSC)
Horizontal Angle of View
92 to 32°
Adjustments
Pan: 0 to 355° Tilt: 0 to 180° Rotation: 0 to 355°
IR Range
98.4' / 30.0 m
Day/Night
True
Wide Dynamic Range
120 dB
Privacy Masking
Up to 8 zones
Motion Detection
Up to 4 zones
Synchronization
Internal
OSD and System Menu Display
Up the coax
Output
HD-Video: 1 x Analog HD CVBS: 1 Vpp composite (75 ohms, BNC)
S/N Ratio
>52 dB
Power Supply
12 VDC, 24 VAC
Power Consumption
12 VDC, 4.5 W 24 VAC 6.5 W
Operating Temperature & Humidity
-22 to 140°F / -30 to 60°C, 90% non-condensing humidity
The user manual for the Hikvision TurboHD 1080p Analog Indoor Dome DS-2CE56D5T-AVFIR can be downloaded in .pdf
format if it did not come with your new wired analog & hd cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Hikvision users keep a unique electronic library
for Hikvision wired analog & hd camerass,
where you can use our link to download the user manual for the Hikvision TurboHD 1080p Analog Indoor Dome DS-2CE56D5T-AVFIR.
The user manual lists all of the functions of the Hikvision TurboHD 1080p Analog Indoor Dome DS-2CE56D5T-AVFIR,
all the basic and advanced features and tells you how to use the wired analog & hd cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Hikvision service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Hikvision TurboHD 1080p Analog Indoor Dome DS-2CE56D5T-AVFIR. User manuals are also
available on the Hikvision website under Surveillance - Surveillance Video - Wired Analog & HD Cameras.
