User manual Hitachi CP-WX4041WN 4000-Lumen WXGA LCD Projector CP-WX4041WN

Operating instructions and pdf manual for use - Hitachi CP-WX4041WN 4000-Lumen WXGA LCD Projector CP-WX4041WN User manual, User manual Hitachi CP-WX4041WN 4000-Lumen WXGA LCD Projector CP-WX4041WN, Hitachi, CP-WX4041WN, 4000-Lumen, WXGA, LCD, Proje


User manual for Hitachi CP-WX4041WN 4000-Lumen WXGA LCD Projector CP-WX4041WN

Hitachi CP-WX4041WN 4000-Lumen WXGA LCD Projector CP-WX4041WN
  • Manufacturer: Hitachi
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your Hitachi
  • Settings and expert assistance
  • Contact Hitachi service
  • Troubleshooting
  • Warranty information
Hitachi CP-WX4041WN 4000-Lumen WXGA LCD Projector CP-WX4041WN Hitachi CP-WX4041WN 4000-Lumen WXGA LCD Projector CP-WX4041WN

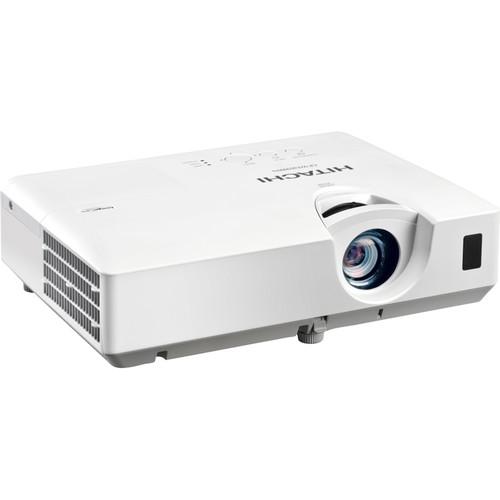

Click to enlarge image

We recommend checking out our discussion threads on the Hitachi CP-WX4041WN 4000-Lumen WXGA LCD Projector CP-WX4041WN, which address similar problems with connecting and setting up Multimedia Projectors Hitachi.



User manual for the Hitachi CP-WX4041WN 4000-Lumen WXGA LCD Projector CP-WX4041WN

The user manual for the Hitachi CP-WX4041WN 4000-Lumen WXGA LCD Projector CP-WX4041WN provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

Designed for use in classrooms and conference rooms, the Hitachi CP-WX4041WN 4000-Lumen WXGA LCD Projector has a native resolution of 1280 x 800 and a throw ratio ranging from 1.5 to 1.8:1. It has two HDMI, two VGA, and composite video inputs; one of the two VGA inputs also serves as an output for loop-through. Its built-in 16W speaker will provide audio, so external audio may not be necessary. It is controllable via Ethernet, RS-232, or the included IR remote.
If you own a Hitachi multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Hitachi CP-WX4041WN 4000-Lumen WXGA LCD Projector CP-WX4041WN in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Hitachi CP-WX4041WN 4000-Lumen WXGA LCD Projector CP-WX4041WN:
Specifications
Image Display
Display System 3-Chip LCD
Native Resolution WXGA - 1280 x 800
Supported Resolutions VGA
SVGA
XGA
WXGA
WXGA+
SXGA
SXGA+
UXGA
MAC16
Supported Formats Not Specified By Manufacturer
Format NTSC 4.43
PAL M, N
SECAM
HDTV Compatibility 480i
480p
576i
720p
1080i
1080p
Pixels 3,072,000
Brightness Normal Mode: 4000 Lumens
Aspect Ratio Native: 16:10
Supported: 4:3
Supported: 16:9
Dynamic Contrast Ratio 10000:1
Color Range 16.7 Million
Scan Not Specified By Manufacturer
Lens
Focus Not Specified By Manufacturer
Lens F 1.9 - 2.3 (f = 19 - 23 mm)
Zoom Manual: 1.2x
Throw Distance 35 - 453.0" (88.9 - 1150.6 cm)
Throw Ratio 1.5 - 1.8:1
Projection Size 30 - 300" / 76.20 - 762.00 cm (Max Diagonal: 300" / 762.00 cm)
Features
Keystone Correction Yes, Horizontal: ± 30°
Yes, Vertical: ± 30°
Ceiling Mountable Yes
Built-in Speaker Yes, 16 W
Closed Captioning Yes
Picture Modes Not Specified By Manufacturer
Input/Output Connectors
Inputs/Outputs 2x HDMI Audio/Video (Input)
1x 15-pin VGA Video (Input)
1x 15-pin VGA Video (Input/Output)
1x RCA Composite Video (Input)
2x 1/8" (3.5 mm) Mini Audio (Input)
1x RCA Stereo (L/R) Audio (Input)
1x 1/8" (3.5 mm) Mini Microphone (Input)
1x 1/8" (3.5 mm) Mini Audio (Output)
1x Ethernet LAN (Input)
2x USB Type-A Female (Input/Output)
1x USB Control (Input)
1x RS-232C Control (Input)
General
Lamp (Bulb) Not Specified By Manufacturer
Replacement Lamp DT01481
Light Source Not Specified By Manufacturer
Color Temperature Not Specified By Manufacturer
Watts 225 W
Life Normal Mode: 5000 Hours
Eco+ Mode: 10000 Hours
Remote Control Yes
Security Cable Lock Slot
Password Protection
Security Bar
Languages None
Power Requirements 100-240 VAC, 50/60 Hz
Power Consumption Normal Mode: 330 W
Temperature Operating
41 to 95°F (5 to 35°C)
Dimensions (WxHxD) 12.6 x 3.4 x 9.7" / 32.0 x 8.6 x 24.6 cm Excluding protruding parts
Weight 6.8 lb / 3.08 kg Approximately
Packaging Info
Package Weight 9.8 lb
Box Dimensions (LxWxH) 14.0 x 12.0 x 6.0"
The user manual for the Hitachi CP-WX4041WN 4000-Lumen WXGA LCD Projector CP-WX4041WN can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Hitachi users keep a unique electronic library for Hitachi multimedia projectorss, where you can use our link to download the user manual for the Hitachi CP-WX4041WN 4000-Lumen WXGA LCD Projector CP-WX4041WN.

The user manual lists all of the functions of the Hitachi CP-WX4041WN 4000-Lumen WXGA LCD Projector CP-WX4041WN, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Hitachi service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Hitachi CP-WX4041WN 4000-Lumen WXGA LCD Projector CP-WX4041WN. User manuals are also available on the Hitachi website under A/V Presentation - Projectors - Multimedia Projectors.
