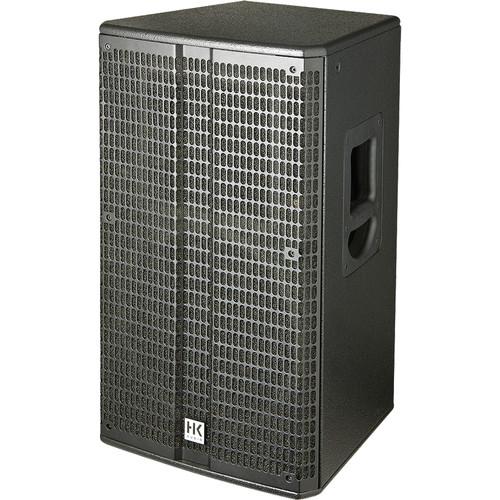

The L5115FA 15" Linear 5 Powered Speaker from HK Audio is a full-range PA system. The speaker housing is made of multi-layer birch plywood and a birch/MDF hybrid, designed to provide endurance and enhanced acoustical qualities to the speaker. Two L5 112 FA speakers can be used to set up a powered full-range system and two subwoofers may be stacked to boost bass response. The L5115FA can serve as a mid/high unit, a stage monitor, and a delay line cab in a distributed sound system.
If you own a HK AUDIO pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the HK AUDIO L5115FA 15" Linear 5 Powered Speaker L5115FA in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the HK AUDIO L5115FA 15" Linear 5 Powered Speaker L5115FA:
Frequency Response +/-3 dB: 57 Hz - 18 kHz
-10 dB: 48 Hz - 20 kHz
Axial Sensitivity HF, 1W/1m:
110 dB full-space
116 dB half space
LF, 1W/1m:
100 dB full-space
106 dB half-space
Maximum SPL @ 10% THD: 129 dB
Peak @ 10% THD: 139 dB
Calc: 139 dB
Amplifier Type Class-D bi-amplified
Power Output 1000 W
Amplifier to driver: 350 W @ 4 Ω
Amplifier to woofer: 650 W @ 4 Ω
Protection Circuits Amplifier: Under-voltage, thermal, short circuit, and over-current protection
Speaker: Subsonic 24 dB / octave peak limiter
Power Consumption 3 A / 230 V nominal pursuant to EN600056
Input Sensitivity +4 dBu @ Gain center-notched / L5 system level
Connectors 2 x XLR, input
2 x XLR, thru
1 x XLR, mix out
Main Connector 1 x IEC socket with V-Lock cord retainer
Woofer 15" with 3" voice coil
Driver 1" with 1.75" voice coil (16 Ω)
Horn Asymmetrical 60 - 90° x 55°, rotatable
Crossover Frequency 1.65 kHz, 24 dB - octave active
Pole Mount DuoTilt 3/7
Rigging Points 3 x M8
Grips 2, integrated
Housing Hybrid (birch multiplex / MDF)
Grille 2 mm metal, backed with black acoustic foam
Finish Acrylic enamel, black
Dimensions (W x H x D) 17.7 x 27.9 x 17.7" (44.9 x 70.8 x 45.0 cm)
Weight 67.7 lb (30.7 kg)
