User manual Honeywell equIP Series H4D2F1 1080p Indoor/Outdoor H.264 H4D2F1

Operating instructions and pdf manual for use - Honeywell equIP Series H4D2F1 1080p Indoor/Outdoor H.264 H4D2F1 User manual, User manual Honeywell equIP Series H4D2F1 1080p Indoor/Outdoor H.264 H4D2F1, Honeywell, equIP, Series, H4D2F1, 1080p, Indoo


User manual for Honeywell equIP Series H4D2F1 1080p Indoor/Outdoor H.264 H4D2F1

Honeywell equIP Series H4D2F1 1080p Indoor/Outdoor H.264 H4D2F1
  • Manufacturer: Honeywell
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your Honeywell
  • Settings and expert assistance
  • Contact Honeywell service
  • Troubleshooting
  • Warranty information
  • Price: 708 USD
We recommend checking out our discussion threads on the Honeywell equIP Series H4D2F1 1080p Indoor/Outdoor H.264 H4D2F1, which address similar problems with connecting and setting up Wired IP Cameras Honeywell.



User manual for the Honeywell equIP Series H4D2F1 1080p Indoor/Outdoor H.264 H4D2F1

The user manual for the Honeywell equIP Series H4D2F1 1080p Indoor/Outdoor H.264 H4D2F1 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

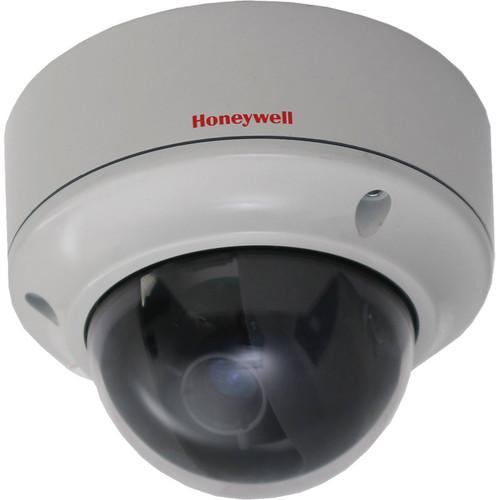

The gray equIP Series H4D2F1 Rugged Indoor/Outdoor H.264 True Day/Night Minidome Camera from Honeywell is a fixed, IP network camera equipped with a 3 to 9mm Motorized Focus and Zoom (MFZ) lens. This compact and vandal-resistant camera captures crisp images at minimal bandwidth and offers 720p resolution at full frame rate.
If you own a Honeywell wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Honeywell equIP Series H4D2F1 1080p Indoor/Outdoor H.264 H4D2F1 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Honeywell equIP Series H4D2F1 1080p Indoor/Outdoor H.264 H4D2F1:
Video Standard NTSC / PAL
Scanning System Progressive scan
Image Sensor 1/2.7" CMOS
Number of Pixels H x V: 1920 × 1080
Minimum Illumination 0.18 lux color/0.15 lux B/W @ 50 IRE, F1.2
0.11 lux color/0.09 lux B/W @ 30 IRE, F1.2
Lens Control Automatic: DC iris level 1 to 25
Video Output 1 Vpp @ 75 Ω (AUX)
S/N Ratio 50 dB or more (AGC off)
AGC (Automatic Gain Control) Off/On, selectable (20 to 40 dB)
Electronic Shutter Automatic
NTSC: 1/30 to 1/130,000 sec
PAL: 1/25 to 1/130,000 sec
Lens Type TDN (True Day/Night)
3 to 9 mm Motorized Focus and Zoom, F1.2
Angle of View Horizontal (Wide x Tele): 117.3 x 38.0°
Vertical (Wide x Tele): 63.0 x 21.4°
White Balance AWC, Manual, WBC Push
Audio Two-Way: Line in/out
Input Voltage 24 VAC, PoE IEEE 802.3af
Input Range 17 to 28 VAC
Electrical Surge Suppression: 1.5 kW transient
Power Consumption 5 W (maximum) 24 VAC
PoE: PD Type 1, Class 2
Integration Open IP: ONVIF Profile S support and open API for real interoperability between Honeywell and other manufacturers' IP-enabled security devices
Video Compression Dual stream H.264 and MJPEG
Resolution Primary Stream
1920 x 1080
Bitrate H.264 (Typical): 3.0 Mb/s, 30 / 25 fps, 31.6 GB storage/day

1280 x 720
Bitrate H.264 (Typical): 1.4 Mb/s, 30 / 25 fps, 14.8 GB storage/day

800 x 450
Bitrate H.264 (Typical): 0.75 Mb/s, 30 / 25 fps, 7.91 GB storage/day

640 x 360
Bitrate H.264 (Typical): 0.4 Mb/s, 30 / 25 fps, 4.22 GB storage/day

320 x 180
Bitrate H.264 (Typical): 0.2 Mb/s, 30 / 25 fps, 2.11 GB storage/day

Actual bitrate is scene and motion dependent with the H.264 stream.

Frame Rate Up to 30 / 25 fps video in all resolutions
Video Streaming Dual Streaming: H.264 and/or H.264/MJPEG
Controllable frame rate and bandwidth
Constant or variable bit rate
Security Multiple user access levels with password protection
Video Access From Web Browser Full control of all camera settings available to administrator
Browser Requirements Minimum
Pentium IV CPU 3.1 GHz or faster
1 GB RAM (32-bit) or 2 GB RAM (64-bit) Windows XP SP3, 2003 Server R2 (32-bit), 7 (32-/64-bit), Vista SP1, and 2008 R2 (64-bit), Internet Explorer 8 or 9, Mozilla Firefox, and Google Chrome
Maintenance Installation and Management: Honeywell IP Utility software identifies the IP address, checks status of device, firmware upgrades over HTTP

Honeywell IP Utility software program is downloadable for free from the Honeywell website.

Supported Protocols HTTP, TCP, RTSP, RTP, UDP, ARP, DNS, NTP, RTCP, FTP, ICMP, DHCP, Bonjour, IGMP, SSH

Some development may be required in specific user cases to support some of these protocols in the field as naturally the protocols will mature over time.

Standard ONVIF (Profile S)
Construction Housing: Die cast aluminum
Dome: Polycarbonate
Connector Video Output: 2-pin Molex connector
Power Input: Removable screw block
Network: RJ45 connector
Alarm I/O: Removable screw block
Audio In: Removable screw block
Audio Out: Removable screw block
Rating IP66 and IK10
Temperature Operating: -4 to 122°F (-20 to 50°C)
Storage: -40 to 158°F (-40 to 70°C)
Dimensions (W x H) 6.1 x 4.6" (154.9 x 116.8 mm)
Weight Camera Only: 2.9 lb (1.3 kg)
The user manual for the Honeywell equIP Series H4D2F1 1080p Indoor/Outdoor H.264 H4D2F1 can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Honeywell users keep a unique electronic library for Honeywell wired ip camerass, where you can use our link to download the user manual for the Honeywell equIP Series H4D2F1 1080p Indoor/Outdoor H.264 H4D2F1.

The user manual lists all of the functions of the Honeywell equIP Series H4D2F1 1080p Indoor/Outdoor H.264 H4D2F1, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Honeywell service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Honeywell equIP Series H4D2F1 1080p Indoor/Outdoor H.264 H4D2F1. User manuals are also available on the Honeywell website under Surveillance - Surveillance Video - Wired IP Cameras.
