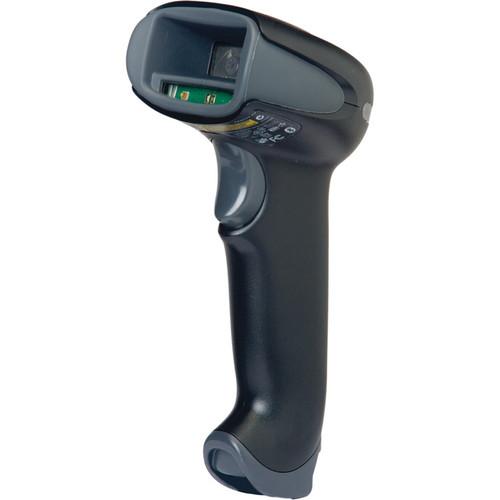

The black Xenon 1902 Wireless Area-Imaging Handheld Bar Code Scanner from Honeywell features a lightweight, ergonomic design that is drop-resistant up to 6 feet. The scanner features a 2.4 GHz wireless receiver with a 33' range and an 1800 mAh battery that can execute up to 50,000 scans between charges. The scanner's design takes the guesswork out of proper positioning and angling. Thanks to its wide angle of coverage (side-to-side, up and down, and tilt), it's easy to learn how to use and will shorten the lines at the register or speed up any other job. The scanner is compatible with 1D, PDF, 2D, Postal and OCR symbologies and can read bar codes from mobile device screens.
If you own a Honeywell barcode scanners and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Honeywell Xenon 1902 Wireless Area-Imaging 1902GSR-2USB-5 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Honeywell Xenon 1902 Wireless Area-Imaging 1902GSR-2USB-5:
Specifications
Scan Pattern
Area Image (838 x 640 pixel array)
Print Contrast
20% minimum reflectance difference
Angle
HD Focus (Horizontal): 41.4° HD Focus (Vertical): 32.2° SR Focus (Horizontal): 42.4° SR Focus (Vertical): 33° ER Focus (Horizontal): 31.6° ER Focus (Vertical): 24.4°
Motion Tolerances
Up to 240 in/s (610 cm/s) for 13 mil UPC at optimal focus
Pitch
45°
Skew
65°
Bar-Code Types
Standard 1D, PDF, 2D, Postal, and OCR symbologies
Performance
5 mil Code 39 (HD): 0 to 4.1" (0 to 104.1 mm) 5 mil Code 39 (SR): 1.1 to 5.3" (27.9 to 134.6 mm) 5 mil Code 39 (ER): 3.7 to 8.0" (94 to 203.2 mm) 13 mil UPC (HD): 0.4 to 6.6" (10.2 to 167.6 mm) 13 mil UPC (SR): 0.4 to 17.3" (10.2 to 439.4 mm) 13 mil UPC (ER): 1.0 to 20.7" (25.4 to 525.8 mm) 20 mil Code 39 (HD): 0.4 to 9.2" (10.2 to 233.7 mm) 20 mil Code 39 (SR): 0.5 to 23.0" (12.7 to 584.2 mm) 20 mil Code 39 (ER): 1.0 to 23.5" (25.4 to 596.9 mm) 6.7 mil PDF417 (HD): 0 to 4.3" (0 to 109.2 mm) 6.7 mil PDF417 (SR): 0.4 to 6.1" (10.2 to 154.9 mm) 6.7 mil PDF417 (ER): 2.8 to 9.2" (71.1 to 233.7 mm) 10 mil DM (HD): 0 to 5.0" (0 to 127 mm) 10 mil DM (SR): 0.5 to 7.5" (12.7 to 190.5 mm) 10 mil DM (ER): 2.5 to 11.3" (63.5 to 287 mm) 20 mil QR (HD): 0.4 to 7.5" (10.2 to 190.5 mm) 20 mil QR (SR): 0.6 to 15.1" (15.2 to 383.5 mm) 20 mil QR (ER): 0.7 to 19.0" (17.8 to 482.6 mm) Resolution 1D Code 39 (HD): 3.0 mil (0.076 mm) Resolution 1D Code 39 (SR): 5.0 mil (0.127 mm) Resolution 1D Code 39 (ER): 5.0 mil (0.127 mm) Resolution 2D DM (HD): 5.0 mil (0.127 mm) Resolution 2D DM (SR): 6.7 mil (0.17 mm) Resolution 2D DM (ER): 7.5 mil (0.191 mm)
Interfaces Supported
USB Keyboard Wedge RS232 IBM 46xx (RS485) Bluetooth
Lux
0 to 100,000 lux (9290 foot-candles)
Wireless Communications
2.4 to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v2.1; Class 2: 33' (10 m) line of sight
Data Transfer Rate
Up to 1.0 Mbps
Durability
Scanner: Withstands 50 drops to concrete from 6.0' (1.83 m) Base: Withstands 50 drops to concrete from 3.3' (1.0 m) on each face
Power Requirements
Li-ion battery
Battery Capacity
1800 mAh
Battery Life
Up to 50,000 scans per charge (approx. 14 hours)
Charging Time
Approx. 4.5 hours
Power
Operating: 5.0 W (0.1 A @ 5.0 V) Standby: 0.5 W (0.1 A @ 5 V)
Certifications
IP41 environmental sealing
Temperature / Humidity
Operating Temperature (Scanner): 32 to 122°F (0 to 50°C) Operating Temperature (Base, Charging): 41 to 104°F (5.0 to 40°C) Operating Temperature (Base, Non-Charging): 32 to 122°F (0 to 50°C) Storage Temperature (Scanner): -40 to 158°F (-40 to 70°C) Storage Temperature (Base): -40 to 158°F (-40 to 70°C) Humidity (Scanner): 0 to 95% Humidity (Base): 0 to 95%
Dimensions (LxWxH)
Scanner: 4.1 x 2.8 x 6.3" (104 x 71 x 160 mm) Base: 5.2 x 4.0 x 3.2" (132 x 102 x 81 mm)
