User manual for the HP 15.6" ZBook Studio G3 Mobile Workstation T6E17UT#ABA

The user manual for the HP 15.6" ZBook Studio G3 Mobile Workstation T6E17UT#ABA provides necessary instructions for the proper use of the product Computers & Solutions - Laptops - Mobile Workstations.

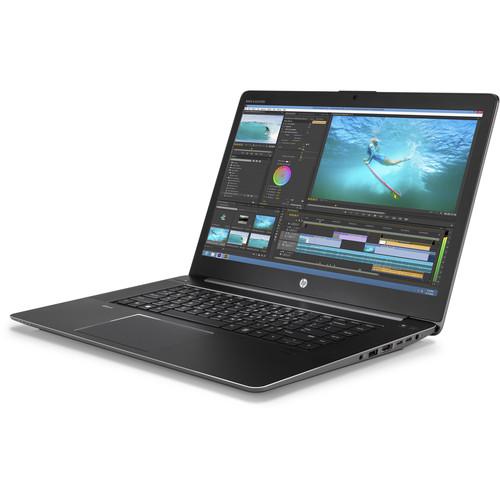

Thin at 0.71" and weighing 4.4 lb, the 15.6" ZBook Studio G3 Mobile Workstation from HP is designed for mobile professionals who require a versatile system with powerful processing and graphics as well as simple scalability that can handle a wide variety of functions. The ZBook Studio G3 will help users stay productive, whether they are at home, at the office, or in the field, and it is powered by a 2.6 GHz Intel Core i7-6700HQ Quad-Core processor that allows you to run multiple applications simultaneously. Using Intel Turbo Boost 2.0 technology, the processor is capable of boosting to 3.5 GHz if more power is needed. The 16GB of 2133 MHz DDR4 RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently-used files and programs.

The 15.6" anti-glare display features an Ultra HD 3840 x 2160 native resolution, which has four times the resolution of a Full HD 1920 x 1080 display. The Ultra HD display also features IPS technology, LED-backlighting, an ultra-wide viewing angle (UWVA), 300 cd/m2 brightness, and a 16:9 aspect ratio. The dedicated NVIDIA Quadro M1000M graphics card has 4GB of discrete GDDR5 RAM and delivers a sharp, clear picture. You'll also be able to output video to an external display at resolutions up to 5120 x 2880 using the system's HDMI and dual Thunderbolt 3 ports.

For storage of your files, this ZBook Studio G3 is equipped with a 512GB Z Turbo Drive PCIe SSD which offers quick access to your data. While the SSD may not have the larger storage capacity of a traditional spinning disk, it contains no moving parts, which helps it to be more resistant against bumps, drops, and other kinds of damage. SSDs also receive less wear and tear than traditional hard drives, as they never come into contact with read and write heads. Additionally, as this SSD connects via PCIe as compared to SATA, it is able to operate with even greater data transfer speeds. It provides sequential reads up to 2,260 MB/s and sequential writes up to 1,600 MB/s.

If you want to add external storage, optical drives, memory card readers, and more, the ZBook Studio G3 offers two USB Type-C connectors that support 40 Gb/s Thunderbolt 3 and 10 Gb/s USB 3.1. There are also two 5 Gb/s USB 3.0 Type-A ports and one USB 3.0 Type-A charging port. Gigabit Ethernet and 802.11a/b/g/n/ac Wi-Fi are also built-in for wired and wireless networking and Bluetooth 4.2 technology will also allow you to connect additional compatible peripherals. So that content from memory cards may be accessed, a built-in SD/SDHC/SDXC card reader supports UHS-II flash media and lets users download content from their digital camera. Other integrated features include a 720p webcam, dual-array microphones, and stereo speakers with Bang & Olufsen HD audio.

The ZBook Studio G3 includes a 150W Slim Smart AC adapter that operates using 100-240 VAC at 47-63 Hz and an HP Long Life 4-cell / 64Wh Lithium-ion prismatic battery that can typically be recharged in 3-5 hours. The installed operating system is Windows 10 Professional (64-bit).

B&H Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Built with power and speed in mind, the Z Series is designed to enhance audio and video post-production workflows and more. Each HP Z series workstation or laptop features a range of top-tier processors and large RAM loadouts. The workstations are built with graphics flexibility in mind as well so that the end consumer can configure the graphics options to their needs, and each unit includes a 3/3/3 warranty – 3-year limited warranty for parts, 3-year limited warranty for labor, and 3 years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-866-625-1175.
If you own a HP mobile workstations and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the HP 15.6" ZBook Studio G3 Mobile Workstation T6E17UT#ABA in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the HP 15.6" ZBook Studio G3 Mobile Workstation T6E17UT#ABA:
Specifications
Performance
Processor Intel Core i7-6700HQ Quad-Core
Base Clock Speed 2.6 GHz
Max Boost Speed 3.5 GHz
L3 Cache 6 MB
System Bus 8 GT/s
Memory Slots 2 x SO-DIMM
Memory Installed: 16 GB
Capacity: 32 GB
Memory Type 2 x 8 GB 2133 MHz DDR4 SDRAM
Graphics Type Dedicated
Graphics Card NVIDIA Quadro M1000M with 4 GB GDDR5 VRAM
Display
Panel Type IPS
Size 15.6"
Aspect Ratio 16:9
Native Resolution 3840 x 2160
Finish Matte
Brightness 300 cd/m2
External Resolution Up to 5120 x 2880
Drives
Storage Capacity 512 GB
Storage Drive 1 x 512 GB SSD; PCIe-Based Flash
Optical Drive None
Input/Output Connectors
Ports 2 x Thunderbolt 3 via USB Type-C
3 x USB 3.0 Type-A
Display 1 x HDMI
Audio 2 x Integrated Speaker
2 x Integrated Microphone
1 x 1/8" (3.5 mm) Headphone/Microphone Combo Jack
Media Card Reader 3-in-1
Media Card Slots SD/SDHC/SDXC
Communications
Network 1 x 10/100/1000 Mbps Gigabit Ethernet (RJ-45)
Wi-Fi 802.11ac; Dual-Band
Bluetooth Bluetooth 4.2
Webcam Yes
720p Video
General
Operating System Windows 10 Pro (64-bit)
Security Kensington Lock Slot, Accepts 3rd Party Security Lock Devices, Infineon TPM Software Professional Package, Fingerprint Reader
Keyboard Type: Standard Notebook Keyboard
Features: Backlight
Pointing Device TouchPad
Battery 4-Cell Lithium-Ion (64 Wh)
Power Requirements 100-240 VAC, 47-63 Hz
Power Supply 150 W
Dimensions (WxHxD) 14.8 x 0.7 x 10.0" / 375.9 x 17.8 x 254.0 mm
Weight 4.4 lb / 2.00 kg
Packaging Info
Package Weight 7.1 lb
Box Dimensions (LxWxH) 22.0 x 12.1 x 3.0"
The user manual for the HP 15.6" ZBook Studio G3 Mobile Workstation T6E17UT#ABA can be downloaded in .pdf format if it did not come with your new mobile workstations, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other HP users keep a unique electronic library for HP mobile workstationss, where you can use our link to download the user manual for the HP 15.6" ZBook Studio G3 Mobile Workstation T6E17UT#ABA.

The user manual lists all of the functions of the HP 15.6" ZBook Studio G3 Mobile Workstation T6E17UT#ABA, all the basic and advanced features and tells you how to use the mobile workstations. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from HP service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the HP 15.6" ZBook Studio G3 Mobile Workstation T6E17UT#ABA. User manuals are also available on the HP website under Computers & Solutions - Laptops - Mobile Workstations.
