User manual HP 1820-24G-PoE 24-Port 185W Ethernet Switch (US) J9983A#ABA

Operating instructions and pdf manual for use - HP 1820-24G-PoE 24-Port 185W Ethernet Switch (US) J9983A#ABA User manual, User manual HP 1820-24G-PoE 24-Port 185W Ethernet Switch (US) J9983A#ABA, HP, 1820-24G-PoE, 24-Port, 185W, Ethernet, Switch,


User manual for HP 1820-24G-PoE 24-Port 185W Ethernet Switch (US) J9983A#ABA

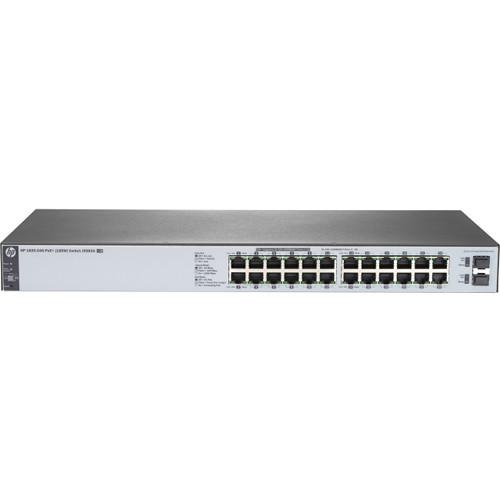

HP 1820-24G-PoE  24-Port 185W Ethernet Switch (US) J9983A#ABA
  • Manufacturer: HP
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Network Switches, Bridges & Hubs
  • Safety instructions
  • Startup and operation of the network switches, bridges & hubs
  • Tips for setting up your HP
  • Settings and expert assistance
  • Contact HP service
  • Troubleshooting
  • Warranty information
  • Price: 370 USD
We recommend checking out our discussion threads on the HP 1820-24G-PoE 24-Port 185W Ethernet Switch (US) J9983A#ABA, which address similar problems with connecting and setting up Network Switches, Bridges & Hubs HP.



User manual for the HP 1820-24G-PoE 24-Port 185W Ethernet Switch (US) J9983A#ABA

The user manual for the HP 1820-24G-PoE 24-Port 185W Ethernet Switch (US) J9983A#ABA provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Switches, Bridges & Hubs.

If you own a HP network switches, bridges & hubs and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the HP 1820-24G-PoE 24-Port 185W Ethernet Switch (US) J9983A#ABA in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the HP 1820-24G-PoE 24-Port 185W Ethernet Switch (US) J9983A#ABA:
Specifications
Interfaces/Ports
Total Number of Network Ports 24
Token Ring Port No
LRE Port No
Uplink Port No
Bypass No
Modular No
Management Port No
USB No
Number of PoE+ (RJ-45) Ports 12
Stack Port No
Number of Network (RJ-45) Ports 12
Port/Expansion Slot Details 2 x Gigabit Ethernet Expansion Slot
24 x Gigabit Ethernet Network
Media & Performance
Media Type Supported Optical Fiber
Twisted Pair
Ethernet Technology Gigabit Ethernet
Network Technology 10/100/1000Base-T
1000Base-X
I/O Expansions
Number of Total Expansion Slots 2
Expansion Slot Type SFP
Shared SFP Slot No
Number of SFP Slots 2
Network & Communication
Layer Supported 2
Management & Protocols
Manageable Yes
Management
  • Web based management
  • DHCP
  • VLAN
  • QoS
  • SNMP v1,v2c
Memory
Standard Memory 128 MB
Memory Technology SDRAM
Flash Memory 16 MB
Reliability
MTBF 565195.20 Hour
Power Description
PoE (RJ-45) Port Yes
Input Voltage 120 V AC
230 V AC
Power Source Power Supply
Physical Characteristics
Color Gray
Compatible Rack Unit 1U
Form Factor Desktop
Rack-mountable
Under Table
Wall Mountable
Height 1.7"
Width 17.4"
Depth 9.7"
Weight (Approximate) 7.30 lb
Miscellaneous
Certifications & Standards

Safety:

  • UL 60950-1
  • CAN/CSA 22.2 No. 60950-1
  • EN 60825
  • IEC 60950-1
  • EN 60950-1

Emissions:

  • FCC Class A
  • EN 55022/CISPR-22 Class A
  • VCCI Class A
Immunity:
  • Generic: EN 55024, CISPR 24
  • EN: EN 55024, CISPR 24
  • ESD: IEC 61000-4-2
  • Radiated: IEC 61000-4-3
  • EFT/Burst: IEC 61000-4-4
  • Surge: IEC 61000-4-5
  • Conducted: IEC 61000-4-6
  • Power frequency magnetic field: IEC 61000-4-8
  • Voltage dips and interruptions: IEC 61000-4-11
  • Harmonics: EN 61000-3-2, IEC 61000-3-2
  • Flicker: EN 61000-3-3, IEC 61000-3-3
IEEE Standards:
  • 802.1D Spanning Tree Protocol
  • 802.1p Priority
  • 802.1Q VLANs
  • 802.1W Rapid Spanning Tree Protocol
  • 802.3ad Link Aggregation Control Protocol (LACP)
  • 802.3x
  • 802.3
  • 802.3u
  • 802.3ab
  • 802.3z
Green Compliant Yes
Green Compliance Certificate/Authority REACH
Packaging Info
Package Weight 11.4 lb
Box Dimensions (LxWxH) 22.9 x 14.0 x 5.4"
