User manual HP 1920 8-Gigabit Port Layer 3 Switch JG920A

Operating instructions and pdf manual for use - HP 1920 8-Gigabit Port Layer 3 Switch JG920A User manual, User manual HP 1920 8-Gigabit Port Layer 3 Switch JG920A, HP, 1920, 8-Gigabit, Port, Layer, 3, Switch, JG920A, Video


User manual for HP 1920 8-Gigabit Port Layer 3 Switch JG920A

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
HP  1920 8-Gigabit Port Layer 3 Switch JG920A
  • Manufacturer: HP
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Network Switches, Bridges & Hubs
  • Safety instructions
  • Startup and operation of the network switches, bridges & hubs
  • Tips for setting up your HP
  • Settings and expert assistance
  • Contact HP service
  • Troubleshooting
  • Warranty information
  • Price: 145 USD
We recommend checking out our discussion threads on the HP 1920 8-Gigabit Port Layer 3 Switch JG920A, which address similar problems with connecting and setting up Network Switches, Bridges & Hubs HP.



User manual for the HP 1920 8-Gigabit Port Layer 3 Switch JG920A

The user manual for the HP 1920 8-Gigabit Port Layer 3 Switch JG920A provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Switches, Bridges & Hubs.

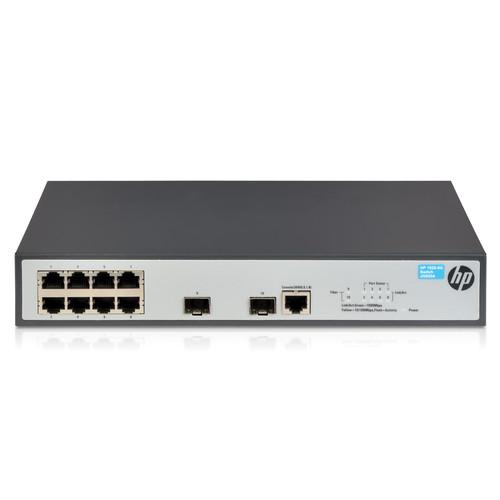

The 1920 8-Gigabit Port Layer 3 Switch from HP features 8 RJ-45, auto-negotiating 10/100/1000 ports, and two SFP 1000 Mb/s ports and supports rackmounting or desktop operations. Its customizable features include basic Layer 2 features like VLANs and link aggregation, as well as advanced features such as Layer 3 static-routing, IPv6, ACLs, and Spanning Tree Protocols. It provides an easy-to-administer solution for small businesses.
If you own a HP network switches, bridges & hubs and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the HP 1920 8-Gigabit Port Layer 3 Switch JG920A in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the HP 1920 8-Gigabit Port Layer 3 Switch JG920A:
Performance
Processor Speed 500 MHz
Memory 32 MB Flash memory
128 MB SDRAM
Packet Buffer Size 4.1 MB
Latency 100/1000 MB Latency: < 5µs
Throughput 14.8 Mp/s (64-byte packets)
Switching Capacity 20 Gb/s
Routing Table Size 32 entries (IPv4)
32 entries (IPv6)
MAC Address Table Size 8192
MTBF 128.20 years
I/O and Connectors
Ports 8 x RJ-45 auto-negotiating 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u type 100BASE-TX, IEEE 802.3ab type 1000BASE-T)
2 x SFP 1000 Mb/s ports
Additional Ports RJ-45 console port to access limited CLI port
Mounting Options
Mounting Mounts in an EIA standard 19.0" (48.2 cm) telco rack or equipment cabinet, Wall Mount
Operating Environment
Operating Temperature 32 to 104°F (0 to 40°C)
Operating Relative Humidity 10 to 90% (non-condensing)
Storage Temperature -40 to 158°F (-40 to 70°C)
Storage Relative Humidity 10 to 95% (non-condensing)
Altitude Up to 16,404' (5000 m)
Electrical Characteristics
Frequency 50/60 Hz
AC Voltage 100 to 240 VAC
Power 9 W (maximum)
General
Safety UL 60950
IEC 60950-1
EN 60950-1
CAN/CSA-C22.2 No. 60950-1-03
Emissions FCC part 15 Class A
VCCI Class A
EN 55022 Class A
CISPR 22 Class A
EN 55024
EN 61000-3-2 2000, 61000-3-3
ICES-003 Class A
Management IMC (Intelligent Management Center)
Limited command-line interface
Web browser
SNMP Manager
IEEE 802.3 Ethernet MIB
Dimensions (W x H x D) 10.47 x 1.73 x 6.38" (26.60 x 4.40 x 16.20 cm)
Weight 31.68 oz (898.11 g)
Packaging Info
Package Weight 4.55 lb
Box Dimensions (LxWxH) 14.3 x 10.6 x 3.6"
The user manual for the HP 1920 8-Gigabit Port Layer 3 Switch JG920A can be downloaded in .pdf format if it did not come with your new network switches, bridges & hubs, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other HP users keep a unique electronic library for HP network switches, bridges & hubss, where you can use our link to download the user manual for the HP 1920 8-Gigabit Port Layer 3 Switch JG920A.

The user manual lists all of the functions of the HP 1920 8-Gigabit Port Layer 3 Switch JG920A, all the basic and advanced features and tells you how to use the network switches, bridges & hubs. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from HP service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the HP 1920 8-Gigabit Port Layer 3 Switch JG920A. User manuals are also available on the HP website under Computers & Solutions - Networking - Network Switches, Bridges & Hubs.
