User manual HP Color LaserJet Enterprise Flow M680z All-in-One CZ250A#BGJ
Operating instructions and pdf manual for use - HP Color LaserJet Enterprise Flow M680z All-in-One CZ250A#BGJ User manual, User manual HP Color LaserJet Enterprise Flow M680z All-in-One CZ250A#BGJ, HP, Color, LaserJet, Enterprise, Flow, M680z, All-
User manual for HP Color LaserJet Enterprise Flow M680z All-in-One CZ250A#BGJ
We recommend checking out our discussion threads on the HP Color LaserJet Enterprise Flow M680z All-in-One CZ250A#BGJ,
which address similar problems with connecting and setting up Laser Printers HP.
User manual for the HP Color LaserJet Enterprise Flow M680z All-in-One CZ250A#BGJ
The user manual for the HP Color LaserJet Enterprise Flow M680z All-in-One CZ250A#BGJ provides
necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - Laser Printers.

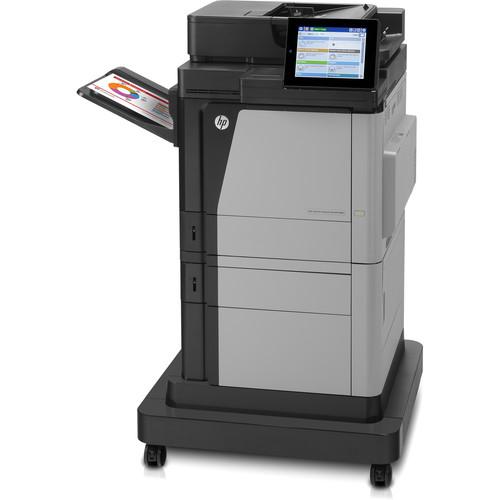

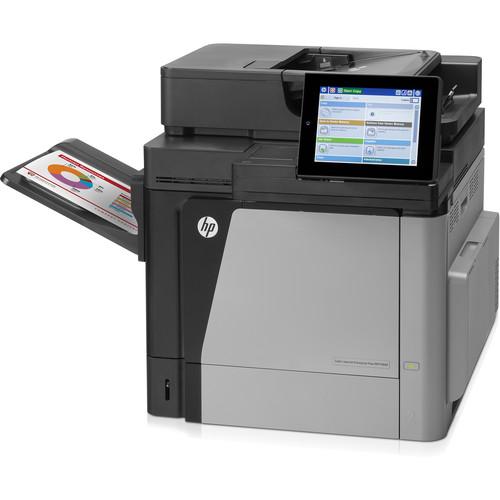

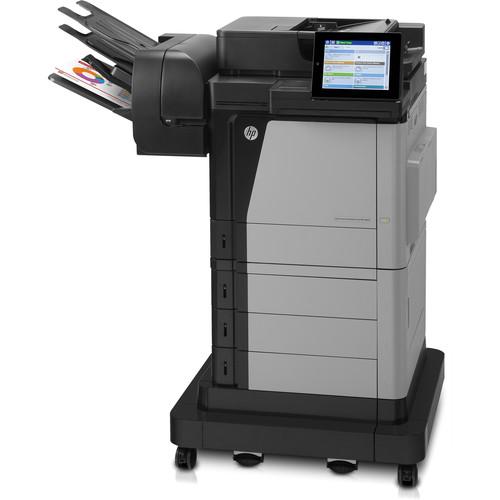

Let your workgroup take on high-volume jobs with full-color printing by using the Color LaserJet Enterprise Flow M680z All-in-One Laser Printer from HP, which also packs in complete scanning, copying, and fax capabilities. Print quality is excellent with a resolution of 1200 x 1200 dpi and it will manage to produce both black and white and color documents at a max speed of 45 ppm. Scanning also benefits from the units advanced speed with rates of up to 65 ppm in black and white or 63 ppm in color. These images will be highly detailed as well thanks to an optical scan resolution of 600 dpi.
Furthering the printer's capabilities is automatic duplexing, which enables quick and easy two-sided printing, scanning, and copying for documents up to 8.5 x 14" in size. Also, this model features a 3-bin stapling mailbox that can dramatically speed up the task of collating and combining multi-page documents. Standard paper capacity is large with a 100-sheet ADF, a 100-sheet multipurpose tray, three 500-sheet input trays, and one high-capacity 1,500-sheet input tray with a floor stand. The printer will easily manage the volume of media with a rated monthly duty cycle of 120,000 pages.
Usage is intuitive with a large 8.0" touchscreen LCD and a pull-out keyboard is available for fast data entry. Connectivity includes USB 2.0 and Ethernet for direct interfacing with a computer or networking. An easy-access USB port is also located on the control panel for printing from and scanning to a portable drive.
If you own a HP laser printers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the HP Color LaserJet Enterprise Flow M680z All-in-One CZ250A#BGJ in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the HP Color LaserJet Enterprise Flow M680z All-in-One CZ250A#BGJ:
HP ePrint, Apple AirPrint, Open Extensibility Platform, FutureSmart Firmware, Schedule On and Off technology, Instant-on Technology, HP Auto-On/Auto-Off Technology, HP Easy Color, Pantone Calibrated, digital send print preview, duplex, print multiple pages per sheet (2, 4, 6, 9, 16), collation, watermarks, store print jobs, job separator, staple
Optimize text/picture, image adjustments, job build, output quality setting, selectable scan resolution 75-600 dpi, auto detect color, edge erase, auto tone, auto job notification, blank page suppression, auto orientation, auto page crop, HP Quick Sets
Digital Sending Features
Scan to e-mail, save to network folder, scan to Microsoft SharePoint, save to USB drive, send to FTP, send to LAN Fax, send to Internet fax, OCR, Local Address Book, SMTP over SSL
Black (Best): 300 x 300 dpi Black (Standard): 100 x 100 dpi Black and White (Fine): 200 x 200 dpi, 256 levels of gray Black and White (Superfine): 300 x 300 dpi, 256 levels of gray
Speed Dial Locations
100 numbers (each can contain 100 numbers)
Fax Features
Stored faxes, fax archiving, fax forwarding, scale-to-fit, fax address book, LAN/Internet fax, fax number confirmation, auto fax reduction, auto-redialing, junk barrier, PC interface support
USB 2.0 Ethernet (10/100/1000Base-TX) 2 x USB 2.0 Host Fax FIH Jetlink
Mobile Printing Features
HP ePrint, Apple AirPrint, Mobile Apps
OS Compatibility
Windows XP SP3 (32/64-bit), Vista (32/64-bit), 7 (32/64-bit), 8 (32/64-bit), Server 2003 SP2 (32/64-bit), Server 2008 (32/64-bit), Server 2008 R2 (64-bit), Server 2012 (64-bit) Mac OS X 10.6-10.9 Android Citrix and Windows Terminal Services Linux Novell SAP UNIX UNIX JetDirect
Processor
800 MHz
Memory
2 GB DDR2
Fonts
105 internal TrueType fonts scalable in HP PCL 92 internal scalable fonts in HP postscript Level 3 emulation (Euro symbol built-in) 1 internal Unicode Fonts (Andale Mono World Type) 2 Internal Windows Vista 8 Fonts (Calibri, Cambria)
Printer Language
HP PCL 6, HP PCL 5c, HP postscript level 3 emulation, PDF, PDF and AirPrint (URF and PDF)
Management
HP Web Jetadmin, HP Utility (Mac)
Security
Identity Management: Kerberos authentication, LDAP authentication, 1000 user PIN codes, optional HP and 3rd party advanced authentication solutions (e.g., badge readers) Network: IPsec/firewall with Certificate, Pre-Shared Key, and Kerberos authentication, Supports WJA-10 IPsec configuration Plug-in, 802.1X authentication (EAP-PEAP, EAP-TLS), SNMPv3, HTTPS, Certificates, Access Control List Data: Storage Encryption, Encrypted PDF & Email (uses FIPS 140 validated cryptographic libraries from Microsoft), Secure Erase, SSL/TLS (HTTPS), Encrypted Credentials Device: Security lock slot, USB port disablement, hardware integration pocket for security solutions Security Management: Compatible with HP Imaging and Printing Security Center
8.0" / 20.3 cm color touchscreen with SVGA 800 x 600 resolution gesture support and extended keyboard
Power Requirements
100-127 VAC (±10%), 60 Hz (± 2 Hz), 12 A
Power Consumption
Printing: 797 W Ready: 83 W Sleep: 7 W Auto-Off/Wake on LAN: 1.53 W Auto-Off/Manual On: 0.07 W Manual Off: 0.07 W
Certifications
ENERGY STAR certified Blue Angel EPEAT Silver CECP
Acoustic Noise
Power Emissions: 7.1 B(A) Pressure Emissions: 56 dB(A)
Operating Conditions
Temperature: 59 to 86°F / 15 to 30°C Recommended Temperature: 62.6 to 77°F / 17 to 25°C Humidity: 10 to 80, relative% Recommended Humidity: 30 to 70%, relative
Storage Conditions
Humidity: 10 to 90%, relative
Dimensions
Minimum: 40.2 x 26.8 x 46.5" / 102.1 x 68.1 x 118.1 cm Maximum: 55.3 x 39.8 x 55.8" / 140.5 x 101.1 x 141.7 cm
Weight
191.3 lb / 86.8 kg
The user manual for the HP Color LaserJet Enterprise Flow M680z All-in-One CZ250A#BGJ can be downloaded in .pdf
format if it did not come with your new laser printers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other HP users keep a unique electronic library
for HP laser printerss,
where you can use our link to download the user manual for the HP Color LaserJet Enterprise Flow M680z All-in-One CZ250A#BGJ.
The user manual lists all of the functions of the HP Color LaserJet Enterprise Flow M680z All-in-One CZ250A#BGJ,
all the basic and advanced features and tells you how to use the laser printers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from HP service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the HP Color LaserJet Enterprise Flow M680z All-in-One CZ250A#BGJ. User manuals are also
available on the HP website under Computers & Solutions - Printers & Accessories - Laser Printers.
