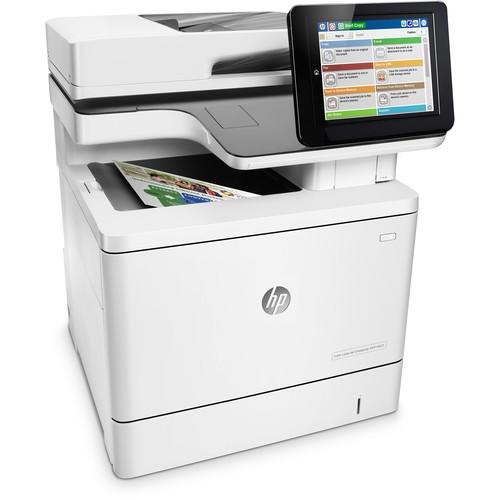

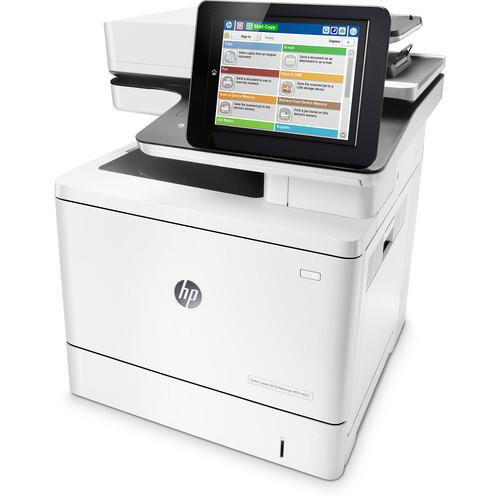

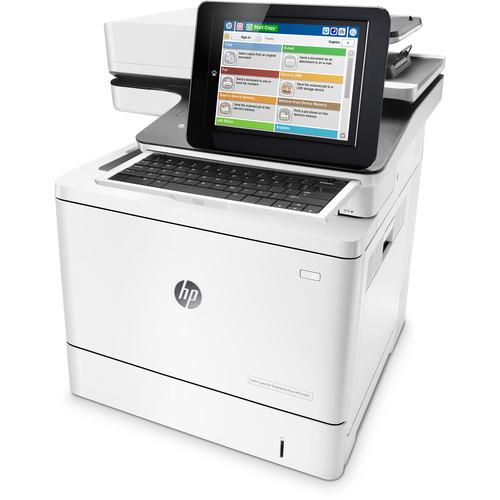

Boost both the efficiency and productivity of your workgroup by adding a Color LaserJet Enterprise M577dn All-in-One Laser Printer from HP to your workspace. This all-in-one unit not only offers standard printing, scanning, and copying capabilities, but combines it with intuitive controls and superb security. On the printer side, the unit is quite capable, creating full color documents at a rate of up to 40 ppm in both simplex and duplex modes. Along with this, the M577dn can leverage a maximum print resolution of 1200 x 1200 dpi in order to render fine lines on documents ranging in size from 3 x 5" to 8.5 x 14".
Scanning, copying, and faxing are possible through the inclusion of an 8.5 x 14" flatbed, or the 100-sheet ADF. The flatbed will handle many jobs with ease and produce finely detailed 600 dpi images while the ADF benefits from fast scan speeds of up to 45 ppm in simplex or single-pass two-sided scans. Also, it has both a 100-sheet multipurpose tray and a 500-sheet standard input tray to handle multiple media types at once.
User friendly, the M577dn is equipped with a large 8.0" touchscreen LCD in order to change settings and quickly check status. It is well connected with simple USB 2.0 and Ethernet options. Additionally, the printer is durable, with a rated monthly duty cycle of 80,000 pages.
If you own a HP laser printers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the HP Color LaserJet Enterprise M577dn All-in-One Laser B5L46A#BGJ in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the HP Color LaserJet Enterprise M577dn All-in-One Laser B5L46A#BGJ:
Scan to e-mail, save to network folder, save to USB drive, send to FTP, send to Internet fax, local address book, SMTP over SSL, blank page removal, edge erase, auto color sense, auto crop to content, compact PDF
Multipurpose tray Input tray Automatic document feeder Output bin
Paper Types
Paper (plain, light, bond, recycled, mid-weight, heavy, mid-weight glossy, heavy glossy, extra heavy, extra heavy glossy, cardstock, card glossy), color transparency, labels, letterhead, envelope, preprinted, prepunched, colored, rough, opaque film, user-defined
Paper Sizes
Multipurpose Tray: 3 x 5" to 8.5 x 14" / 7.6 x 12.7 cm to 21.6 x 35.6 cm Input Tray: 4 x 5.85" to 8.5 x 11.7" / 10.2 x 14.8 cm to 21.6 x 29.7 cm Duplex: Letter, legal, oficio, executive, A4, A5, B5 (JIS) ADF: Letter, legal, oficio, executive, statement, Postcard (JIS), DPostcard (JIS), 4 x 6" / 10.2 x 15.2 cm, 5 x 7" / 12.7 x 17.8 cm, 5 x 8" / 12.7 x 20.3 cm, A4, RA4, A5, A6, B5, B6 (JIS), 16K
USB 2.0 Ethernet (10/100/1000Base-TX) 2 x USB 2.0 Host Hardware Integration Pocket
Mobile Printing Features
HP ePrint, Apple AirPrint, Mopria-certified, Google Cloud Print 2.0
OS Compatibility
Windows 10 (32/64-bit), 8/8.1 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP SP3 (32/64-bit) Mac OS 10.8-10.10 iOS, Android, Windows 8/8.1/10 RT SUSE Linux (12.2, 12.3, 13.1), Fedora (17, 18, 19, 20), Linux Mint (13, 14, 15, 16, 17), Boss (3.0, 5.0), Ubuntu (10.04, 11.10, 12.04, 12.10, 13.04, 13.10, 14.04, 14.10), Debian (6.0.x, 7.x) UNIX
Processor
1.2 GHz
Memory
1.25 GB (upgradable to 2 GB for printer) 500 MB (scanner)
Hard Drive Capacity
320 GB HP High-Performance Secure Hard Disk AES 256 hardware encryption or greater Secure erase capabilities (Secure File Erase-Temporary Job Files, Secure Erase-Job Data, Secure ATA Erase-Disk) U.S. Government: FIPS 140-2 validated hard disk, minimum 500 GB
Fonts
105 internal TrueType fonts scalable in HP PCL 92 internal scalable fonts in HP postscript Level 3 emulation (Euro symbol built-in) 1 internal Unicode Fonts (Andale Mono World Type) 2 Internal Windows Vista 8 Fonts (Calibri, Cambria)
Printer Language
HP PCL 6, HP PCL 5c, HP postscript level 3 emulation, native PDF printing (v1.7)
Network Protocol Support
IPv4/IPv6: Apple Bonjour Compatible (Mac OS 10.2.4 or higher), SNMPv1/v2c/v3, HTTP, HTTPS, FTP, TFTP, Port 9100, LPD, WS Discovery, IPP, Secure-IPP, IPsec/Firewall IPv6: DHCPv6, MLDv1, ICMPv6 IPv4: Auto-IP, SLP, Telnet, IGMPv2, BOOTP/DHCP, WINS, IP Direct Mode, WS Print Other: NetWare NDS, Bindery, NDPS, ePrint, Google Cloud Print 2.0
Security
Identity Management: Kerberos authentication, LDAP authentication, 1000 user PIN codes, optional HP and third-party advanced authentication solutions (e.g., badge readers) Network: IPsec/firewall with Certificate, Pre-Shared Key, and Kerberos authentication, Supports WJA-10 IPsec configuration Plug-in, 802.1X authentication (EAP-PEAP, EAP-TLS), SNMPv3, HTTPS, Certificates, Access Control List Data: Storage Encryption, Encrypted PDF and Email (uses FIPS 140-2 validated cryptographic libraries), Secure Erase, SSL/TLS (HTTPS), Encrypted Credentials Device: Security lock slot, USB port disablement, hardware integration pocket for security solutions, optional Trusted Platform Module Management: Compatible with optional HP JetAdvantage Security Manager
8" / 20.3 cm color touchscreen with adjustable angle display Illuminated Home button
Power Requirements
100-127 VAC, 60 Hz
Power Consumption
Printing: 592 W Ready: 47.3 W Sleep: 3.48 W Auto-Off/Auto-On/Wake on LAN: 0.49 W Auto-Off/Manual On: 0.08 W
Typical Power Consumption
ENERGY STAR: 1.559 kWh/week Blue Angel: 1.513 kWh/week
Certifications
ENERGY STAR certified Blue Angel EPEAT Silver Mercury-free
Compliance
Safety & Regulatory: IEC 60950-1:2005 +A1:2009 +A2:2013 (International); EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 (EU); EN 60825-1:2007/IEC 60825-1:2007 (Class 1 Laser Product); EN 62479: 2010/IEC 62479: 2010; Low Voltage Directive 2006/95/EC with CE Mark (Europe); GS Certificate (Germany, Europe); UL/cUL Listed and UC CoC (US/Canada); CAN/CSA C22.2 No. 60950-1-07 2nd Ed. 2011-12; Compliance with Laser safety standards 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser notice No. 50, Dated June 24, 2007; Other safety approvals as required by individual countries Electromagnetic Emission: CISPR 22:2008 (International) - Class A, EN 55022: 2010 (EU) - Class A, EN 61000-3-2: 2006 +A1: 2009 +A2: 2009, EN 61000- 3-3: 2008, EN 55024: 2010, EMC Directive 2004/108/EC, FCC CFR 47 Part 15 Class A / ICES-003, Issue 5 Class A, Other EMC approvals as required by individual countries
Acoustic Noise
Power Emissions Ready Mode: 4.7 B(A) Active Printing: 6.5 B(A) Active Copying: 6.9 B(A) Active Scanning: 6.8 B(A) Pressure Emissions (Bystander) Ready Mode: 32 dB(A) Active Printing: 51 dB(A) Active Copying: 55 dB(A) Active Scanning: 53 dB(A)
Operating Conditions
Temperature: 59 to 81°F / 15 to 30°C Recommended Temperature: 62 to 77°F / 17 to 25°C Humidity: 10 to 80% Recommended Humidity: 30 to 70%
Storage Conditions
Temperature: 32 to 95°F / 0 to 35°C Humidity: 10 to 90%
Dimensions
Minimum: 19 x 19.8 x 23" / 48.2 x 50.4 x 58.3 cm Maximum: 27.5 x 19.8 x 23" / 69.9 x 50.4 x 58.3 cm
Weight
84 lb / 38.1 kg
