User manual HP Designjet T795 44" ePrinter CR649CB1K

Operating instructions and pdf manual for use - HP Designjet T795 44" ePrinter CR649CB1K User manual, User manual HP Designjet T795 44" ePrinter CR649CB1K, HP, Designjet, T795, 44, ePrinter, CR649CB1K, Video


User manual for HP Designjet T795 44" ePrinter CR649CB1K

HP  Designjet T795 44
  • Manufacturer: HP
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Printers & Accessories - Large Format Printers
  • Safety instructions
  • Startup and operation of the large format printers
  • Tips for setting up your HP
  • Settings and expert assistance
  • Contact HP service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the HP Designjet T795 44" ePrinter CR649CB1K, which address similar problems with connecting and setting up Large Format Printers HP.



User manual for the HP Designjet T795 44" ePrinter CR649CB1K

The user manual for the HP Designjet T795 44" ePrinter CR649CB1K provides necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - Large Format Printers.

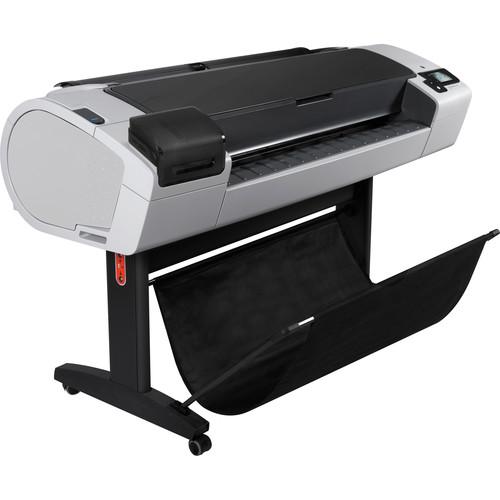

The HP Designjet T795 44" ePrinter is a wide-format inkjet printer capable of printing as resolutions up to 2400 x 1200 dpi for sharp, vivid imagery. The T795 is capable of fast print speeds with a fast mode of 445 ft²/hr and a best quality mode of 33.3 ft²/hr. To complement this fast printing, the unit can handle rolls from 8.3 to 44" in width as well as cut sheets up to 44 x 66". Additionally, it can work with HP's Designjet ePrint & Share software to allow for remote printing from networked oomputers, through email, and even from a smartphone or tablet.

Much of the printer's advantages lie in the six-color ink system. It features both dye- and pigment-based inks in order to provide the best possible combinations of colors. Also, it has photo black, matte black, and gray cartridges for true neutral grays and dark blacks. The T795 can be controlled easily through a touchscreen LCD display, and it has a USB port on the front for direct printing capabilities. The printer can be networked easily via a built-in Ethernet port.
If you own a HP large format printers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the HP Designjet T795 44" ePrinter CR649CB1K in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the HP Designjet T795 44" ePrinter CR649CB1K:
Specifications
    Printing Method
    Printing Technology HP Thermal Inkjet
    Maximum Resolution Color: 2400 x 1200 dpi
    Print Speed Line Drawings: 28 sec/page on A1/D; 103 A1/D prints/hr
    Color, Fast: 445 ft²/hr (41 m²/hr) on coated media
    Color, Best: 33.3 ft²/hr (3.1 m²/hr) on glossy media
    Ink Type Dye-Based: Cyan, magenta, yellow, dark gray, gray
    Pigment-Based: Matte black
    Ink Droplet Sizes 6 pl: Cyan, magenta, photo black, gray
    9 pl: Yellow, matte black
    Ink Cartridge Configuration 6: Cyan, magenta, yellow, photo black, gray, and matte black
    Compatible Ink Cartridges HP 72
    HP 726
    Printhead 3 (Gray & photo black, matte black & yellow, magenta & cyan)
    Minimum Line Width 0.0024" (0.06 mm) (ISO/IEC 13660:2001(E))
    0.0008" (0.02 mm) (HP-GL/2 addressable)
    Line Accuracy ±0.1%
    Maximum Optical Density 6 L*min/2.15 D
    Paper Handling
    Paper-Feed Method Sheet feed
    Roll feed
    Paper Sizes Roll: 8.3 to 44.0" (21.0 to 111.8 cm) wide and up to 5.3" (13.5 cm) in diameter
    Sheets: 8.3 x 11.0" to 44.0 x 66.0" (21.0 x 27.9 cm to 111.8 x 167.6 cm); A4, A3, A2, A1, A0 (A, B, C, D, E)
    Media Thickness Up to 31.5 mil (0.8 mm)
    Media Weight 60-328 gsm
    Margins Sheet: 0.20 x 0.67 x 0.20 x 0.20" (5 x 17 x 5 x 5 mm)
    Roll: 0.2 x 0.2 x 0.2 x 0.2" (5 x 5 x 5 x 5 mm)
    Paper Handling Automatic cutter
    Applications Line drawings, rendering, presentations
    Connectivity
    Interfaces 1000Base-T Gigabit Ethernet port
    USB 2.0 port
    EIO Jetdirect accessory slot
    Memory 16 GB (virtual)
    Hard Disk Drive 160 GB, optional
    Printer Language Standard: HP-GL/2, HP-RTL, CALS G4, TIFF, JPEG, HP PCL 3 GUI
    Optional: Adobe PostScript 3, Adobe PDF 1.7
    PostScript Support Adobe PostScript 3
    Printing Paths Printer driver, HP Designjet ePrint & Share, Direct printing from USB flash drive, email printing
    Drivers HP-GL/2, HP-RTL drivers for Windows, HP PCL 3 GUI drive for Mac OS X, PostScript Windows and Mac OS X drivers with optional PostScript/PDF Upgrade Kit
    Physical
    LCD Touchscreen
    Power Requirements Auto Ranging: 100 to 240 VAC (±10%), 50/60 Hz(±3 Hz), 2 A max
    Power Consumption Printing: <120 w
    Ready: <27 w
    Sleep: <7 w (<25 with embedded digital front end)
    Off: <0.1 W
    Certifications Safety: USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant), Russia (GOST), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico (NYCE), Korea (KC)
    Electromagnetic: Compliant with Class A requirements, including: USA (FCC), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (MSIP)
    Environmental: ENERGY STAR, WEEE, RoHS (EU, China, Korea, India), REACH, EPEAT Bronze, FEMP
    Acoustic Noise Sound Pressure
    Active: 43 dB(A)
    Standby: 29 dB(A)

    Sound Power
    Active: 6.1 B(A)
    Standby: 4.7 B(A)
    Temperature / Humidity Operating Temperature: 41 to 104°F (5 to 40°C)
    Storage Temperature: -13 to 131°F (-25 to 55°C)
    Operating Humidity: 20 to 80%, relative
    Dimensions (WxDxH) 69.7 x 27.6 x 41.3" (177.0 x 70.1 x 105.0 cm)
    Weight 180 lb (82 kg)
    Packaging Info
    Package Weight 227.0 lb
    The user manual for the HP Designjet T795 44" ePrinter CR649CB1K can be downloaded in .pdf format if it did not come with your new large format printers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other HP users keep a unique electronic library for HP large format printerss, where you can use our link to download the user manual for the HP Designjet T795 44" ePrinter CR649CB1K.

    The user manual lists all of the functions of the HP Designjet T795 44" ePrinter CR649CB1K, all the basic and advanced features and tells you how to use the large format printers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from HP service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the HP Designjet T795 44" ePrinter CR649CB1K. User manuals are also available on the HP website under Computers & Solutions - Printers & Accessories - Large Format Printers.



    Discussion Question and answer discussion forum concerning user instructions and resolving problems with the HP Designjet T795 44" ePrinter CR649CB1K

    Post new comment to HP Designjet T795 44" ePrinter CR649CB1K

    Subject: Print
    Date: 06.02.2018 00:58:36Author: Lin beets
    Pictures print ok but letters and numbers print out rough around the edges.
