User manual HP Designjet Z6800 60" Photo Production Printer F2S72AB1K

Operating instructions and pdf manual for use - HP Designjet Z6800 60" Photo Production Printer F2S72AB1K User manual, User manual HP Designjet Z6800 60" Photo Production Printer F2S72AB1K, HP, Designjet, Z6800, 60, Photo, Production, Printer, F2S7


User manual for HP Designjet Z6800 60" Photo Production Printer F2S72AB1K

HP Designjet Z6800 60
  • Manufacturer: HP
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Printers & Accessories - Large Format Printers
  • Safety instructions
  • Startup and operation of the large format printers
  • Tips for setting up your HP
  • Settings and expert assistance
  • Contact HP service
  • Troubleshooting
  • Warranty information
  • Price: 13 USD
We recommend checking out our discussion threads on the HP Designjet Z6800 60" Photo Production Printer F2S72AB1K, which address similar problems with connecting and setting up Large Format Printers HP.



User manual for the HP Designjet Z6800 60" Photo Production Printer F2S72AB1K

The user manual for the HP Designjet Z6800 60" Photo Production Printer F2S72AB1K provides necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - Large Format Printers.

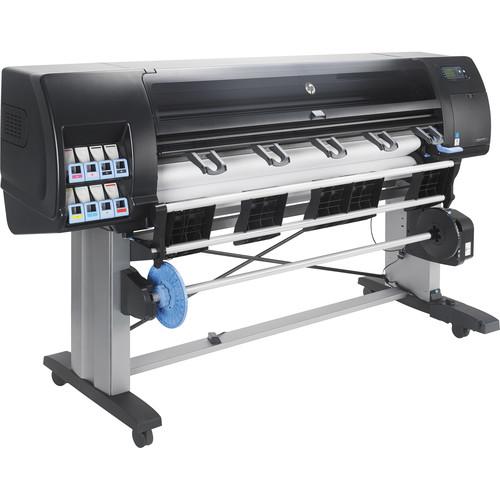

The HP Designjet Z6800 60" Photo Production Printer is a wide-format 60" printer designed for graphics applications with a built-in spectrophotometer with i1 color technology and chromatic red ink. It features HP's Double Swath technology for high quality prints as fast as 1,500 ft²/hr in fast mode. High quality mode also benefits from this technology with a resolution of 2400 x 1200 dpi and speeds of 212 ft²/hr. This technology is supported with HP's Optical Media Advance Sensor which ensures that media moves properly through the printer.

The Z6800 is roll fed and can support paper from 11 to 60" wide for large print sizes. This printer also has drop detection and intelligent masking for maintaining print quality throughout its lifetime. Colors are reliable due to HP Professional PANTONE color emulation and the ability to embed Adobe PostScript and PDF support.

The pigment-based ink system features chromatic red, light gray, photo black, matte black, light cyan, yellow, light magenta, and magenta inks for ensuring good color, and the printer features 1000Base-T Gigabit Ethernet connectivity for networking. The Z6800 is designed to work with third-party RIP solutions as well.
If you own a HP large format printers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the HP Designjet Z6800 60" Photo Production Printer F2S72AB1K in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the HP Designjet Z6800 60" Photo Production Printer F2S72AB1K:
Specifications
    Printing Method
    Printing Technology HP Thermal Inkjet
    Maximum Resolution Color: 2400 x 1200 dpi
    Print Speed High Quality Mode: 212 ft²/hr (19.7 m²/hr)
    Fast Mode: 1500 ft²/hr (140 m²/hr)

    Color (ISO N5), Best, D Glossy Paper: 3.2 min/page
    Color (ISO N5), Normal, D Glossy Paper: 2.1 min/page
    Color (ISO N5), Draft, D Coated Paper: 18 sec/page
    Color (ISO N5), Normal, D Coated Paper: 1.5 min/page
    Ink Type Pigment-based
    Ink Cartridge Configuration 8: Chromatic red, light cyan, magenta, light magenta, yellow, light gray, matte black, photo black
    Compatible Ink Cartridges HP 773A
    HP 771A
    Number of Nozzles Eight bi-color printheads with 1,056 nozzles per color, 1,200 nozzles per inch
    Printhead Swath 1.67" (42.5 mm)
    Minimum Line Width 0.0026" (0.066 mm) (ISO/IEC 13660:2001(E))
    0.0008" (0.02 mm) (HP-GL/2 addressable)
    Line Accuracy ±0.1%
    Color Accuracy Median < 1.25 dE2000, 95% of colors < 2.75 dE2000
    Color Stability < 1 dE2000 in less than 5 minutes
    Repeatability Average < 0.5 dE2000, 95% of colors < 1.25 dE2000
    Maximum Optical Density 4.5 L x min/2.31 D
    Paper-Feed Method Roll feed
    Paper Types Bond and coated paper, technical paper, film, photographic paper, proofing paper, backlit, self-adhesive, banner and sign, fabric, fine art printing material
    Paper Sizes 11-60" (27.9-152.4 cm) wide rolls up to 6.7" (17.0 cm) in diameter
    Media Thickness Up to 22 mil (0.56 mm)
    Margins 0.2 x 0.2 x 0.2 x 0.2" (5 x 5 x 5 x 5 mm)
    Paper Handling Automatic cutter
    Take-up reel
    Roll feed
    Connectivity
    Interfaces 1000Base-T Gigabit Ethernet port
    EIO Jetdirect accessory slot
    Memory 64 GB (virtual)
    Hard Disk Drive 320 GB
    Printer Language Standard: HP-GL/2, HP-RTL, CALS G4
    Optional: Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG
    PostScript Support Adobe PostScript 3
    Printing Paths Printer driver, HP Embedded Web Server
    Drivers HP-GL/2, HP-RTL drivers for Windows; PostScript Windows and Mac drivers with optional PostScript/PDF Upgrade Kit
    Physical
    Power Requirements Auto Ranging: 100-127 VAC (±10%), 5 A; 220-240 VAC (±10%), 3 A; 50/60 Hz (±3 Hz)
    Power Consumption Printing: 270 W
    Ready: <48 w
    Sleep: <5.3 W
    Off: <0.3 W
    Certifications Safety: USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant), Russia (GOST), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico (NYCE), Korea (KC)
    Electromagnetic: Compliant with Class A requirements, including: USA (FCC), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (MSIP)
    Environmental: ENERGY STAR, WEEE, RoHS (EU, China, Korea, India), REACH, EPEAT Bronze
    Acoustic Noise Sound Pressure
    Printing: 53 dB(A)
    Ready: 39 dB(A)
    Sleep: 39 dB(A)

    Sound Power
    Printing: 7.0 B(A)
    Ready: 5.5 B(A)
    Sleep: 5.5 B(A)
    Temperature / Humidity Operating Temperature: 41 to 104°F (5 to 40°C)
    Storage Temperature: -4 to 131°F (-20 to 55°C)
    Operating Humidity: 20 to 80%, relative
    Dimensions (WxDxH) 95.7 x 27.2 x 53.9" (243 x 69 x 137 cm)
    Weight 419 lb (190 kg)
    Packaging Info
    Package Weight 555.6 lb
    The user manual for the HP Designjet Z6800 60" Photo Production Printer F2S72AB1K can be downloaded in .pdf format if it did not come with your new large format printers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other HP users keep a unique electronic library for HP large format printerss, where you can use our link to download the user manual for the HP Designjet Z6800 60" Photo Production Printer F2S72AB1K.

    The user manual lists all of the functions of the HP Designjet Z6800 60" Photo Production Printer F2S72AB1K, all the basic and advanced features and tells you how to use the large format printers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from HP service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the HP Designjet Z6800 60" Photo Production Printer F2S72AB1K. User manuals are also available on the HP website under Computers & Solutions - Printers & Accessories - Large Format Printers.
