User manual HP Digital Sender Flow 8500 fn1 Document Capture L2719A#BGJ

Operating instructions and pdf manual for use - HP Digital Sender Flow 8500 fn1 Document Capture L2719A#BGJ User manual, User manual HP Digital Sender Flow 8500 fn1 Document Capture L2719A#BGJ, HP, Digital, Sender, Flow, 8500, fn1, Document, Captur


User manual for HP Digital Sender Flow 8500 fn1 Document Capture L2719A#BGJ

HP Digital Sender Flow 8500 fn1 Document Capture L2719A#BGJ
  • Manufacturer: HP
  • Basic description and contents of package
  • Product classification: Photography - Scanners - Flatbed & Document Scanners
  • Safety instructions
  • Startup and operation of the flatbed & document scanners
  • Tips for setting up your HP
  • Settings and expert assistance
  • Contact HP service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the HP Digital Sender Flow 8500 fn1 Document Capture L2719A#BGJ, which address similar problems with connecting and setting up Flatbed & Document Scanners HP.



User manual for the HP Digital Sender Flow 8500 fn1 Document Capture L2719A#BGJ

The user manual for the HP Digital Sender Flow 8500 fn1 Document Capture L2719A#BGJ provides necessary instructions for the proper use of the product Photography - Scanners - Flatbed & Document Scanners.

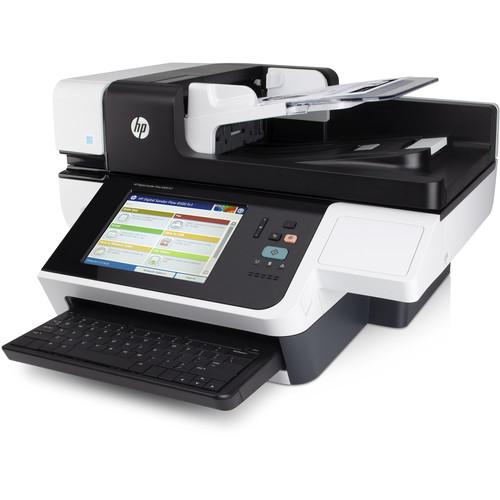

Speed up your workflow with the 60 ppm Digital Sender Flow 8500 fn1 Document Capture Workstation from HP which is equipped with both a 100-sheet ADF and an 8.5 x 14" flatbed to help digitize your physical documents. An optical resolution of 600 dpi combines with a color depth of 24-bit to create highly detailed and vivid images. Also, the ADF has access to a long document mode for scanning large 8.5 x 34" pages and it has duplexing for two-sided scanning at up to 60 ipm.

Your jobs are easily managed using the large 8" touchscreen LCD and pull-out keyboard available on the front control panel. Also, it has an easy-access USB port for plugging in portable flash drives. Along with this, features such as ultrasonic multi-feed detection and embedded OCR are available to help ensure quality scans. And, it has both USB 2.0 and Ethernet connectivity options.
If you own a HP flatbed & document scanners and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the HP Digital Sender Flow 8500 fn1 Document Capture L2719A#BGJ in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the HP Digital Sender Flow 8500 fn1 Document Capture L2719A#BGJ:
Specifications
Scan Quality
Scanner Type Flatbed, ADF
Scan Sensor Flatbed: Charge Coupled Device (CCD)
ADF: Contact Image Sensor (CIS)
Optical Resolution 600 dpi
Hardware Resolution 600 x 600 dpi
Color Depth 24-bit
Grayscale Tones 256
Scan Speed 60 ppm / 120 ipm (B&W, Grayscale, Color at 200 ppi; B&W & Grayscale at 300 ppi)
45 ppm / 90 ipm (Color at 300 ppi)
Duplex Scanning Yes
Batch Scanning Yes
Scan File Format JPG, TIFF, MTIFF, PDF (image-only, searchable, high-compressed, AES encrypted), PDF/A, TXT, Unicode TXT, RTF, HTML
Duty Cycle Daily: 5,000 pages
Scanner Features HP EveryPage technology, blank page removal, color dropout, auto-orient, auto-crop, auto-deskew, auto-threshold, long page support, switchable black/white background, quick set scan profiles, Send to: folder, FTP, email, network fax, print, USB flash drive, SharePoint, multiple destinations, encrypted hard drive
Media Handling
Automatic Document Feeder 100 sheets
Media Types Paper (plain, inkjet, photo), envelopes, labels, cards (business, insurance, embossed, plastic ID, credit) [flatbed only]
Multi-Feed Detection Yes, ultrasonic
Media Weight Supported 49-120 gsm
Maximum Scan Area Flatbed: 8.5 x 14" / 21.6 x 35.6 cm
ADF: 8.5 x 34" / 21.6 x 86.4 cm
Connectivity
Interface USB 2.0
Ethernet (10/100/1000)
Hardware Integration Pocket (HIP)
Easy-Access USB port
Processor 1 GHz
Memory 1536 MB
Network Protocols IPv4/IPv6: Apple Bonjour Compatible (Mac OS X 10.2.4 and higher), SNMPv1/v2c/v3, HTTP, HTTPS, FTP, TFTP, WS Discovery, IPsec/Firewall
IPv6: DHCPv6, MLDv1, ICMPv6
IPv4: Auto-IP, SLP, Telnet, IGMPv2, BOOTP/DHCP, and WINS
Security Identity Management: Kerberos, LDAP, 1000-user PIN, Control Panel Lock, optional HP and 3rd party Advanced Authentication Solutions
Network: IPsec, 802.1X authentication (EAP-PEAP, EAP-TLS), SNMPv3, HTTPS, Certificates, Access Control List; Data: Encrypted hard disk (AES128 or better), Encrypted PDF (uses FIPS 140 validated cryptographic module from Microsoft), Encrypted Email, Secure File and Disk Erase, SSL/TLS, Encrypted Credentials
Device: Security lock slot, USB port disablement, HIP pocket for security solutions
Management: Fleet Management with HP Web Jetadmin, HP Digital Sending Software, Embedded Web Server, Administration Application through Front Panel, Import/Export (pins, local address book, speed dials)
Physical
Light Source LED
Front Panel Controls 8" / 20.3 cm HP Easy Select SVGA color touchscreen
LEDs (Ready, Data, Attention)
Buttons (Start, Sleep, Cancel, Reset)
Pull-out keyboard
USB host port
Acoustics Power Emissions
Idle: 4.0 B(A)
Operating: 7.1 B(A)
Certifications ENERGY STAR
Power Requirements 100-240 VAC (±10%), 50/60 Hz (±3%), 2.6 A
Power Consumption Maximum: 70 W
Ready: 37 W
Sleep: 24 W
Off/Standby: <1 W
Operating Conditions Temperature: 50 to 95°F / 10 to 35°C
Humidity: 15 to 80% relative, non-condensing
Storage Conditions Temperature: -40 to 149°F / -40 to 65°C
Humidity: 15 to 80% relative, non-condensing
Dimensions 20.5 x 21 x 12.1" / 52 x 53.3 x 30.8 cm
Weight 44.5 lb / 20.2 kg
Packaging Info
Package Weight 51.0 lb
Box Dimensions (LxWxH) 24.8 x 24.0 x 17.0"
The user manual for the HP Digital Sender Flow 8500 fn1 Document Capture L2719A#BGJ can be downloaded in .pdf format if it did not come with your new flatbed & document scanners, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other HP users keep a unique electronic library for HP flatbed & document scannerss, where you can use our link to download the user manual for the HP Digital Sender Flow 8500 fn1 Document Capture L2719A#BGJ.

The user manual lists all of the functions of the HP Digital Sender Flow 8500 fn1 Document Capture L2719A#BGJ, all the basic and advanced features and tells you how to use the flatbed & document scanners. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from HP service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the HP Digital Sender Flow 8500 fn1 Document Capture L2719A#BGJ. User manuals are also available on the HP website under Photography - Scanners - Flatbed & Document Scanners.
