User manual HP P19A 19" ProDisplay LED Backlit LCD Monitor D2W67A8#ABA

Operating instructions and pdf manual for use - HP P19A 19" ProDisplay LED Backlit LCD Monitor D2W67A8#ABA User manual, User manual HP P19A 19" ProDisplay LED Backlit LCD Monitor D2W67A8#ABA, HP, P19A, 19, ProDisplay, LED, Backlit, LCD, Monitor, D2

User manual for HP P19A 19" ProDisplay LED Backlit LCD Monitor D2W67A8#ABA

HP P19A 19
  • Manufacturer: HP
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your HP
  • Settings and expert assistance
  • Contact HP service
  • Troubleshooting
  • Warranty information
  • Price: 145 USD
We recommend checking out our discussion threads on the HP P19A 19" ProDisplay LED Backlit LCD Monitor D2W67A8#ABA, which address similar problems with connecting and setting up Computer Monitors HP.


User manual for the HP P19A 19" ProDisplay LED Backlit LCD Monitor D2W67A8#ABA

The user manual for the HP P19A 19" ProDisplay LED Backlit LCD Monitor D2W67A8#ABA provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

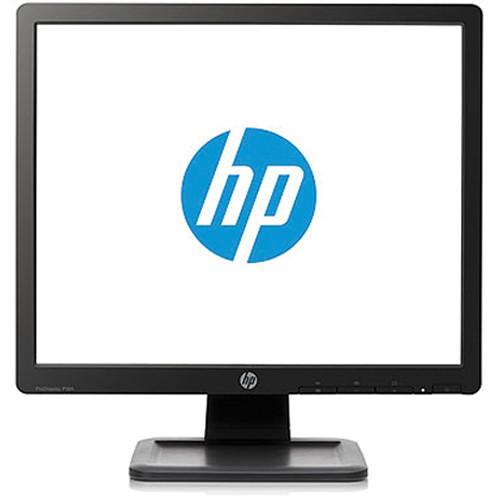

The black P19A 19" ProDisplay LED Backlit LCD Monitor from HP is designed to provide solid performance in a stylish display. With a VGA input and plug-and-play capability, you can easily incorporate this monitor into your current desktop configuration. The 1280 x 1024 resolution coupled with the 1,000,000:1 dynamic contrast ratio help enhance picture quality while the 5 ms response time reduces lag for fast moving videos. Viewing the monitor is also made easier with 170° horizontal and 160° vertical viewing angles.
If you own a HP computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the HP P19A 19" ProDisplay LED Backlit LCD Monitor D2W67A8#ABA in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for HP P19A 19Download user manual for HP P19A 19" ProDisplay LED Backlit LCD Monitor D2W67A8#ABA
(PDF file, 0.93 MB)
Additional parameters of the HP P19A 19" ProDisplay LED Backlit LCD Monitor D2W67A8#ABA:
Specifications
Panel/Display
Type TN (Twisted Nematic) LED Backlit LCD
Diagonal Screen Size 19"
Active Area (WxH) 14.82 x 11.85" (376 x 301 mm)
Viewing Angle Horizontal: Up to 170°
Vertical: Up to 160°
Aspect Ratio (Widescreen) 5:4
Brightness 250 cd/m²

*: All performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower

Static Contrast Ratio 1000:1

*: All performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower

Dynamic Contrast Ratio 1,000,000:1
Response Time 5 ms (on/off)
Pixel Pitch 0.012" (0.294 mm)
Backlight Lamp Life (to Half Brightness) Minimum: 30,000 hours
Color Gamut 72%

*: All performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower

Colors Supported Up to 16.7 million

*: With the use of FRC technology
Signal
Frequency Horizontal: 30 k to 83 kHz
Vertical: 50 to 76 Hz
Native Resolution 1280 x 1024 at 60 Hz
Preset VESA Graphic Modes (Non-Interlaced) 1280 x 1024 at 60 Hz
1280 x 960 at 60 Hz
1024 x 768 at 60 Hz
800 x 600 at 60 Hz
720 x 400 at 60 Hz
640 x 480 at 60 Hz
Maximum Pixel Clock 108 MHz
User Programmable Modes 16
Anti-Glare Glass Yes
Default Color Temperature 11200°F (6200°C)
Connectivity
Plug-and-Play Yes
Analog 1 x VGA
Controls
Buttons OK/Menu, Auto/Minus, Plus, Power
Languages 10 (English, Spanish, German, French, Italian, Netherlands, Portuguese, Japanese, T-Chinese and S-Chinese)
OSD User Controls Brightness, Contrast, Color, Image Control, OSD Control, Management, Language, Information, Factory Reset, Exit
Power
LEDs White: Fully powered
Amber: Sleep mode
Flashing Amber: Sleep Timer mode
Input Voltage 100 to 240 VAC
Power Consumption Maximum: 25 W
Typical: 15 W
Standby: 0.5 W
Environmental
Low Halogen Yes

:* External power supplies, power cords, cables and peripherals are not Low Halogen
Energy Star Yes
EPEAT Gold Yes
TCO Yes
Arsenic-Free Display Glass Yes
Temperature Operating: 41 to 95°F (5 to 35°C)
Non Operating: -4 to 140°F (-20 to 60°C)
Relative Humidity
Operating: 20 to 80% (non-condensing)
Non Operating: 5 to 95%, 101.7°F (38.7°C) max wet-bulb
Altitude Maximum:
Operating: 0 to 16404' (0 to 5000 m)
Non Operating: 0 to 40000' (0 to 12,192 m)
General
Tilt Range -5 to +25°
Detachable Base Yes
Dimensions (WxHxD) With Stand: 16.3 x 16.46 x 8.13" (414 x 418.1 x 207 mm)
Without Stand: 16.3 x 13.7 x 2.3"(414 x 348 x 58 mm)
Weight 7.72 lb (3.5 kg)
Packaging Info
Package Weight 9.35 lb
Box Dimensions (LxWxH) 19.8 x 19.1 x 5.5"
The user manual for the HP P19A 19" ProDisplay LED Backlit LCD Monitor D2W67A8#ABA can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other HP users keep a unique electronic library for HP computer monitorss, where you can use our link to download the user manual for the HP P19A 19" ProDisplay LED Backlit LCD Monitor D2W67A8#ABA.

The user manual lists all of the functions of the HP P19A 19" ProDisplay LED Backlit LCD Monitor D2W67A8#ABA, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from HP service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the HP P19A 19" ProDisplay LED Backlit LCD Monitor D2W67A8#ABA. User manuals are also available on the HP website under Computers & Solutions - Monitors & Displays - Computer Monitors.
