User manual HP P242va 24" Widescreen LED Backlit ProDisplay K7X32A8#ABA

Operating instructions and pdf manual for use - HP P242va 24" Widescreen LED Backlit ProDisplay K7X32A8#ABA User manual, User manual HP P242va 24" Widescreen LED Backlit ProDisplay K7X32A8#ABA, HP, P242va, 24, Widescreen, LED, Backlit, ProDisplay,


User manual for HP P242va 24" Widescreen LED Backlit ProDisplay K7X32A8#ABA

HP P242va 24
  • Manufacturer: HP
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your HP
  • Settings and expert assistance
  • Contact HP service
  • Troubleshooting
  • Warranty information
  • Price: 161 USD
HP P242va 24 HP P242va 24 HP P242va 24 HP P242va 24 HP P242va 24 HP P242va 24 HP P242va 24 HP P242va 24 HP P242va 24

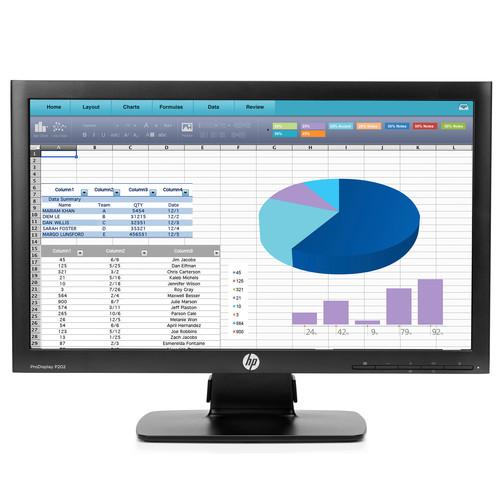

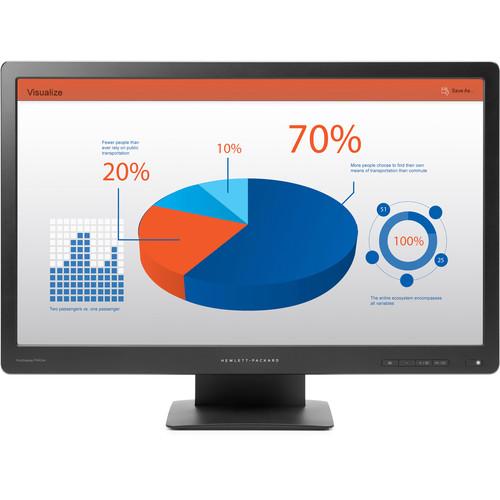

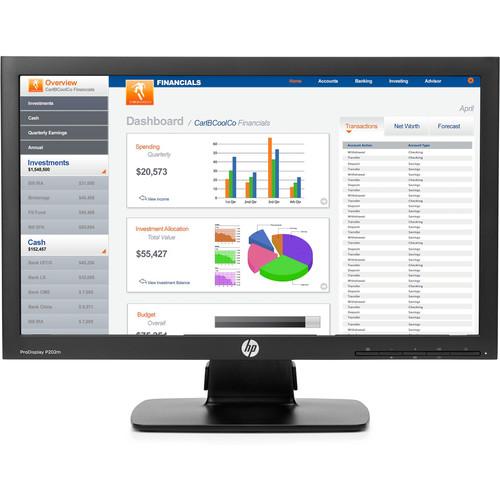

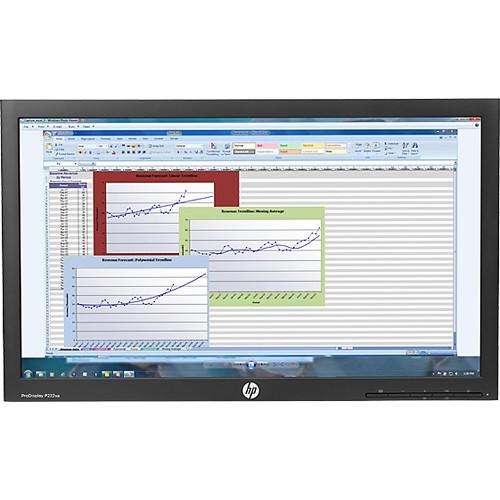

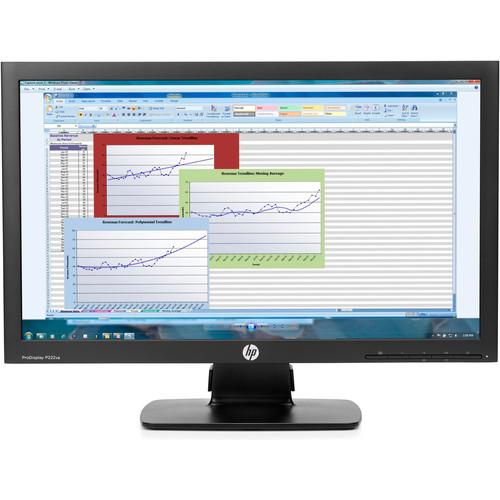

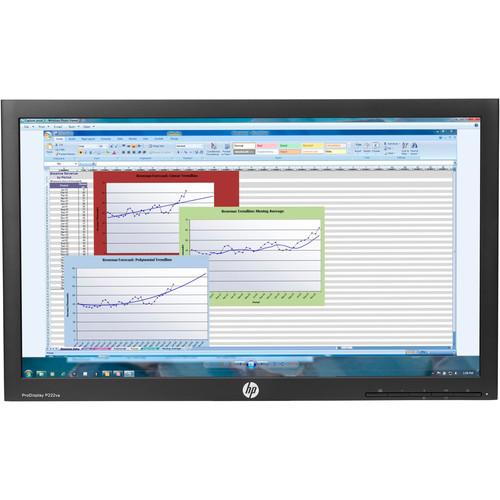

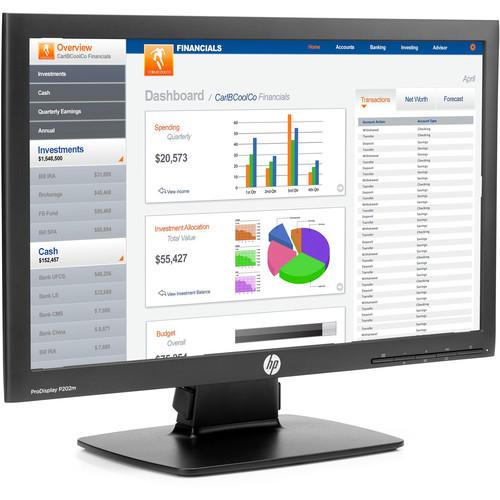

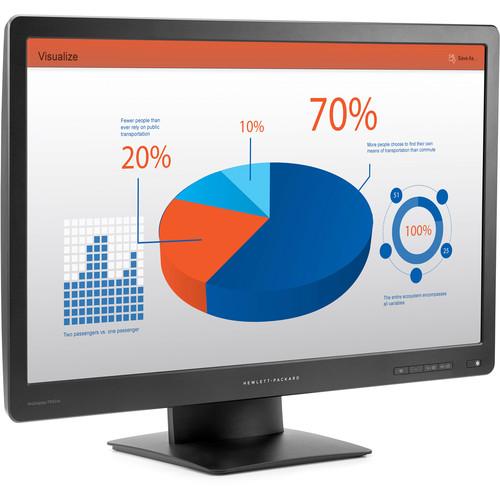

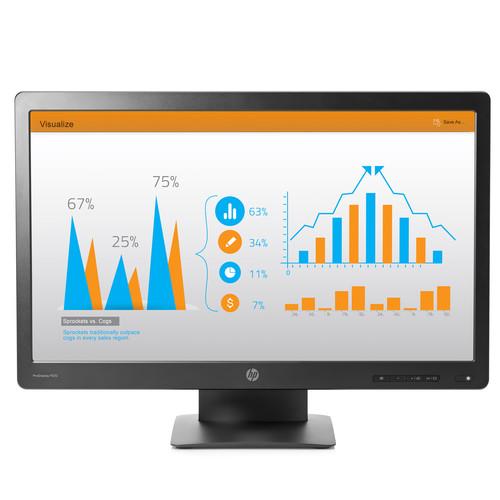

Click to enlarge image

We recommend checking out our discussion threads on the HP P242va 24" Widescreen LED Backlit ProDisplay K7X32A8#ABA, which address similar problems with connecting and setting up Computer Monitors HP.



User manual for the HP P242va 24" Widescreen LED Backlit ProDisplay K7X32A8#ABA

The user manual for the HP P242va 24" Widescreen LED Backlit ProDisplay K7X32A8#ABA provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

Designed to work with the HP Pro PC, the P242va 24" Widescreen LED Backlit ProDisplay Monitor from HP has the tools needed to streamline your workflow. With a 1920 x 1080 resolution you receive a crisp, clear picture, while the enhanced 3,000:1 contrast ratio provides a more dynamic picture with deeper darks and brighter light colors. You also benefit from a 250 cd/m² brightness rating, and a 8 ms response time for reduced ghosting when viewing videos. Setup and configuration is simple with VGA, DisplayPort 1.2, and HDMI inputs making it easy to plug this monitor into a variety of computer configurations.
If you own a HP computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the HP P242va 24" Widescreen LED Backlit ProDisplay K7X32A8#ABA in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for HP P242va 24Download user manual for HP P242va 24" Widescreen LED Backlit ProDisplay K7X32A8#ABA
(PDF file, 1.11 MB)
Additional parameters of the HP P242va 24" Widescreen LED Backlit ProDisplay K7X32A8#ABA:
Specifications
Display Size 24" / 60.96 cm
Display Type VA w/ LED backlight
Panel Active Area 20.91 x 11.76" / 531.36 x 298.89 mm
Viewing Angles (H/V) 178°/178°
Brightness 250 cd/m²
Contrast Ratio Static: 3,000:1
Dynamic: 5,000,000:1
Response Time 8 ms GtG
Aspect Ratio 16:9
Resolution 1920 x 1080
Resolutions Supported 1920 x 1080; 1680 x 1050; 1600 x 900; 1440 x 900; 1280 x 1024; 1280 x 720; 1024 x 768; 800 x 600; 720 x 400; 640 x 480
Display Features Anti-glare, Language selection, On-screen controls, Plug-and-Play, User programmable
Input Signal 1 x VGA
1 x DisplayPort 1.2 (with HDCP support)
1 x HDMI (with HDCP support)
Input Power 100 to 240 VAC
Power Consumption 32 W (maximum), 25 W (typical), 0.5 W (standby)
Operating Temperature 41 - 95°F / 5 - 35°C
Operating Humidity 20 to 80% RH
Environmental Arsenic-free display glass, Mercury-free display backlights, and Low halogen
Tilt -5 to 22°
VESA Compatibility 100 x 100 mm
Dimensions With Stand: 22.46 x 7.53 x 16.40" / 57.12 x 19.12 x 41.64 cm
Without Stand: 22.60 x 2.16 x 14.00" / 57.12 x 5.50 x 35.55 cm
Weight With Stand: 7.94 lb / 3.60 kg
Packaging Info
Package Weight 11.4 lb
Box Dimensions (LxWxH) 25.0 x 17.0 x 6.0"
The user manual for the HP P242va 24" Widescreen LED Backlit ProDisplay K7X32A8#ABA can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other HP users keep a unique electronic library for HP computer monitorss, where you can use our link to download the user manual for the HP P242va 24" Widescreen LED Backlit ProDisplay K7X32A8#ABA.

The user manual lists all of the functions of the HP P242va 24" Widescreen LED Backlit ProDisplay K7X32A8#ABA, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from HP service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the HP P242va 24" Widescreen LED Backlit ProDisplay K7X32A8#ABA. User manuals are also available on the HP website under Computers & Solutions - Monitors & Displays - Computer Monitors.
