User manual HP Pavilion 27xw 27" IPS LED Backlit Monitor J7Y63AA#ABA

Operating instructions and pdf manual for use - HP Pavilion 27xw 27" IPS LED Backlit Monitor J7Y63AA#ABA User manual, User manual HP Pavilion 27xw 27" IPS LED Backlit Monitor J7Y63AA#ABA, HP, Pavilion, 27xw, 27, IPS, LED, Backlit, Monitor, J7Y63AA#


User manual for HP Pavilion 27xw 27" IPS LED Backlit Monitor J7Y63AA#ABA

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
HP Pavilion 27xw 27
  • Manufacturer: HP
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your HP
  • Settings and expert assistance
  • Contact HP service
  • Troubleshooting
  • Warranty information
  • Price: 270 USD
We recommend checking out our discussion threads on the HP Pavilion 27xw 27" IPS LED Backlit Monitor J7Y63AA#ABA, which address similar problems with connecting and setting up Computer Monitors HP.



User manual for the HP Pavilion 27xw 27" IPS LED Backlit Monitor J7Y63AA#ABA

The user manual for the HP Pavilion 27xw 27" IPS LED Backlit Monitor J7Y63AA#ABA provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

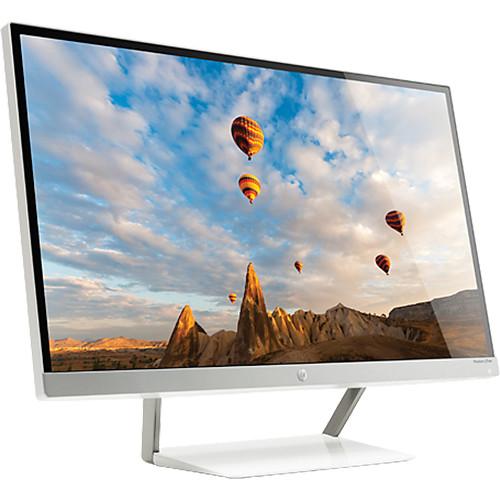

The snow white/natural silver Pavilion 27xw 27" IPS LED Backlit Monitor from HP features a native full HD resolution of 1920 x 1080 as well as a 8 ms response time to help reduce lag and blur for fast moving videos and movies. The 10,000,000:1 dynamic contrast ratio allows for enhanced dynamic picture quality with 250 cd/m² brightness. You can connect this monitor to a variety of computers via the VGA, or HDMI port with HDCP support. It provides consistent high-color fidelity with In-Plane Switching (IPS) technology.
If you own a HP computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the HP Pavilion 27xw 27" IPS LED Backlit Monitor J7Y63AA#ABA in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for HP Pavilion 27xw 27Download user manual for HP Pavilion 27xw 27" IPS LED Backlit Monitor J7Y63AA#ABA
(PDF file, 1.06 MB)
Additional parameters of the HP Pavilion 27xw 27" IPS LED Backlit Monitor J7Y63AA#ABA:
Specifications
    General
    Panel Type: 27" (68.6 cm) IPS with LED Backlight
    Active Area: 23.5 x 13.2" (597.8 x 336.3 mm)
    Anti-Glare Panel: Low Haze
    Viewing Angle 178°/178°
    Color Gamut 72%
    Colors Supported Up to 16.7 million colors supported through FRC technology
    Resolution 1920 x 1080 at 60 Hz
    Contrast Ratio Static: 1,000:1
    Dynamic: 10,000,000:1
    Brightness 250 cd/m2
    Connectors 1 x VGA
    2 x HDMI
    HDCP support
    Pixel Pitch 0.311 x 0.311 mm
    82 PPI
    Response Time 8 ms (GtG)
    Tilt -2 to 25°
    Languages Supported German, Simplified Chinese, Traditional Chinese, Japanese, English, Spanish, French, Italian, Netherlands, Brazilian Portuguese
    Software Compatibility HP My Display: Partition screen for multiple windows
    User Controls User programmable modes: 10
    Monitor Control Buttons:
    Main Menu, Next or Enter, Select/OK
    Brightness, Minus/Down, Quick View Menu
    AUTO, Plus/Up, Quick View
    Next Input, Back/Cancel/Exit
    Power
    Electrical
    Power Supply External:
    100 to 240 VAC
    50/60 Hz
    Power Consumption 32 W
    Energy Saving Mode 0.5 W
    Environmental
    LED Backlight Mercury-free
    Display Glass Arsenic-Free
    Low Halogen
    Standards and Certifications
    Certifications Microsoft WHQL Certification (Windows 8.1/7)
    Technicolor Certified
    ENERGY STAR 6.0 certified
    EPEAT Silver registered
    Dimensions 17.9 x 24.5 x 6.5" (45.5 x 62.2 x 16.5 cm)
    Weight 12.3 lb (5.6 kg)
    Packaging Info
    Package Weight 16.8 lb
    Box Dimensions (LxWxH) 28.0 x 19.5 x 6.0"
    The user manual for the HP Pavilion 27xw 27" IPS LED Backlit Monitor J7Y63AA#ABA can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other HP users keep a unique electronic library for HP computer monitorss, where you can use our link to download the user manual for the HP Pavilion 27xw 27" IPS LED Backlit Monitor J7Y63AA#ABA.

    The user manual lists all of the functions of the HP Pavilion 27xw 27" IPS LED Backlit Monitor J7Y63AA#ABA, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from HP service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the HP Pavilion 27xw 27" IPS LED Backlit Monitor J7Y63AA#ABA. User manuals are also available on the HP website under Computers & Solutions - Monitors & Displays - Computer Monitors.
