User manual HP ProDisplay P19A 19" LED Backlit TN LCD D2W67AA#ABA
Operating instructions and pdf manual for use - HP ProDisplay P19A 19" LED Backlit TN LCD D2W67AA#ABA User manual, User manual HP ProDisplay P19A 19" LED Backlit TN LCD D2W67AA#ABA, HP, ProDisplay, P19A, 19, LED, Backlit, TN, LCD, D2W67AA#ABA,
User manual for HP ProDisplay P19A 19" LED Backlit TN LCD D2W67AA#ABA
We recommend checking out our discussion threads on the HP ProDisplay P19A 19" LED Backlit TN LCD D2W67AA#ABA,
which address similar problems with connecting and setting up Computer Monitors HP.
User manual for the HP ProDisplay P19A 19" LED Backlit TN LCD D2W67AA#ABA
The user manual for the HP ProDisplay P19A 19" LED Backlit TN LCD D2W67AA#ABA provides
necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

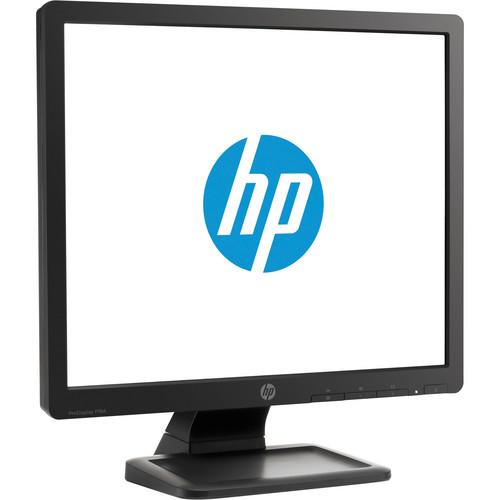

The ProDisplay P19A 19" LED Backlit TN LCD Monitor from HP offers ample workspace for multiple applications. It features a 1280 x 1024 @ 60 Hz native resolution, 170° (H) and 160° (V) viewing angles, a 5:4 aspect ratio, 250 cd/m2 brightness, 1,000:1 static and 1,000,000:1 dynamic contrast ratios, and 5 ms response time. The monitor offers VGA input connectivity and is ENERGY STAR, EPEAT Gold, and TCO certified. It is also equipped with eco-friendly features such as arsenic-free display glass, a mercury-free LED display, and a low halogen design.
If you own a HP computer monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the HP ProDisplay P19A 19" LED Backlit TN LCD D2W67AA#ABA in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the HP ProDisplay P19A 19" LED Backlit TN LCD D2W67AA#ABA:
Specifications
Panel Type
TN (Twisted Nematic) with LED backlight
Viewable Image Area
19.0" (48.3 cm) diagonally measured
Aspect Ratio
5:4
Viewing Angle
Horizontal: 170° Vertical: 160°
Brightness
250 cd/m2*
Contrast Ratio
Static: 1,000:1 Dynamic: 1,000,000:1*
Response Rate
5 ms (on/off)*
Note: *: All performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.
Tilt
-5 to +25°
Native Resolution
1280 x 1024 @ 60 Hz
Resolutions Supported
640 x 480 @ 60 Hz 720 x 400 @ 70 Hz 800 x 600 @ 60 Hz 1024 x 768 @ 60 Hz 1280 x 960 @ 60 Hz 1280 x 1024 @ 60 Hz
Input Signal
VGA
Frequency
Horizontal: 30 to 83 kHz Vertical: 50 to 76 Hz
Glass
Arsenic-free display glass
User Controls
Ok/menu, auto/minus, plus, and power
VESA Mounting
100 x 100 mm
Power Consumption
Maximum: 25 W Typical: 15 W Power Saving: 0.5 W
Environmental
Operating: 41 to 95°F (5 to 35°C) Non-operating: -34 to 140°F (-36 to 60°C)
Certification and Compliance
CB, CE, TCO, CCC, CEL 1, CECP, BSMI, S-Mark, VCCI, FCC, CSA, GS mark, ICES, C-Tick, e-Standby, ENERGY STAR certified, EPEAT Gold (select regions)
Dimensions (WxHxD)
Item: 16.3 x 16.5 x 8.1" (41.4 x 41.8 x 20.6 cm) Head Only: 16.3 x 13.7 x 2.3 (41.4 x 34.7 x 5.8 cm)
The user manual for the HP ProDisplay P19A 19" LED Backlit TN LCD D2W67AA#ABA can be downloaded in .pdf
format if it did not come with your new computer monitors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other HP users keep a unique electronic library
for HP computer monitorss,
where you can use our link to download the user manual for the HP ProDisplay P19A 19" LED Backlit TN LCD D2W67AA#ABA.
The user manual lists all of the functions of the HP ProDisplay P19A 19" LED Backlit TN LCD D2W67AA#ABA,
all the basic and advanced features and tells you how to use the computer monitors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from HP service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the HP ProDisplay P19A 19" LED Backlit TN LCD D2W67AA#ABA. User manuals are also
available on the HP website under Computers & Solutions - Monitors & Displays - Computer Monitors.
