User manual for HP Z Display Z24i 24" Widescreen LED Backlit D7P53A4#ABA
- Manufacturer: HP
- Basic description and contents of package
- Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
- Safety instructions
- Startup and operation of the computer monitors
- Tips for setting up your HP
- Settings and expert assistance
- Contact HP service
- Troubleshooting
- Warranty information
- Price: 499 USD
|
We recommend checking out our discussion threads on the HP Z Display Z24i 24" Widescreen LED Backlit D7P53A4#ABA,
which address similar problems with connecting and setting up Computer Monitors HP.
|
User manual for the HP Z Display Z24i 24" Widescreen LED Backlit D7P53A4#ABA
The user manual for the HP Z Display Z24i 24" Widescreen LED Backlit D7P53A4#ABA provides
necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

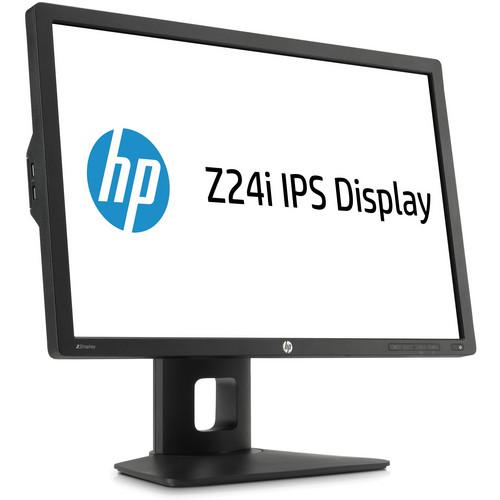

The black Z Display Z24i 24" Widescreen LED Backlit IPS Monitor from HP provides image accuracy, adjustability and reliability optimized for commercial environments. Built with IPS Gen 2 panels, this display offers power savings over first generation IPS technology and extra-wide viewing angles. Additionally, you can easily connect devices with convenient VGA, DVI and DisplayPort inputs and the integrated USB hub. It also reduces power consumption and helps lower costs with an intelligent, energy-efficient design that is ENERGY STAR qualified and EPEAT Gold registered.
|
If you own a HP computer monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the HP Z Display Z24i 24" Widescreen LED Backlit D7P53A4#ABA in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the HP Z Display Z24i 24" Widescreen LED Backlit D7P53A4#ABA:
| Type | IPS Gen 2, LED backlit | | Display Size | 24.0" (60.9 cm), (diagonally measured) | | Panel Active Area | 20.40 x 12.75" (51.81 x 32.38 cm) | | Aspect Ratio | 16:10, widescreen | | Native Resolution | 1920 x 1200 @ 60 Hz | | Resolutions Supported (Non-Interlaced) | 640 x 480 @ 60Hz
720 x 400 @ 70 Hz
800 x 600 @ 60 Hz
1024 x 768 @ 60 Hz
1280 x 720 @ 60 Hz
1280 x 800 @ 60 Hz
1280 x 1024 @ 60 Hz
1440 x 900 @ 60 Hz
1600 x 1200 @ 60 Hz
1680 x 1050 @ 60 Hz
1920 x 1080 @ 60 Hz | | Horizontal Frequency | 24 to 94 kHz | | Vertical Frequency | 50 to 76 Hz | | Brightness | Typical: 300 cd/m2 | | Dynamic Contrast Ratio | Typical: 5,000,000:1 | | Contrast Ratio | Typical: 1000:1 | | Viewing Angle | Typical: Up to 178° (horizontal)/178° (vertical) (10:1 minimum contrast ratio) | | Response Time | Typical: 8 ms (gray to gray) | | Pixel Pitch | 0.270 mm | | Tilt Range | Vertical: -5 to +30° | | Swivel Range | 45° left to 45° right | | Height Adjustable | 0 to 4.7" (0 to 120.0 mm) | | Pivot Rotation | Yes | | Backlight Lamp Life | Minimum: 30,000 hours (to half brightness) | | Color Support | 16.7 million (with the use of FRC technology) | | Ports | 5 x USB 2.0 (upstream: 1, downstream: 4) | | Input Connectors | 1 x VGA
1 x DisplayPort 1.2 (1.1 compatible)
1 x DVI-D
HDCP support on DisplayPort and DVI | | Buttons or Switches | Menu, Minus (-), Plus (+) /Input, OK/Auto, Power | | Languages | 10 (English, Spanish, German, French, Italian, Dutch, Portuguese, Japanese, T-Chinese, and S-Chinese) | | On Screen Display (OSD) User Controls | Brightness, Contrast, Color, Image Control, OSD Control, Management, Language, Information, Factory Reset, Input Control | | Power Supply | Internal | | Input Power | 90 to 265 VAC at 45 to 63 Hz | | Consumption | ENERGY STAR: 25.4 W
Default: 36 W
Maximum: 55 W
Sleep/Off Mode Power: > 0.5 W | | Temperature | Operating Temperature: 41 to 95°F (5 to 35°C)
Non-Operating Temperature: -4° to +140°F (-20 to +60°C) | | Humidity | Operating Humidity: 20 to 80% (non-condensing)
Non-Operating Humidity: 5 to 95%, 101.6°F (38.7°C) maximum wet-bulb | | Display Features | Plug and Play
Anti-glare
Arsenic-free display glass
Low halogen
Mercury-free display backlighting
White LED Backlights | | Physical Security | Security lock-ready | | VESA Mounting | 100 mm (one set of standard 4-hole pattern) | | Certification and Compliance | CE, CB, KC, KCC, NOM, PSB, ICE, TUV-S, CCC, TCO Certified, CEL Grade 1, CECP, SEPA, EPA, ISC, VCCI, FCC, HSMI, Microsoft WHQL certification (Windows 8 and Windows 7), ENERGY STAR qualified, EPEAT Gold | | Dimensions (WxHxD) | With Stand: 22.02 x 20.67 x 9.37" (55.93 x 52.50 x 23.79 cm)
Without Stand: 22.02 x 14.37 x 2.54" (55.93 x 36.49 x 6.54 cm) | | Weight | With Stand: 15.35 lb (6.96 kg)
Without Stand: 10.43 lb (4.73 kg) | | Package Weight | 15.3 lb | | Box Dimensions (LxWxH) | 22.0 x 20.7 x 9.4" | |
The user manual for the HP Z Display Z24i 24" Widescreen LED Backlit D7P53A4#ABA can be downloaded in .pdf
format if it did not come with your new computer monitors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other HP users keep a unique electronic library
for HP computer monitorss,
where you can use our link to download the user manual for the HP Z Display Z24i 24" Widescreen LED Backlit D7P53A4#ABA.
The user manual lists all of the functions of the HP Z Display Z24i 24" Widescreen LED Backlit D7P53A4#ABA,
all the basic and advanced features and tells you how to use the computer monitors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from HP service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the HP Z Display Z24i 24" Widescreen LED Backlit D7P53A4#ABA. User manuals are also
available on the HP website under Computers & Solutions - Monitors & Displays - Computer Monitors.
