User manual HP Z Display Z30i 30" Widescreen LED Backlit D7P94A4#ABA

Operating instructions and pdf manual for use - HP Z Display Z30i 30" Widescreen LED Backlit D7P94A4#ABA User manual, User manual HP Z Display Z30i 30" Widescreen LED Backlit D7P94A4#ABA, HP, Z, Display, Z30i, 30, Widescreen, LED, Backlit, D7P94A4#


User manual for HP Z Display Z30i 30" Widescreen LED Backlit D7P94A4#ABA

HP Z Display Z30i 30
  • Manufacturer: HP
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your HP
  • Settings and expert assistance
  • Contact HP service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the HP Z Display Z30i 30" Widescreen LED Backlit D7P94A4#ABA, which address similar problems with connecting and setting up Computer Monitors HP.



User manual for the HP Z Display Z30i 30" Widescreen LED Backlit D7P94A4#ABA

The user manual for the HP Z Display Z30i 30" Widescreen LED Backlit D7P94A4#ABA provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

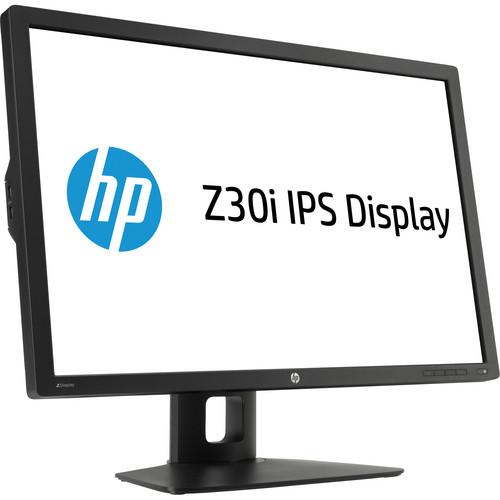

The black Z Display Z30i 30" Widescreen LED Backlit IPS Monitor from HP provides image accuracy, adjustability, and reliability optimized for commercial environments. The monitor delivers power savings over first-generation IPS technology. This monitor offers a screen resolution of up to 2560 x 1600, 178° (H) / 178° (V) viewing angles, 1000:1 static and 5000000:1 dynamic contrast ratios, an 8 ms response time, as well as 350 cd/m2 of brightness. Connect devices with DisplayPort, DVI, VGA, and HDMI inputs, as well as through an integrated USB hub. The monitor also comes with eco-friendly features such as arsenic-free display glass, mercury-free LED backlights, and a low halogen design. It is ENERGY STAR, EPEAT Gold, and TCO certified.
If you own a HP computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the HP Z Display Z30i 30" Widescreen LED Backlit D7P94A4#ABA in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for HP Z Display Z30i 30Download user manual for HP Z Display Z30i 30" Widescreen LED Backlit D7P94A4#ABA
(PDF file, 2.05 MB)
Additional parameters of the HP Z Display Z30i 30" Widescreen LED Backlit D7P94A4#ABA:
Panel/Display
Type LED Backlit IPS Gen 2
Viewable Image Area 29.8" (75.7 cm), widescreen (diagonally measured)
Screen Mode WQXGA
Aspect Ratio 16:10
Native Resolution 2560 x 1600 @ 60 Hz
Supported Resolution 640 x 480 @ 60 Hz
720 x 400 @ 70 Hz
800 x 600 @ 60 Hz
1024 x 768 @ 60 Hz
1280 x 720 @ 60 Hz
1280 x 800 @ 60 Hz
1280 x 1024 @ 60 Hz
1366 x 768 @ 60 Hz
1440 x 900 @ 60 Hz
1600 x 900 @ 60 Hz
1600 x 1200 @ 60 Hz
1680 x 1050 @ 60 Hz
1920 x 1080 @ 60 Hz
1920 x 1200 @ 60 Hz
2560 x 1440 @ 60 Hz
2560 x 1600 @ 60 Hz
Brightness 350 cd/m2
Contrast Ratio (Typical) Static: 1000:1
Dynamic: 5000000:1
Viewing Angle Horizontal: 178°
Vertical: 178°
Frequency Horizontal: 31 to 80 kHz (VGA)
24 to 98 kHz (DVI/DisplayPort/HDMI)
Vertical: 60 to 70 Hz (VGA)
50 to 70 Hz (DVI/DisplayPort/HDMI)
Response Time 8 ms (gray to gray)
Tilt -5 to +20°
Swivel ±45°
Pivot Rotation 90°
Height Adjustable 4.7" (12.0 cm)
Input Connectors 1 x VGA
1 x DisplayPort 1.2 (with HDCP support)
1 x DVI-D (with HDCP support)
1 x HDMI 1.4 (with HDCP support)
Ports 5 x USB 3.0 hub (with 1x upstream and 4 x downstream ports)
Black Stretch Technology Integrated
Multimedia Audio output connector for an HP Speaker Bar (HP Speaker Bar sold separately)
Glass Arsenic-free display glass
Low Halogen Yes
User Controls Menu, Minus (-), Plus (+)/Input Control, Ok/Auto, and Power
Display Features Plug-and-play
Anti-glare
User programmable
Language selection
On-screen controls
Pixel Pitch 0.250 mm
Physical Security Security lock-ready
Cable Management Yes
Stand Adjustable: 4-way
VESA Mount 100 x 100 mm
Power
Power Consumption ENERGY STAR: 49.9 W
Maximum: 125 W
Typical: 85 W
Standby: > 0.5 W
Power Requirement Input Voltage: 100 to 250 VAC at 50/60 Hz
Environmental Operating: 41 to 95°F (5 to 35°C) Non-operating: -4 to 140°F (-20 to 60°C)
Certifications
Green Compliant Yes
Green Compliance Certificate/Authority CE, CB, CEL Grade 1, KC, KCC, NOM, PSB, ICE, TUV-S, CCC, CECP, SEPA, TCO 6.0 certification, EPA, ISC, VCCI, FCC, HSMI, Microsoft WHQL certification (Windows 8 and Windows 7), ENERGY STAR certified, EPEAT Gold
General
Platform Supported PC
Dimensions (WxHxD) With Stand: 27.2 x 23.7 x 10.5" (69.1 x 60.2 x 26.7 cm)
Without Stand: 27.2 x 17.7 x 2.6" (69.1 x 45.0 x 6.6 cm)
Weight With Stand: 22.0 lb (10.0 kg)
Without Stand: 16.7 lb (7.6 kg)
Packaging Info
Package Weight 22.0 lb
Box Dimensions (LxWxH) 27.2 x 23.7 x 10.5"
The user manual for the HP Z Display Z30i 30" Widescreen LED Backlit D7P94A4#ABA can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other HP users keep a unique electronic library for HP computer monitorss, where you can use our link to download the user manual for the HP Z Display Z30i 30" Widescreen LED Backlit D7P94A4#ABA.

The user manual lists all of the functions of the HP Z Display Z30i 30" Widescreen LED Backlit D7P94A4#ABA, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from HP service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the HP Z Display Z30i 30" Widescreen LED Backlit D7P94A4#ABA. User manuals are also available on the HP website under Computers & Solutions - Monitors & Displays - Computer Monitors.
