User manual HP Z230 Series F1M25UT Turnkey Workstation with 5TB HDD and

Operating instructions and pdf manual for use - HP Z230 Series F1M25UT Turnkey Workstation with 5TB HDD and User manual, User manual HP Z230 Series F1M25UT Turnkey Workstation with 5TB HDD and, HP, Z230, Series, F1M25UT, Turnkey, Workstation, with,

User manual for HP Z230 Series F1M25UT Turnkey Workstation with 5TB HDD and

HP Z230 Series F1M25UT Turnkey Workstation with 5TB HDD and
  • Manufacturer: HP
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Desktops & Workstations - PC Workstations
  • Safety instructions
  • Startup and operation of the pc workstations
  • Tips for setting up your HP
  • Settings and expert assistance
  • Contact HP service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the HP Z230 Series F1M25UT Turnkey Workstation with 5TB HDD and, which address similar problems with connecting and setting up PC Workstations HP.


User manual for the HP Z230 Series F1M25UT Turnkey Workstation with 5TB HDD and

The user manual for the HP Z230 Series F1M25UT Turnkey Workstation with 5TB HDD and provides necessary instructions for the proper use of the product Computers & Solutions - Desktops & Workstations - PC Workstations.

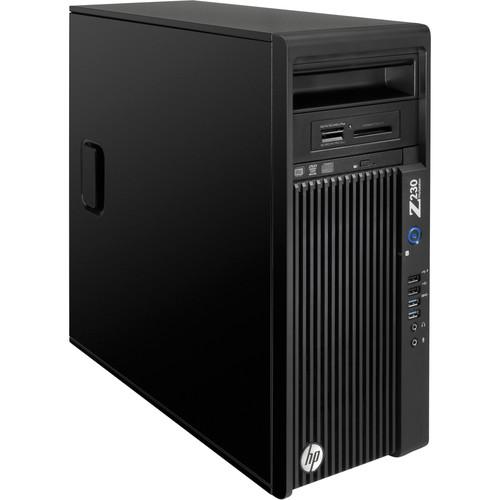

This B&H Kit combines the HP Z230 F1M25UT Tower Workstation with an 16GB memory module, a 5TB 3.5" 7200 rpm SATA III hard drive, an HP 15-in-1 internal media card reader, a 7-pin 180 to 90° 18" SATA cable, and B&H installation services. This HP Z230 workstation is powered by a 3.6 GHz Intel Core i7-4790 Quad-Core processor. This system features two internal drives - a 256GB SATA SSD and a 5TB 3.5" 7200 rpm SATA III hard drive, for a total storage capacity of 5.256TB. An 8x SuperMulti DVD Burner is also built into this system for reading and writing data stored on optical media. While the installed operating system is Windows 7 Pro (64-bit), a Windows 8.1 Pro (64-bit) license is also included and is available at no additional cost.

For delivering sharp, clear graphics, this workstation uses integrated Intel HD Graphics 4600. Video may be output to an external display using the 2 x DisplayPort and 1 x DVI outputs. Other external peripherals may be connected to this system using the 4 x USB 3.0 ports and 6 x USB 2.0 ports. Network connectivity may be achieved using the Gigabit Ethernet port and a USB keyboard and mouse is also included.

So that the included hard drive may be connected to the motherboard, a SATA cable is included. The included HP 15-in-1 media card reader natively supports 15 memory card types and by using a separately sold adapter, it can support 20 memory card types. This turnkey workstation also includes B&H professional installation; these services allow your system and additional components to be ready for use upon arrival.

Supported Media Types
  • CompactFlash Type I
  • CompactFlash Type II
  • Microdrive
  • Secure Digital card (SD)
  • Secure Digital High Capacity (SDHC)
  • SD Extended Capacity memory card (SDXC)
  • SD Ultra High Speed II (SD UHSII)
  • Memory Stick
  • Memory Stick Select
  • Memory Stick Duo (MS Duo)
  • Memory Stick PRO (MS PRO)
  • Memory Stick PRO Duo (MS PRO Duo)
  • Memory Stick PRO-HG Duo
  • MagicGate Memory Stick (MG)
  • MagicGate Memory Stick Duo

    Supported Media Types with Card Adapter
  • Memory Stick Micro (M2)
  • miniSD
  • miniSD High Capacity
  • Micro SD memory card (MicroSD)
  • Micro SD High Capacity memory card (MicroSDHC)
    • If you own a HP pc workstations and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

    You can upload and download the manual for the HP Z230 Series F1M25UT Turnkey Workstation with 5TB HDD and in the following formats:
    • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
    Additional parameters of the HP Z230 Series F1M25UT Turnkey Workstation with 5TB HDD and:
    Specifications
    • HP Z230 F1M25UT Tower Workstation
      Performance
      Processor 3.6 GHz Intel Core i7-4790 Quad-Core
      Cache L3: 8 MB
      System Bus 5 GT/s
      Chipset Socket: FCLGA1150
      Type: Intel C226
      Memory Slots: 4x DIMM 240-Pin
      Type: PC3-12800 1600 MHz DDR3 SDRAM
      Installed: 16 GB (2x8 GB)
      Capacity: 32 GB
      Graphics Card Type: Integrated
      Installed: Intel HD Graphics 4600DDR3 SDRAM Shared
      Storage
      Hard Drive Installed: 256 GB (1x 256 GB SSD)
      Type: SATA
      Optical Drive Tray-Load SuperMulti DVD Burner with Dual Layer Support
      Drive Bay Expansion Quantity: 2
      Size: 3.5"
      Type: Internal
      Quantity: 1
      Size: 2.5"
      Type: Internal
      Quantity: 3
      Size: 5.25"
      Type: External
      PCI Expansion Quantity: 2
      Type: PCIe x16
      Quantity: 1
      Type: PCIe x4
      Quantity: 1
      Type: PCIe x1
      Quantity: 1
      Type: PCI
      Inputs/Outputs
      Ports 4x USB 3.0 (A)
      6x USB 2.0 (A)
      2x PS/2
      Display 2x DisplayPort
      1x DVI-I
      Audio 1/8" (3.5 mm) Microphone Input
       1/8" (3.5 mm) Line In
       1/8" (3.5 mm) Line Out
      Integrated Monaural Speaker
      Flash Media Slot None
      Communications
      Network 1x 10/100/1000 Mbps Gigabit Ethernet (RJ-45)
      Wi-Fi None
      Bluetooth None
      Keyboard & Mouse
      Keyboard Type: Full-Size
      Features: Numeric Keypad
      Mouse USB
      General
      Operating System Windows 7 Professional (64-bit)
      Power Supply 400 W
      Dimensions (WxHxD) 6.7 x 15.7 x 17.4" / 17.0 x 39.9 x 44.2 cm
      Weight 19.4 lb / 8.80 kg Exact weight depends upon configuration
      Packaging Info
      Box Dimensions (LxWxH) 23.6 x 19.7 x 11.6"
    • WD 5TB Blue 3.5" Hard Drive
      Specifications
      Formatted Capacity 5TB
      Interface SATA 6 Gb/s
      Advanced Format (AF) Yes
      Form Factor 3.5"
      RoHS Compliant Yes
      Performance
      Data Transfer Rate (max) Buffer to Host: 6 Gb/s
      Host to/from Drive (sustained): 170 MB/s
      Cache 64 MB
      Rotational Speed 5,400 rpm
      Reliability / Data Integrity
      Load/Unload Cycles 300,000
      Non-Recoverable Read Errors per Bits Read <1 in 1014
      Power Management
      12 VDC ±10% (Peak) 1.75 A
      Average Power Requirements Read/Write: 5.3 W
      Idle: 3.4 W
      Standby/Sleep: 0.4 W
      Environmental Specifications
      Temperature Operating: 32 to 140°F / 0 to 60°C
      Non-Operating: -40 to 158°F / -40 to 70°C
      Shock Operating (2 ms, write): 30 Gs
      Operating (2 ms, read): 65 Gs
      Non-Operating (2 ms): 250 Gs
      Acoustics Idle: 25 dBA
      Seek (average): 28 dBA
      Dimensions & Weight
      Dimensions 1.028 x 5.787 x 4.000" / 2.611 x 14.699 x 10.160 cm (width ± 0.01" / 0.03 cm)
      Weight 1.65 lb / 0.75 kg (± 10%)
      Packaging Info
      Box Dimensions (LxWxH) 8.9 x 6.2 x 3.0"
    • HP 15-in-1 USB 3.0 5.25/3.25" Internal Media Card Reader
      Interface USB 3.0 (backwards compatible with USB 2.0)
      Form Factor 5.25" / 3.5" Internal
      Compatible Operating Systems Windows 8.1 (64-bit), 8 Pro (64-bit), 8 (64-bit), 7 Ultimate (32 and 64-bit), 7 Professional (32 and 64-bit), 7 Home Basic, 7 Home Premium (32 and 64-bit), Vista Business 64 and 32, Vista Home Basic 32, XP Professional, XP Home 32

      No driver is required for this device. Native support is provided by the operating system
      Dimensions 4.9 x 4.0 x 1.0" / 12.4 x 10.2 x 2.5 cm
      Weight 0.35 lb / 0.16 kg
      Packaging Info
      Box Dimensions (LxWxH) 10.158 x 8.347 x 4.016"
    • C2G 7-pin 180- to 90-Degree 1-Device Serial ATA Cable - 18"
      Cable Type SATA / Serial ATA
      Length 18" (45.7 cm)
      Weight 0.04 lb (0.02 kg)
      Supported Transfer Speed Up to 6.0 Gbps
      Ideal Application Handling differential signals in today's technology, while delivering greater throughput and less data packet loss
      Cable
      Conductors 26 AWG tinned copper
      Gauge Not specified by manufacturer
      Shielding Thermoplastic Al. Mylar
      Dielectric (Insulation) FM-PE+Skin
      Jacket Standard rating
      Color Red
      Connectors
      Connector 1 7-pin Serial ATA Female
      Connector 2 7-pin Serial ATA Female
      Shielding Not specified by manufacturer
      Contacts Phosphor bronze
      Body Not specified by manufacturer
      Interface Required SATA 3.0
      Standards Certification UL
      Packaging Info
      Box Dimensions (LxWxH) 6.0 x 3.9 x 0.9"
    • B&H Photo Video Computer Component Upgrade Installation
      Packaging Info
      Box Dimensions (LxWxH) 1.0 x 1.0 x 1.0"
    The user manual for the HP Z230 Series F1M25UT Turnkey Workstation with 5TB HDD and can be downloaded in .pdf format if it did not come with your new pc workstations, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other HP users keep a unique electronic library for HP pc workstationss, where you can use our link to download the user manual for the HP Z230 Series F1M25UT Turnkey Workstation with 5TB HDD and.
